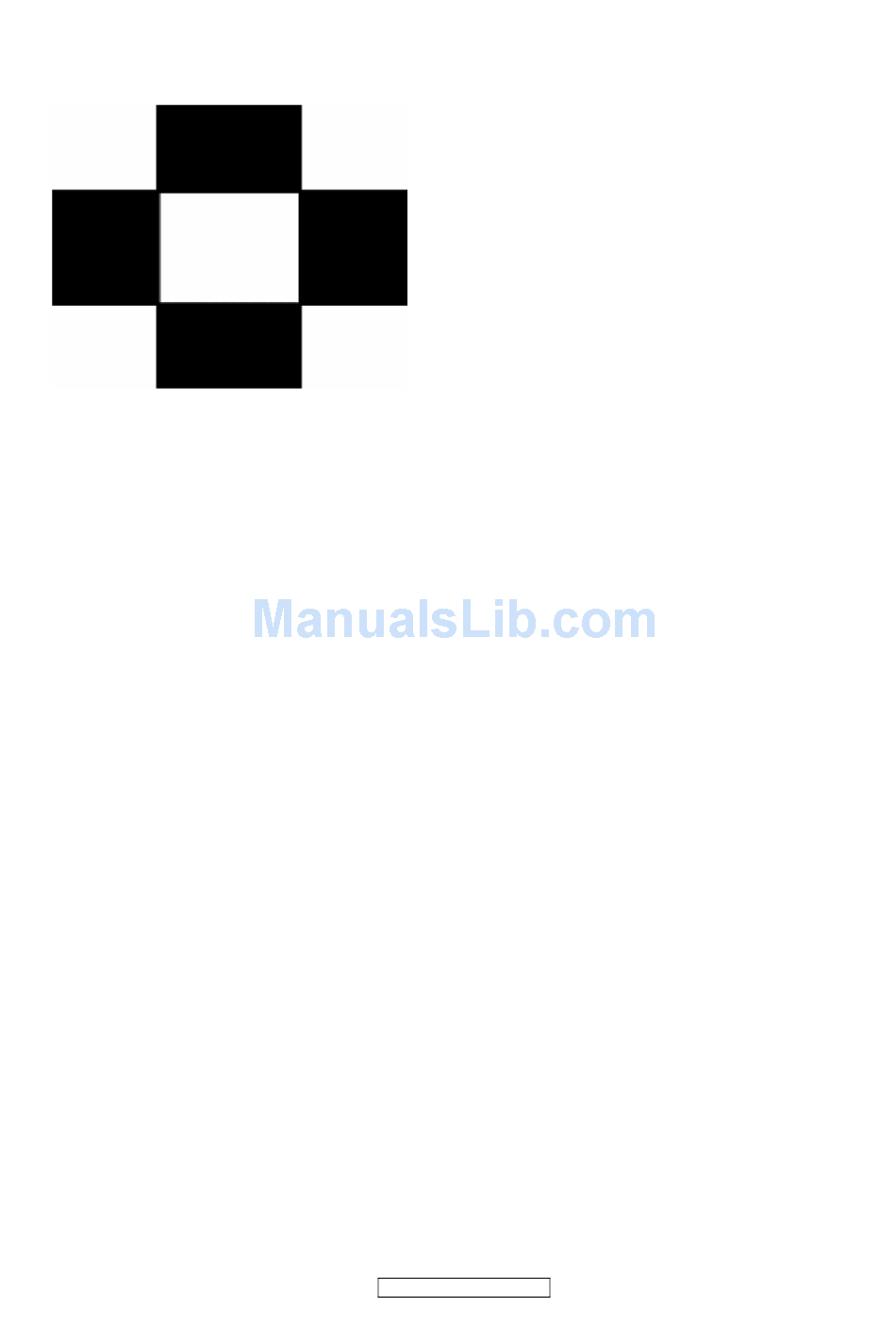

Black-White Pattern (Figure 9)

4.3 Function Test and Alignment Procedure

All Modes Reset

You should do "All Mode Reset" (Refer to Chapter III-3. Hot Keys for Function
Controls) first. This action will allow you to erase all end-user's settings and restore
the factory defaults.

Auto Image Adjust

Please select and enter "Auto Image Adjust" function on Main Menu to see if it is
workable. The "Auto Image Adjust" function is aimed to offer a better screen quality
by built-in ASIC. For optimum screen quality, the user has to adjust each function
manually.

Firmware

Test Pattern: Burn In Mode (Refer to Chapter III-3. Hot Keys for Function Controls)
- Make sure the F/W is the latest version.
DDC
Test Pattern: EDID program
Make sure it can pass test program.
Fine Tune and Sharpness
Test Signal: 1680*1050@60Hz
Test Pattern: Line Moire Pattern
Check and see if the image has noise and focus performs well. Eliminate visual
line bar.
If not, readjust by the following steps:
(a)Select and enter "Fine Tune" function on "Manual Image Adjust" to adjust the
image to eliminate visual wavy noise.
(b)Then, select and enter "Sharpness" function to adjust the clarity and focus of
the screen image.
Boundary
Test Signal: 1680*1050@60Hz
Test Pattern: Horizontal & Vertical Line Thickness Pattern
Check and see if the image boundary is within the screen frame.
If not, readjust by the following steps:
(a)Select and enter "Manual Image Adjust" function on OSD Main Menu.
(b)Then, select and enter "Horizontal Size" or "Horizontal/Vertical Position" function
to adjust the video boundary to be full scanned and within screen frame.
