Making the Connections

Before connecting any cables, make sure that the
computer and monitor are turn off.

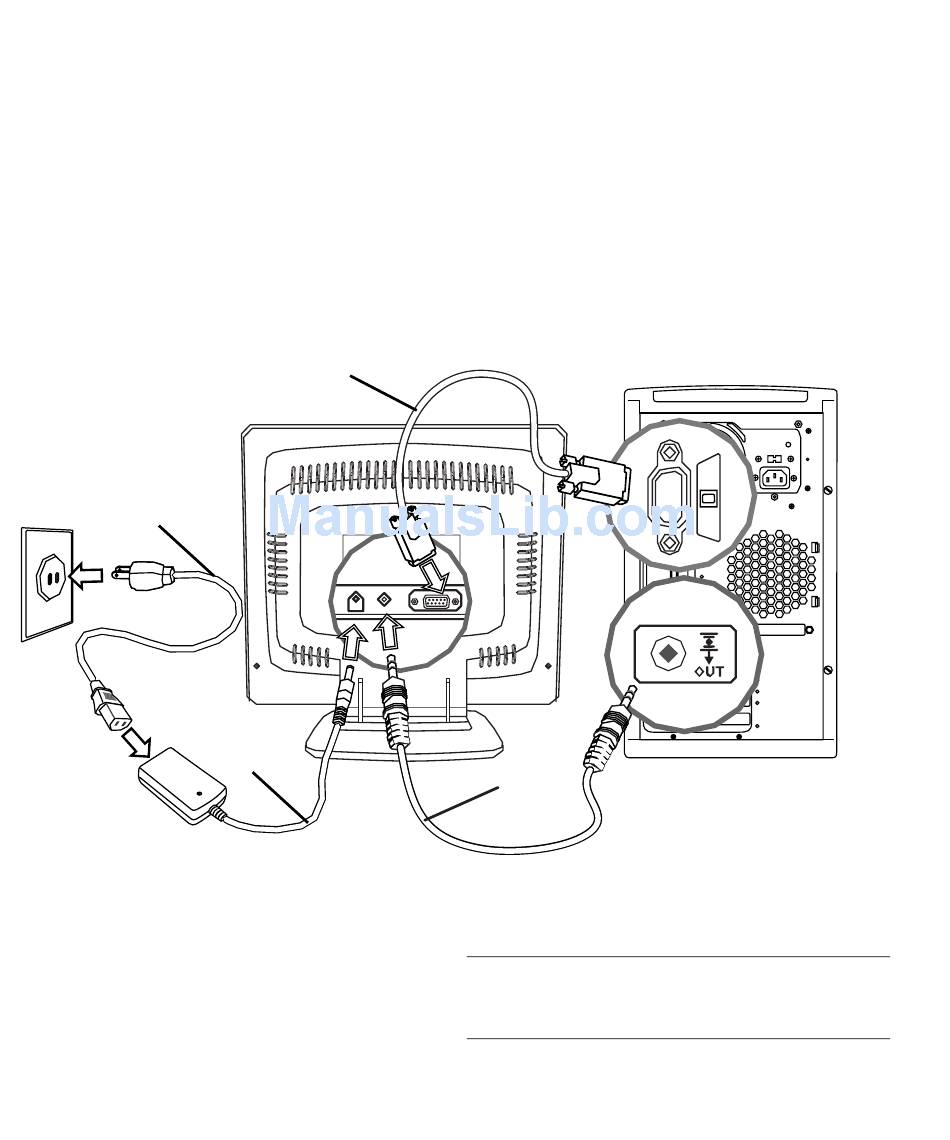

To connect the monitor:
1 Locate the following items:
AC power adapter with the attached DC power
cable (A) and separate power cord (B).
Analog video signal cable (C).
Audio cable (D).
2 Plug the AC power adapter DC power cable (A)
into the power jack on the back of the monitor.
B
3 Plug the separate (two-prong) power cord (B) into
the AC power adapter (A), and then into the
power source.
4 Plug the analog video signal cable (C) into the
Analog Video Input port on the back of the
monitor, and then into your computer video port
(blue VGA connector). (Please check your
computer documentation for the video port
location.)
4
user's guide
C
A
D
5 Plug the audio cable (D) to the Audio jack on the
back of the monitor, and then into the computer
audio out port (green connector).
NOTE:
For best display performance, it is strongly
recommended that you use Auto Setup to
automatically configure the monitor settings.
