Block Diagram - Compaq CRT Monitor s7500 Service Manual

Color monitor
Hide thumbs Also See for CRT Monitor s7500:
Table of Contents

Advertisement

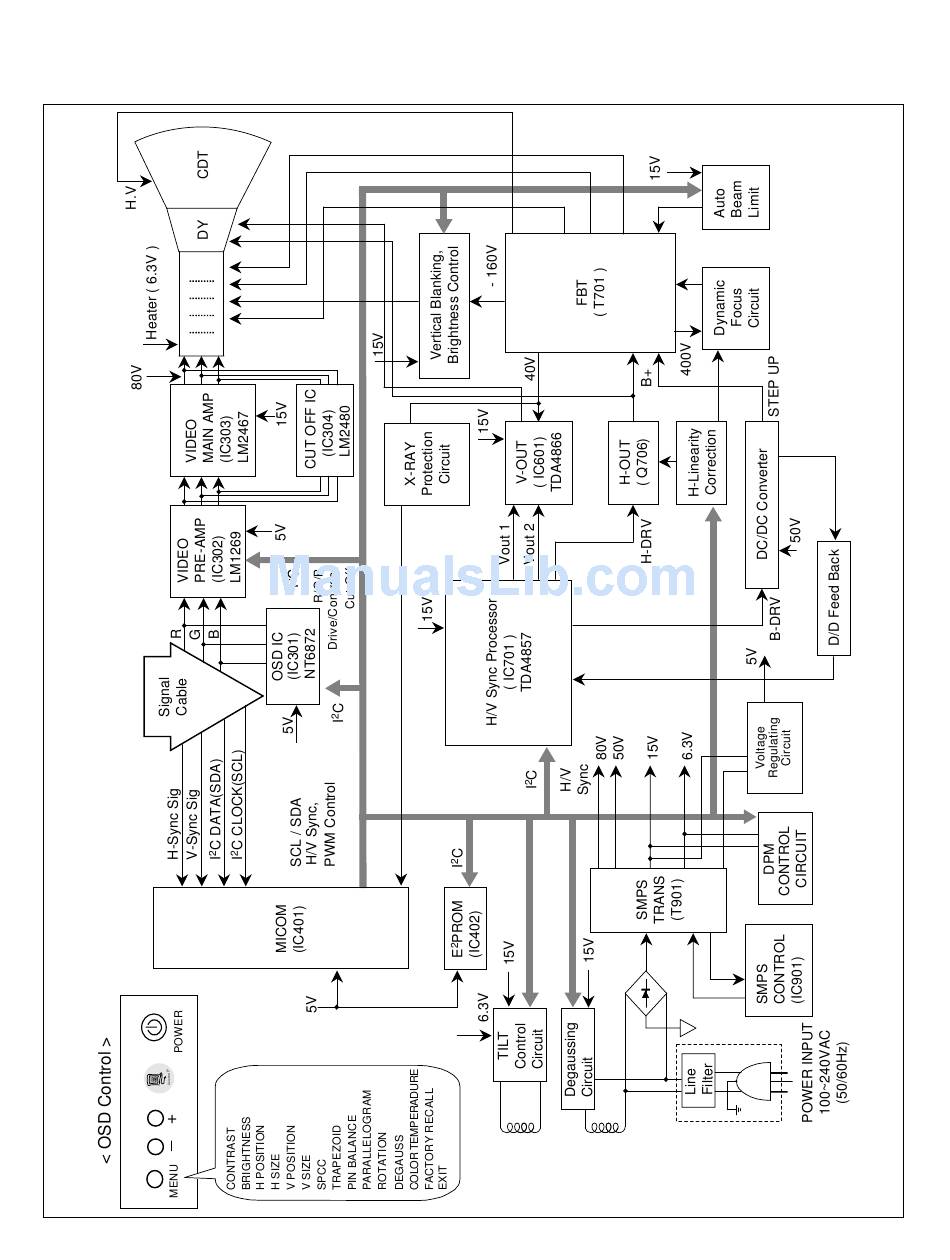

BLOCK DIAGRAM

Dynamic Focus
Static Focus
G1
Screen(G2)
COIL
COIL
TILT
DEGAUSSING
- 7 -
