4

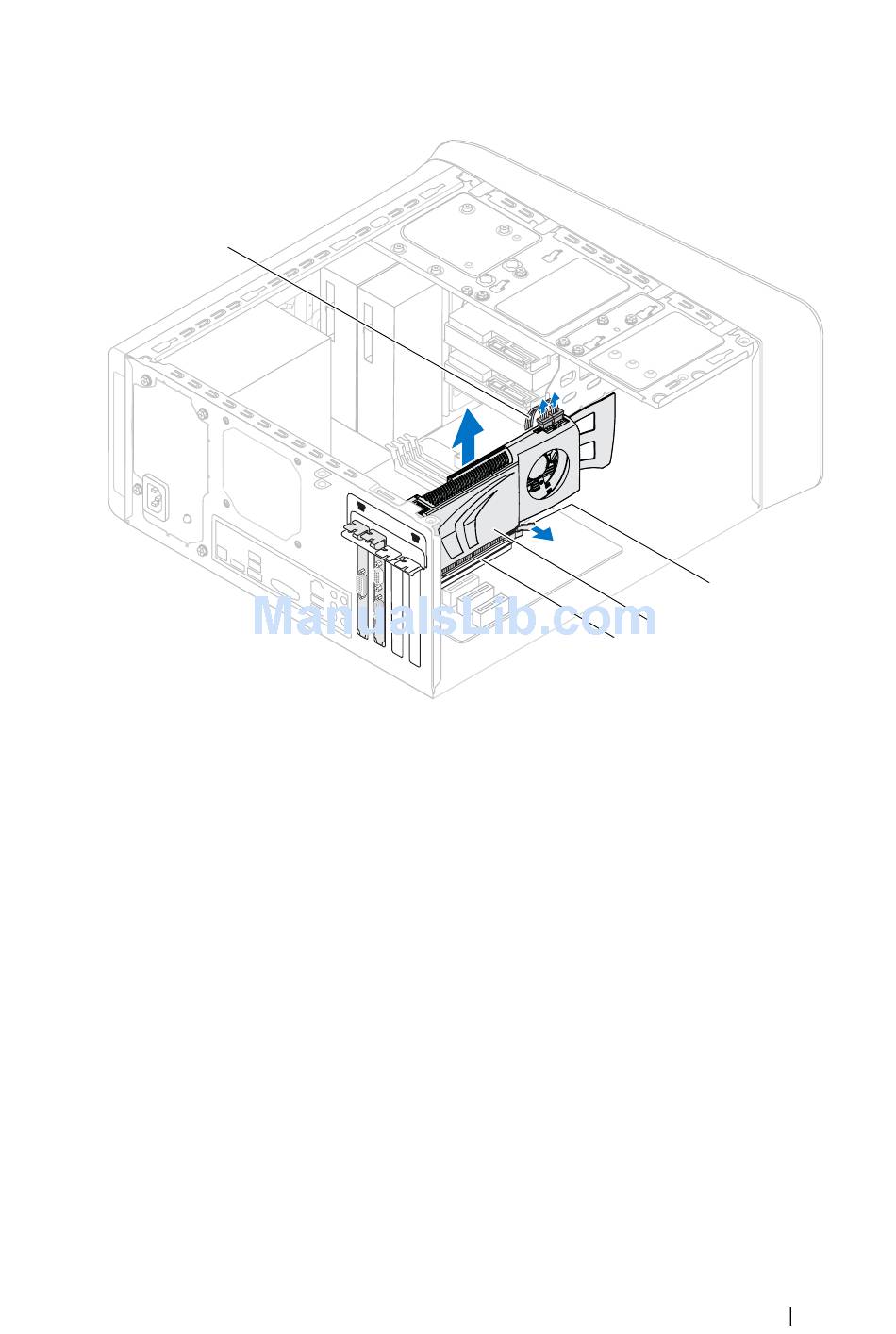

1 PCI-Express x16 connector
3 securing tab

Replacing the Graphics Card

1 Align the graphics card with the PCI-Express x16 card connector on the
system board.
2 Place the card in the connector and press down firmly. Ensure that the card
is firmly seated in the slot.
3 Connect the power cable to the graphics card, if applicable.
4 Replace the card-retention bracket, ensuring that:
• The guide clamp is aligned with the guide notch.
• The top of all cards and filler brackets are flush with the alignment bar.
• The notch on top of the card or filler bracket fits around the
alignment guide.
2 graphics card
4 power cable
3
2
1
Graphics Card
39
