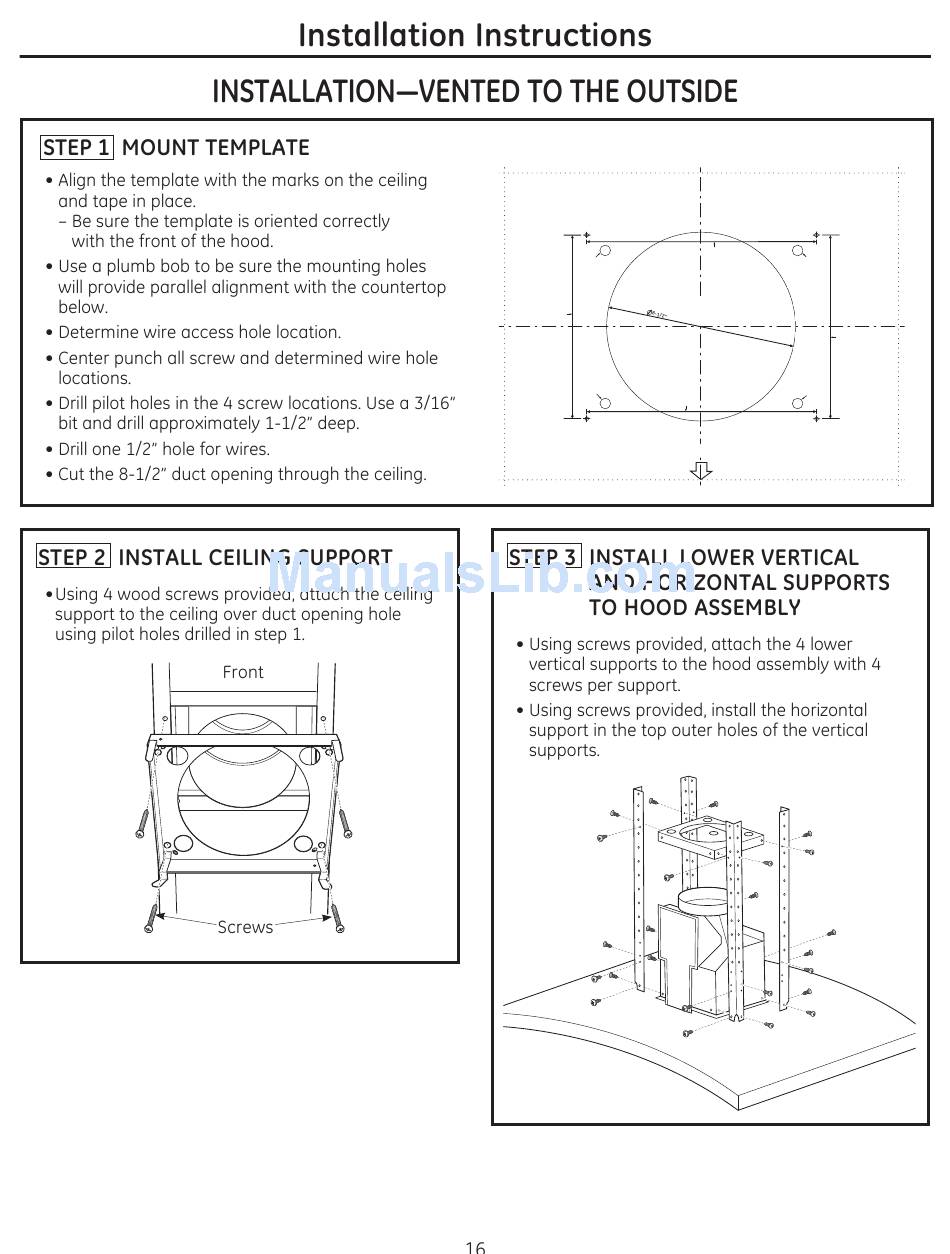

Installation - Vented To The Outside; Mount Template; Install Ceiling Support - GE PV977NSS Owner's Manual

10-5/16" To
Centerline of
Cut one 1/2" Dia. Pilot Holes
Wire Access Hole
as Needed
36" HOOD
8-1/4" To
TEMPLATE
Centerline of
Pilot Holes
Cut one 1/2" Dia.
Wire Access Hole 10-5/16" To
as Needed
Centerline of
Pilot Holes
FRONT OF HOOD
Drill 3/16" Pilot Holes
Approx. 1-1/2" Deep
4 Places
Cut one 1/2" Dia.
Wire Access Hole
as Needed
8-1/4" To
Centerline of
Pilot Holes
Cut one 1/2" Dia.
Wire Access Hole
as Needed
