Operating Instructions
Tumble dryer
Save these instructions for future reference
Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and ful ll your needs
for many years to come. Scandinavian design combines clean
lines, everyday functionality, and high quality. These are key
characteristics of all our products and the reason they are
greatly appreciated throughout the world.
To ensure that you get the most out of your new machine, we
recommend that you read the operating instructions before
using the machine. The operating instructions also contain
information on how to avoid damaging the environment.

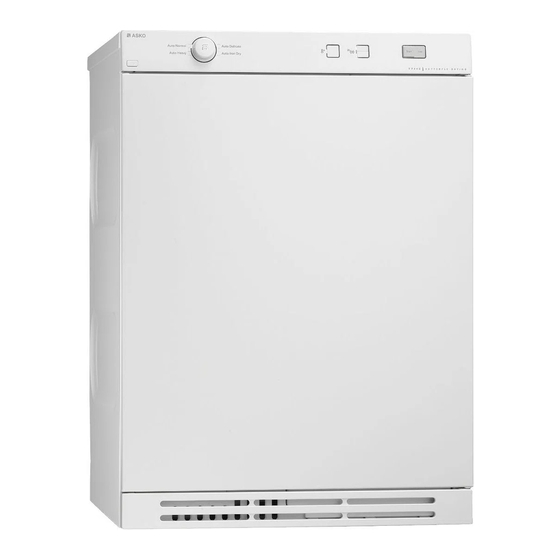

ASKO T744
Advertisement
Table of Contents
Related Manuals for Asko T744
Summary of Contents for Asko T744
-
Page 1: Tumble Dryer
Tumble dryer Save these instructions for future reference Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and ful ll your needs for many years to come. Scandinavian design combines clean lines, everyday functionality, and high quality. -
Page 2: Table Of Contents
Contents Before using your machine for Installation instructions the first time Positioning the tumble dryer Important safety instructions Adjusting the feet Grounding instructions Built-in Packing material Air exhaust Disposal Electrical installation Child safety Reversing the door General Follow these instructions: Description of the tumble dryer Quick guide Advice and tips before you... -
Page 3: Before Using Your Machine For The First Time
Before using your machine for the first time Do you need this Use&Care Guide in Spanish? Log on to www.askousa.com/customer-care to download. ¿Necesita esta Instrucciones de uso y cuidado en español? Entre en www.askousa.com/customer-care y descárguesela. Laundry labels Certain materials are not suitable for tumble drying. -
Page 4: Important Safety Instructions
WARNING! accumulation of lint, dust and dirt. • The interior of the machine should be cleaned periodically by an authorized ASKO service WARNING - To reduce the risk of fire, electric agent. shock, or injury to persons when using your •... -
Page 5: Grounding Instructions
Important safety instructions B) Grounding instructions for a Grounding instructions permanently connected appliance: A) Grounding instructions for a grounded, This appliance must be connected to a grounded cord-connected appliance metal, permanent wiring system, or an In the event of malfunction or breakdown, equipment-grounding conductor must be run with grounding will reduce the risk of electric shock by the circuit conductors and connected to the... -
Page 6: Child Safety
Child safety General WARNING! Do not allow children to play with the tumble dryer. • If the door is opened when a program is running, the garments may be very hot, with a risk of burn injuries. • The tumble dryer does not start automatically when the door is closed (if a child pulls the door shut from the inside, for example). -
Page 7: Description Of The Tumble Dryer
Description of the tumble dryer Main power switch Lint filter Panel Outer door Serial number tag and rating plate Customer Care Center 1-800-898-1879 www.askousa.com... -
Page 8: Advice And Tips Before You Tumble Dry
Advice and tips before you tumble dry Here are some tips that may help you before you Static electricity begin tumble drying. To reduce the risk of static electricity in the laundry Have the clothes been spun? after tumble drying, you can: •... -
Page 9: Operating Instructions
Operating instructions WARNING! To reduce the risk of electric shock or injury to persons, read the "Important Safety Instructions" section before operating this appliance. Below are step-by-step instructions to help you achieve the best possible tumble drying results. Sort your fabrics You will achieve the most uniform drying results if the items are made of the same type of material. -
Page 10: Select The Program
Operating instructions Select the program Program selector Selection buttons Main power switch Start Stop Select a program by turning the program selector. An LED lights next to the selected program. Use the option buttons to select any options. Guidelines as to what specific programs Auto Normal and Auto Delicate can be used for:... -
Page 11: Program Chart
Operating instructions Program chart Here we present the energy and time consumption of a few different programs. The table shows the effect of using different spin speeds when washing the load. Consumption can vary depending on room temperature, humidity, load, variations in the power supply, and selected options. For the consumption values given below, the requirements are as follows: Temperature of intake air: 73 °F (23 °C) -
Page 12: Selecting Options
Operating instructions Selecting Options Drying program finished By selecting options, you can tailor a drying The six lights around the Start and Stop program to suit your requirements. The buttons light when the program is finished. available options depend on the selected NOTE! program. -
Page 13: Care And Maintenance Instructions
Care and maintenance instructions Cleaning the lint filter Cleaning the outside of the machine The lint filter must be cleaned after each load. The Clean the outside of the machine and the program filter can either be removed from its holder in the panel with a mild cleaner. -
Page 14: Troubleshooting
Troubleshooting The machine will not start Drying takes too long • Check that the lint filter is not blocked. See the Check "Care and maintenance instructions" chapter. • that the door is properly closed. • that the main power switch is on. Error messages •... -
Page 15: Technical Information
Technical information Technical data Height: 33 1/2'' (850 mm) Width: 23 1/2'' (597 mm) Depth: 23 7/8" (606mm) Weight: 95 lb (43 kg) Cylinder volume: 29,6 gal (112 l) Max. drying capacity: 15 lb (7 kg) Speed: 50-55 rpm Rated power: See serial number tag and rating plate. -
Page 16: Service And Guarantee
For residential installations only ASKO Appliances Inc. will pay for: Length of warranty Two-Year Full ASKO replacement parts and/or repair labor to correct defect in materials or workmanship. Service must be From date of purchase. provided by an authorized ASKO service agent. - Page 17 Service and guarantee Warranty How to contact ASKO Appliances Inc. ASKO Appliances Inc. will not pay for: Write to us at: • Service calls to: ASKO Appliances Inc. 1. Correct the installation of the appliance. P.O. Box 940609 2. Repair damage due to shipment, delivery, Plano, TX 75094-0609 installation, misuse or abuse.
-
Page 18: Installation Instructions
Installation instructions Stacking WARNING! The tumble dryer can be placed on top of a ASKO washing machine. Use the two foot cups found in the document bag included with the machine and WARNING - Risk of fire. the two tip guards attached to the bottom left Install the clothes dryer according to the corner of the back of the machine. - Page 19 Installation instructions 3. Secure the anti-tip device using the screws as 6. Push out the knock-out hole on the back of the shown in the picture. tumble dryer (you don't have to completely remove the knockout, just fold it up far enough for the stacking bracket to fit inside the slot) using a hammer and a screwdriver.
-
Page 20: Adjusting The Feet
34-1/2” (876 mm). Hole measurements are from center of hole. Built-in ASKO dryers can be installed beneath a cabinet or worktop with a minimum height of 34” (864 mm). There must be a gap of about 1/2” (12 mm) -
Page 21: Air Exhaust
Installation instructions Install in a closet Air exhaust ASKO's front panel controls make it possible to Connecting the exhaust duct to the dryer install the washers and dryers in a closet. Make NOTE! sure there is a ½” (12mm) minimum clearance between units and cabinet or wall. - Page 22 Installation instructions To connect the exhaust duct to the rear Connecting the exhaust duct to the Left outlet or Right Side Outlet To connect the exhaust duct to the rear outlet, To connect the exhaust duct to the left or right follow the steps below:.
- Page 23 Installation instructions Connecting to a ventilation duct To connect the exhaust duct to a ventilation outlet, follow the steps below: You will need a UL-CSA-approved, 4-inch ridged 1. Connect the exhaust duct to a ventilation metal exhaust duct. If a flexible duct is used, it exhaust fitting or to a discharge through the must comply with the Outline for Clothes Dryer wall.
-
Page 24: Electrical Installation
If local codes do not permit ASKO washers rated 208–240 V have two grounding through the neutral, the grounding link internal fuses of 15 A each. - Page 25 Installation instructions Connecting a 3-wire Power Cord 5. Connect ground (center) wire of power supply cord to the center, silver-colored terminal screw. Tighten screw. WARNING! 6. Connect the other wires to outer screws. 7. Tighten the strain relief screws. Before starting this procedure, be sure the power 8.
- Page 26 Installation instructions 5. Remove ground wire (green with yellow stripes) from external ground connector screw and remove from center terminal block. 6. Connect ground (green) wire of cord to external ground conductor screw. 7. Connect neutral (white) wire of cord under center screw of terminal block.
-
Page 27: Reversing The Door
Reversing the door Hinge pins (top and bottom) Lock hook Cover washer Hinges (left + right side) Plastic plugs (on the upper Toe kick and lower edges) Customer Care Center 1-800-898-1879 www.askousa.com... -
Page 28: Follow These Instructions
Reversing the door You can choose whether the door is hung on the 6. Move the plastic plugs on the upper and lower right or the left. edges of the door. Use a flat screwdriver to remove the plugs. Follow these instructions: 7. - Page 29 Notes Customer Care Center 1-800-898-1879 www.askousa.com...
- Page 30 Notes Customer Care Center 1-800-898-1879 www.askousa.com...
- Page 31 Notes Customer Care Center 1-800-898-1879 www.askousa.com...
-
Page 32: Quick Guide
Quick guide Fabrics Select a program and any • Dry fabrics of the same type together to options ensure they dry as evenly as possible. • Turn the program selector to the desired program. Turn on the main power switch •...
