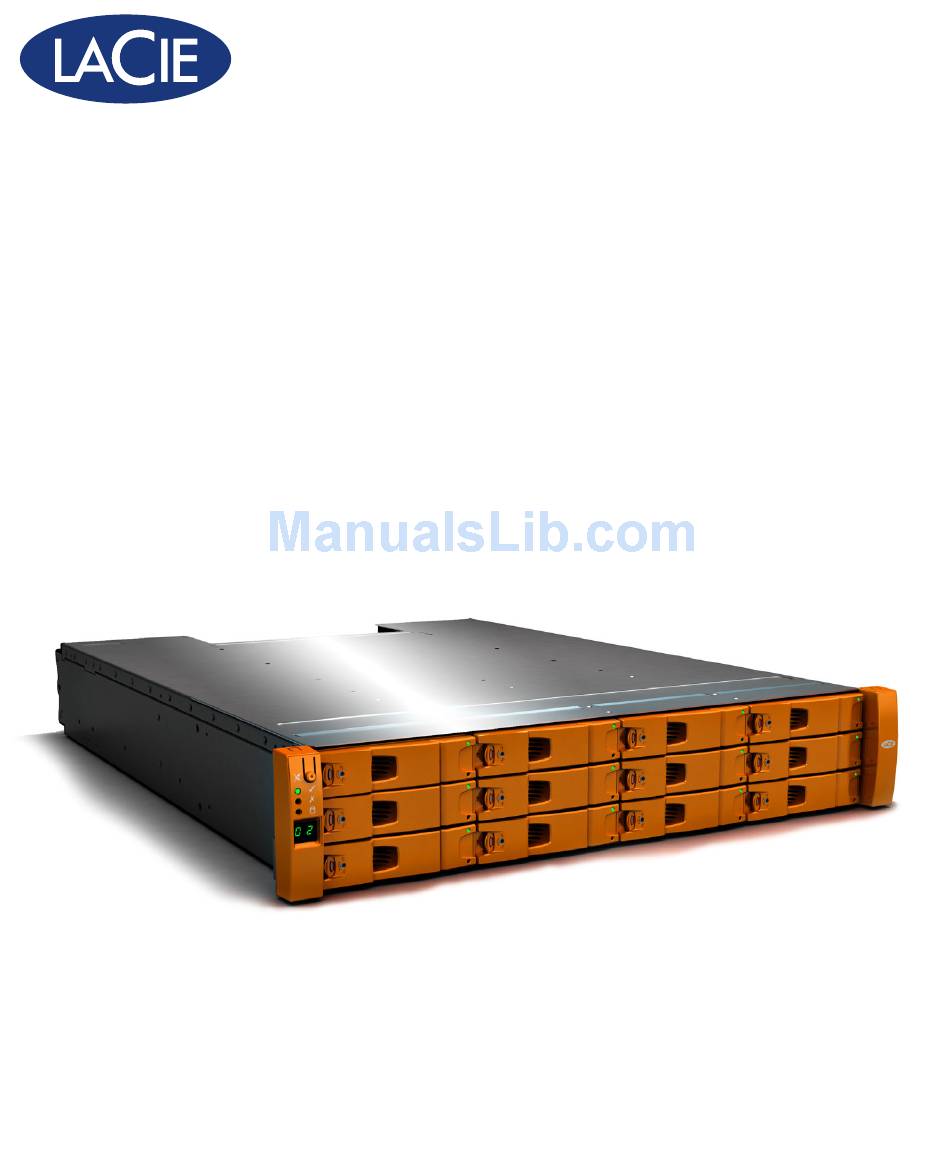

- Page 1 12big Rack Serial 2 Quick Install Guide...
-
Page 2: Safe Handling
1.1. Safe Handling ƒ A LaCie 12big Rack Serial 2 enclosure can weigh up to 26kg (57lb). Do not try to lift it by yourself. ƒ Do not lift the enclosure by the handles on the PCMs. They are not designed to take the weight. -
Page 3: Rack System Precautions
It is recommended that you fit and check a suitable anti-static wrist or ankle strap and observe all conventional ESD precautions when handling plug-in modules and components. Avoid contact with backplane components and module connectors, etc. LaCie Quick Install Guide... -
Page 4: Before You Begin
ƒ Power Cord ƒ Rack kit (if installing within a rack) Refer to your supplier for a list of qualified accessories for use with the enclosure. The Accessory Box contains the power cords and other ordered accessories. LaCie Quick Install Guide... -
Page 5: Unpacking The Storage System
1. Inspect the packaging for crushes, cuts, water damage or any other evidence of mishandling during transit. If any damage appears present, for future reference photograph the packaging before opening. 2. Unpack the system. See Figure 1. Figure 1 - Unpacking the Storage System LaCie Quick Install Guide... -
Page 6: Installation
1. Remove the Rack Mounting Rail Kit from the Accessory Box and check for damage. 2. Attach left and right chassis slides to the enclosure sides using 8 M3 x 4 buttonhead screws (see Figure 2). Figure 2 - Securing Chassis Slides to Enclosure LaCie Quick Install Guide... - Page 7 Carefully insert the chassis slides into the rack rails and push fully home. c. Tighten the rear rack bracket mounting screws. d. Withdraw enclosure until it reaches the hard stops (approx. 400mm) and tighten the front rack bracket mounting screws. LaCie Quick Install Guide...
- Page 8 Return the enclosure to the fully home position. Figure 4 - Mounting the System into a Rack LaCie Quick Install Guide...
-
Page 9: Connecting To Host
• When using this product as an expansion chassis for the LaCie 12big Rack Network, software should be updated using the appropriate method mentioned in the LaCie 12big Rack Serial 2 User Manual. - Page 10 Figure 6 - Dual Host - Multiple Enclosures LaCie Quick Install Guide...
- Page 11 Power on the storage system by connecting the power cables to the power distribution unit (PDU), powering on the PDU, mov- ing the PCM switches to the ON position, and then powering on the host system. Figure 7 - Connecting the AC Power Cables to the PDU LaCie Quick Install Guide...
-
Page 12: Led States
I/O Module OK Host Port Activity (Amber) (Green) (Green) I/O Module OK I/O Module Fault No Host Port Connection Host Port Connection - No Activity Host Port Connection Activity Flashing I/O Module VPD Error Flashing X = Disregard LaCie Quick Install Guide... - Page 13 No AC power (this PCM only) AC present PCM On OK PCM fan fail PCM fault (over temp., over voltage, over current) Standby mode Flashing PCM firmware download Flashing Flashing Flashing Figure 9 - PCM LEDs Figure 10 - Drive LEDs LaCie Quick Install Guide...
- Page 14 Flash 1s on / 1s off None SES device fault bit set Logical fault (Amber) Power control circuit failure Module fault (Amber) Failed disk array Flash 3s on / 1s off Logical fault (Amber) X = Disregard LaCie Quick Install Guide...
-
Page 15: Front Panel Led States
Ops panel Power On (5s) test then double state beep Power On, all functions good PCM fault Any PCM fault, fan fault, over LEDs, fan or under temp. fault LEDs SBB module Any SBB module fault LEDs LaCie Quick Install Guide... - Page 16 Flash Arrays in Arrays operating background impacted function state Flash Flash SES State S1 Enclosure ID setting different from Start of Day Flash SES controlled enclosure ID X = Disregard LaCie Quick Install Guide...
- Page 17 17, rue Ampère 91349 Massy Cedex, France LaCie France LaCie Spain sales.intl@lacie.com 17, rue Ampère C/ Núñez Morgado, 3, 5 support.intl@lacie.com 91349 Massy Cedex 28036 Madrid info.fr@lacie.com info.es@lacie.com Visit www.lacie.com for more information on LaCie products. Copyright © 2010, LaCie 715254 101021...
