Dishwasher
HEC9AFM series
Instructions for Use
0120505918

Advertisement

loading

  Related Manuals for Haier HEC9AFMS

  Summary of Contents for Haier HEC9AFMS

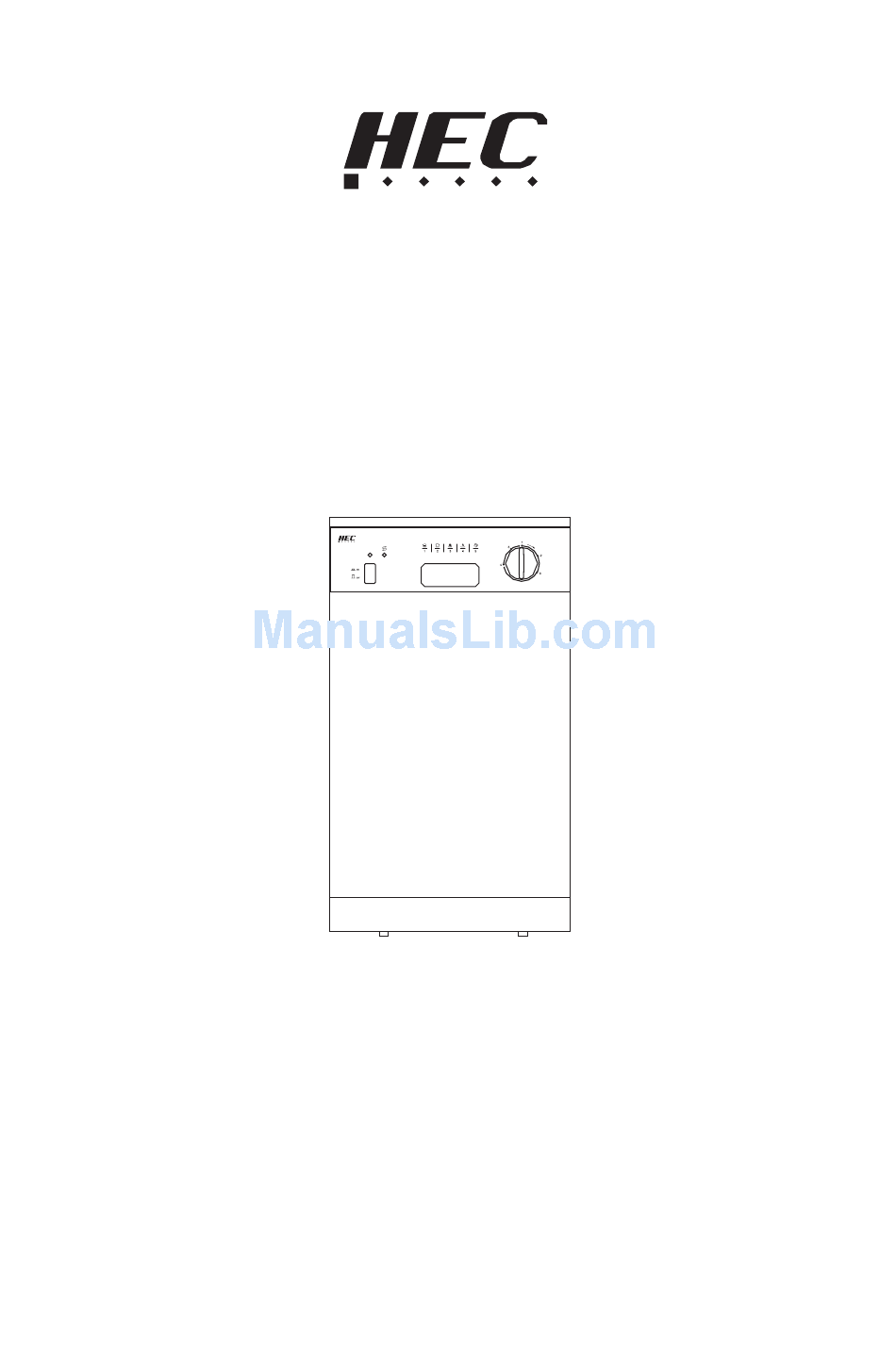

  • Page 1 Dishwasher HEC9AFM series Instructions for Use 0120505918...
  • Page 3: Table Of Contents

    Index Safety information Installation Getting to know your dishwasher How to fill the salt How to fill rinse aid How to fill the detergent Not suitable for the dishwasher Arranging crockery, glasses, etc. in the dishwasher Programme overview Turning on the Appliance How to keep your dishwasher in shape Care and maintenance Fault finding...
  • Page 4: Safety Information

    Safety information At time of delivery Check packaging and dishwasher immediately for signs of transport damage. If the appliance is damaged, do not put it into use but contact your supplier or customer service without delay. Please dispose of packaging materials properly. During installation Site the dishwasher and connect it up in accordance with the installation instructions.
  • Page 5: If A Fault Occurs

    If your family includes children This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capcabilities, or lack of experience and knowledge,unless they have been given supervi- sion or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they to not play with the appliance.
  • Page 6: Installation

    Installation Positioning the appliance Positioning the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. Levelling the appliance Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the dishwasher, making it level.
  • Page 7: Drain Hose Connection

    Drain hose connection Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. If necessary, fit a syphon trap (U-bend) with a connecting piece for the drain hose (fig.C).
  • Page 8 ELECTRICAL CONNECTION (UK ONLY) For your safety please read the following information. Warning: This appliance must be earthed. The appliance must be connected to a 220-240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug or a 15 amp fuse in the consumer unit.
  • Page 9: Getting To Know Your Dishwasher

    Getting to know your dishwasher Close-up view (control panel) "ON-OFF" Button Handle For Opening Door "ON-OFF" Light Knob For Selecting Cycle Low Salt Indicator Light Dishwasher interior Bottom Spray Arm Upper Rack Washing Filter Rack Height Adjustor Detergent and Rinse Aid Dispenser Top Spray Arm Salt Container Cap Lower Rack...
  • Page 10: How To Fill The Salt

    How to fill the salt Salt The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.
  • Page 11: Adjusting Salt Consumption

    Adjusting salt consumption The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimize and customize the level of salt consumption so that it remains at a minimum. To adjust salt consumption, proceed as follows: Unscrew the cap from the salt container;...
  • Page 12: How To Fill Rinse Aid

    How to fill rinse aid Rinse aid This product makes dishes sparkle and helps them to dry without spotting. The dispenser is located on the inside panel of the door . Loading the rinse aid Regardless of the type of detergent dispenser installed on your appliance, you must proceed as indicated below when load- ing the rinse aid.
  • Page 13: How To Fill The Detergent

    How to fill the detergent Detergent Detergent specifically intended for use with dishwashers must be used. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Programme overview". The detergent dispenser is located on the inside panel of the door.
  • Page 14: Not Suitable For The Dishwasher

    Not suitable for the dishwasher What you should not put into the dishwasher Cutlery and tableware manufactured in whole or part from wood.They become faded and unsightly in appearance.Furthermore,the adhesives that are used are not suitable for the temperature that occur inside the dishwasher.Delicate decorative glassware and vases,special antique or irreplaceable china.
  • Page 15: Arranging Crockery, Glasses, Etc. In The Dishwasher

    Arranging crockery, glasses, etc. in the dishwasher Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from be- coming clogged, which results in reduced performance. If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are soaked before washed.
  • Page 16 How to use the upper rack The upper rack is designed to hold more delicate and lighter dishware, such as glasses, cups and saucers, plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they do not get moved by the spray of water.
  • Page 17: Programme Overview

    Programme overview Cycle Selection Cycle Description of cycle Detergent Rinse Aid Information Pre-wash with hot water. ° Very dirty dishes,pots and Extended wash at 55 pans(not to be used with Rinse with cold water. delicate items). Rinse with hot water. Heavy Duty Drying.
  • Page 18: Turning On The Appliance

    Turning on the Appliance Starting a wash cycle... Make sure that the plug for the appliance is inserted into the wall socket. Make sure that the water supply is turned on to full pressure. Load the dishwasher. Pour in the detergent. Turn the knob located on the right of the control panel in the clockwise direction until the number or symbol for the cycle section entitled.
  • Page 19: How To Keep Your Dishwasher In Shape

    How to keep your dishwasher in shape After Every Wash After every wash, set the ON-OFF button “A” to off and leave the door slightly ajar so that moisture and odors are not trapped inside. Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks. No solvents or Abrasive Cleaning Products To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products.
  • Page 20: Care And Maintenance

    Care and maintenance Regular inspection and maintenance of your appliance helps to prevent problems from occurring.This saves time and aggravation.You should therefore carefully inspect the inside of your dishwasher from time to time. Overall condition of appliance Check that no grease or scale has accumulated on the inside of the dishwasher. If you discover any deposits: Clean the interior of the dishwasher thorughly with a detergent solution.
  • Page 21: Fault Finding

    Fault finding Resolving minor problems yourself Experience has shown that you can resolve most problems that rise during normal daily usage yourself, without having to call out a service engineer.Not only does this save costs,but it also means that the appliance is available for use again that much sooner.
  • Page 22 If you take all these checks and the dishwasher still does not function or your dish- washer have any other error display, you can power the dishwasher OFF, and wait a few minutes. You can power the dishwasher on, try it again, if the dishwasher still does not function and/or the problem persists, contact the nearest authorised service center and provide them with the following information: the nature of the problem.
  • Page 23 ...during washing Unusual amount of foam is creased Normal washing up liquid has been poured into the rinse-aid container. Remove any spilled rinse aid with a cloth as it could otherwise lead to excessive foaming during the next washing cycle. Appliance stops suddenly while washing is taking place Cut off electricity supply to appliance.
  • Page 24 Plastic items are discoloured Not enough detergent was added to dispenser. Detergent has insuffcient bleaching properties. Use a detergent containing a chemical bleaching agent. White stains are left on crockery, glasses have a milky appearance Not enough detergent was added to dispenser compartment. Amount of rinse-aid was set too low.
  • Page 25: Technical Data

    Technical data 45 cm Width Depth 60 cm Height 85 cm Capacity 9 standard place settings Mains water pressure 0.03-1.0MPa Power voltage 220-240V~ 50Hz Maximum current intensity 1950W Total absorbed power Important information Notes on waste disposal Old appliances still have some residual value. An environment-friendly method of disposal will ensure that valuable raw materials can be recovered and used again.
  • Page 26: General Information

    General information Measures must be taken to ensure that built-under and built-in units that are subsequently re-sited as free-standing appliances cannot topple over. This can be achieved by bolting the dishwasher to the wall or fitting it under a continuous work surface which is screwed to the adjacent cupboards. For Switzerland only: There are no restrictions on installing the appliance between wooden or plastic walls as part of a fitted kitchen.
  • Page 27 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collec- tion point for the recycling of electrical and electronic equipment. By ensuring this prod- uct is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
