Dacor DDWF24S Planning Manual

Document # PG10-004

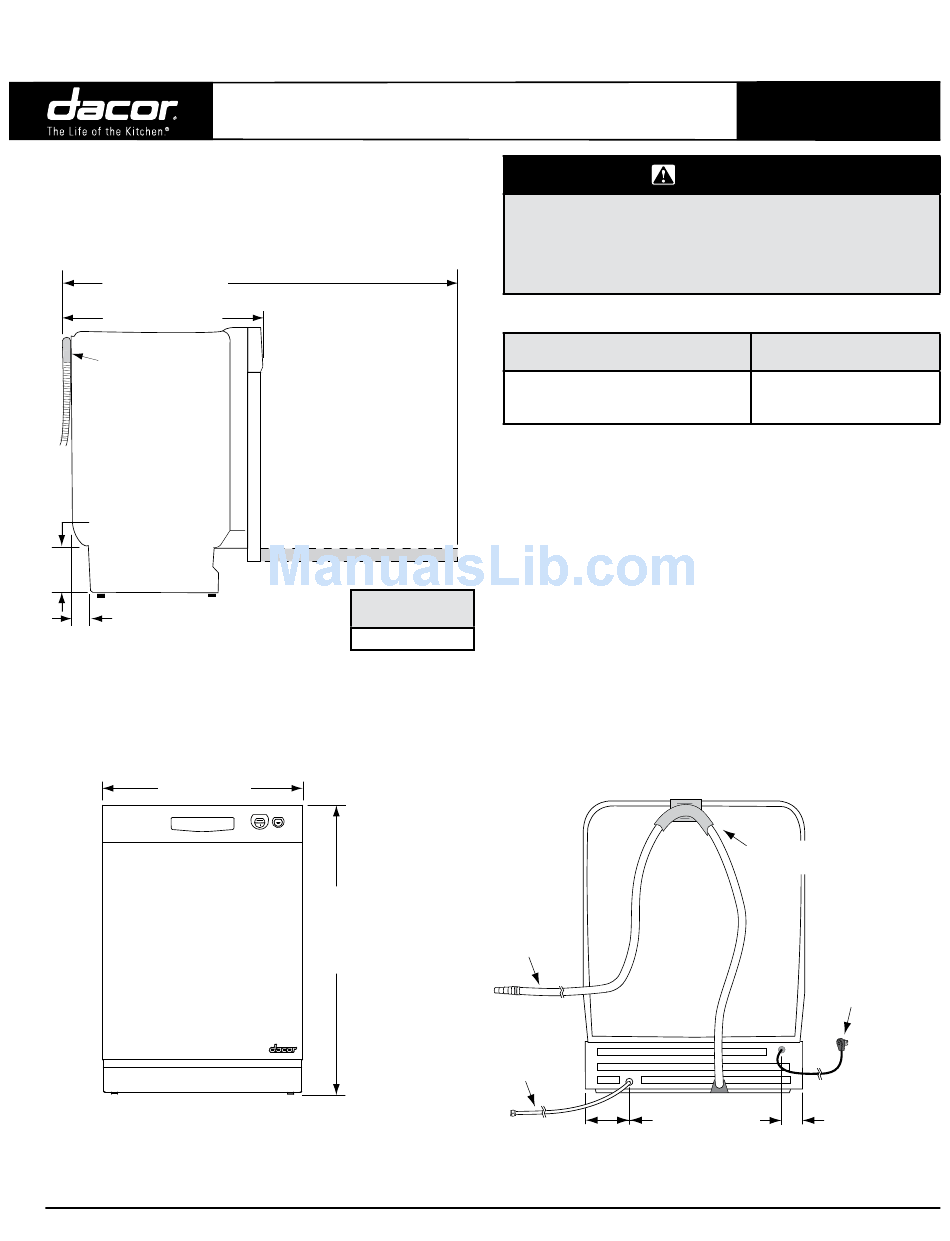

Product Dimensions
Product tolerances: ±1/16" (±1.6 mm) otherwise stated
Depth with door open
49 3/4" (126.4 cm)
Depth with door closed
23 3/4" (60.3 cm)*
Drain hose
Side
5 1/4" (13.5 cm) to
7 1/4" (18.5 cm)
2" (50.0 cm)
* 23 1/2" (59.7 cm) to front panel trim edge
24" (61.0 cm)
Front
Specifications subject to change without notice.
DDWF24S
24" Wide Built-In Dishwasher
Depth dimensions allow
for hose on back of unit
approximate
Shipping Weight
108 lbs. (49 kg.)
34 3/8"
(87.4 cm)
to
36 1/2"
(92.7 cm)
Water supply line
www.Dacor.com
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.

Electrical Specifications

Dedicated Circuit Required
Grounded, 3-prong, electrical outlet
supplied by 120 Vac,
60 Hz, 15 Amp. (circuit breaker)
■ The above specifications are for reference only. For exact
specifications see the product data label, located inside the right door
jamb.
■ Do not modify the power cord or use an extension cord. The power
cord may be disconnected from the appliance and hard-wired to a
junction box connected to a circuit meeting the above specifications if
the power cord is not long enough.
Water Supply Specifications
■ Water Pressure: 4.2 to 125 p.s.i. (30-862 kPa) with minimum water
flow of 3 gallons (12 liters) per minute.
■ Water Supply Temperature: Cold or hot water supply (max. 140°F,
60°C) may be used. Dacor recommends a hot water supply of 120°F
(49°C) to 140°F (60°C). If a cold water supply is used, washing times
will be longer but performance will not be affected.
■ Water Supply Valve Requirement: 3/8" water supply valve for
connection to dishwasher's water supply line is required in a location
where it is easily accessible after the dishwasher is installed. The
dishwasher water supply line is equipped with a 3/8" (1.0 cm) NPT
female compression fitting on the end.
Drain hose
54" (137.0 cm)
long
60" (152.0 cm)
long
UtILIty CoNNECtIoN DImENSIoNS
Revised 02/03/11 Page 1/3
PLANNING
GUIDE
WaRning
Total
Connected Load
11 Amp. @ 120 Vac, 60 Hz.
Do not modify
loop in hose
Back
Power cord
44" (112.0 cm)
3 1/4" (8.3 cm) 2 3/4" (7.0 cm)
Phone: (800) 793-0093
long
10.1
