Dacor DDWF24S Installation Instructions Manual

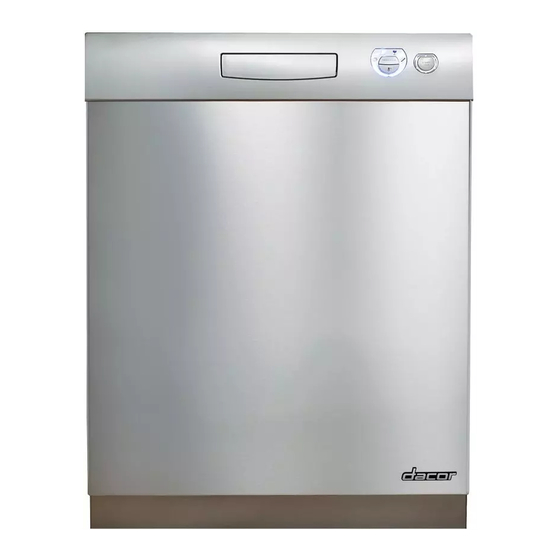

24-inch built-in dishwasher
Hide thumbs
Also See for DDWF24S:
- Use and care manual (24 pages) ,
- Installation instructions manual (19 pages) ,
- Planning manual (3 pages)
Related Manuals for Dacor DDWF24S
Summary of Contents for Dacor DDWF24S
-
Page 1: Installation Instructions
Installation Instructions 24 - Inch Built-in Dishwasher Model DDWF24S Part No. 106811 Rev. E... -
Page 2: Table Of Contents
Phone: (800) 793-0093 (U.S.A. and Canada) Monday — Friday 6:00 . to 5:00 . Pacific Time Web site: www.Dacor.com All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications. © 2010 Dacor, all rights reserved. -
Page 3: Important Safety Instructions
Hazards or unsafe practices that COULD result in • Always contact the Dacor Customer Service severe personal injury or death. Team about problems and conditions that you don’t understand. See Customer Service CAUtION Information. -
Page 4: General Safety Precautions
• To prevent household mold and mildew accompanying it. A qualified service technician damage, periodically check the inlet and drain should perform all other service. Contact the hoses for leaks. nearest Dacor authorized service representative for examination, repair or adjustment. -
Page 5: Product Specifications
Product Specifications Product Dimensions Product tolerances: ±1/16” (±1.6 mm) Depth with door open 49 3/4” (126.4 cm) Depth with door closed 24” (61.0 cm) 23 3/4” (60.3 cm)* Drain hose 34 3/8” Depth dimensions allow (87.4 cm) Side for hose on back of unit 36 1/2”... -
Page 6: Preparing For Installation
9. • The dishwasher can be connected to a cold or hot water supply (maximum 140°F, 60°C). Dacor Electrical Requirements recommends using a hot water supply of 120°F Electrical Circuit 15 Amp. 120 Vac, 60 Hz. -
Page 7: Preparing The Location
9. Extra care must be the drain connection and the dishwasher cutout taken if the feet are not installed. Dacor is not must be higher than the disposer or waste tee responsible for floor damage during installation. -
Page 8: Preparing The Drain
Preparing for Installation Preparing the Drain • The drain hose is equipped with a cone- shaped connector on CAUtION the end that is ready to be cut to the desired drain connection size. Only Keep the factory installed high loop drain hose in a clamp (not provided) is required. -
Page 9: Installation Instructions
Installation Instructions Verify the Package Contents • Remove all styrofoam and plastic wrap from the dishwasher. Be sure to remove the toe kick from the top of the dishwasher packaging. With the assistance of at least one person, remove the dishwasher from the shipping pallet. -
Page 10: Installation Preparation
Installation Instructions Installation Preparation To make larger tension adjustments to the door springs, remove the back of the springs from the dishwasher by turning them outwards. WARNING Move them one hole farther back or forward, then make small adjustments as outlined in step 3 as • Before working on wiring for any electrical necessary. -
Page 11: Installing The Unit In The Cabinet
Installation Instructions Level the Dishwasher Open the door and pull the bottom rack out of the dishwasher. Check to make sure the dishwasher floor is level left to right using a level. Adjust the CAUtION front legs as necessary. A level unit is very important to proper operation. Adjust the rear leg until the floor of the Be sure to level the unit front to back and side to dishwasher is level front to back. -
Page 12: Installing The Unit In The Cabinet
Installation Instructions Connecting the Electric Cable (cont.) Installing the Unit in the Cabinet (Permanently Connected Appliance Only) Position the dishwasher in front of the cabinet opening. If a nonmetallic cable is being used, install a UL listed strain relief bushing on the back of the Before sliding the unit into the cutout, make sure dishwasher. -
Page 13: Water Line Connection
Installation Instructions Once the dishwasher is in place check to make Connect the drain hose to the air gap or directly sure all slack is pulled out of the power cable, to the waste tee or disposer above the sink trap water supply line and drain hose. -
Page 14: Final Leveling
• Repeat the Wet Test Checklist. • If the appliance still does not work, contact Dacor Distinctive Service at (877) 337-3226. Do not attempt to repair the appliance yourself. If you need service, be sure to have the model and serial numbers available when you call. -
Page 15: Attaching The Anti-Tip Brackets
Installation Instructions Attaching the Anti-tip Cover the screw holes on the sides with the supplied plastic plugs. Push in the plugs Brackets diagonally to fit them in place. CAUtION Make sure to anchor one anti-tip bracket on each side of the dishwasher. The anti-tip brackets protect against possible tipping caused by heavy bottom rack loads on the door. -
Page 16: Installation Checklist
• Proper installation is the responsibility of the homeowner. The importance of proper installation of your Dacor dishwasher cannot be overemphasized. □ Has the unit been inspected for cosmetic damage? □... - Page 17 Notes...
- Page 18 Notes...
