Document # PG10-004
Product Dimensions
Product tolerances: ±1/16" (±1.6 mm) otherwise stated
Depth with door open
49 3/4" (126.4 cm)
Depth with door closed
24" (61.0 cm)
Drain hose
Side
5 1/4" (13.5 cm) to
7 1/4" (18.5 cm)
2" (50.0 cm)
24" (61.0 cm)
Front
Specifications subject to change without notice.
Install all appliances according to accompanying installation instructions.

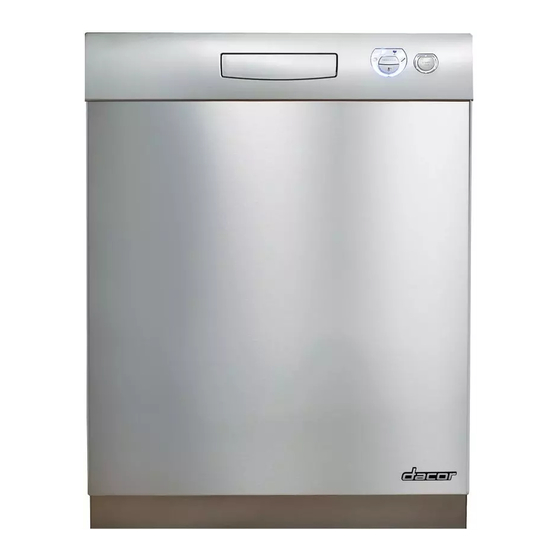

DDWF24S
24" Wide Built-In Dishwasher
Depth dimensions allow
for hose on back of unit
approximate
Shipping Weight
108 lbs. (49 kg.)
34 3/8"
(87.4 cm)
to
36 1/2"
(92.7 cm)
•
Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
•
This appliance must be installed in accordance with the
accompanying installation instructions.
Electrical Specifications
Dedicated Circuit Required
Grounded, 3-prong, electrical outlet
supplied by 120 Vac,
60 Hz, 15 Amp. (circuit breaker)
■
The above specifications are for reference only. For exact
specifications see the product data label, located inside the right door
jamb.
■
Use only the supplied power cord. Do not modify the power cord or
use an extension cord.
Water Supply Specifications
■
Water Pressure:
4.2 to 125 p.s.i. (30-862 kPa) with minimum water
flow of 3 gallons (12 liters) per minute.
■
Water Supply Temperature:
140°F, 60°C) may be used. If a cold water supply is used, the washing
times will be longer but performance will not be affected.
■
Water Supply Valve Requirement:
connection to dishwasher's water supply line is required in a location
where it is easily accessible after the dishwasher is installed. The
dishwasher water supply line is equipped with a 3/8" (10 mm) NPT
female compression fitting on the end.
Drain hose
54" (137 cm) long
Water supply line
60" (152 cm)
long

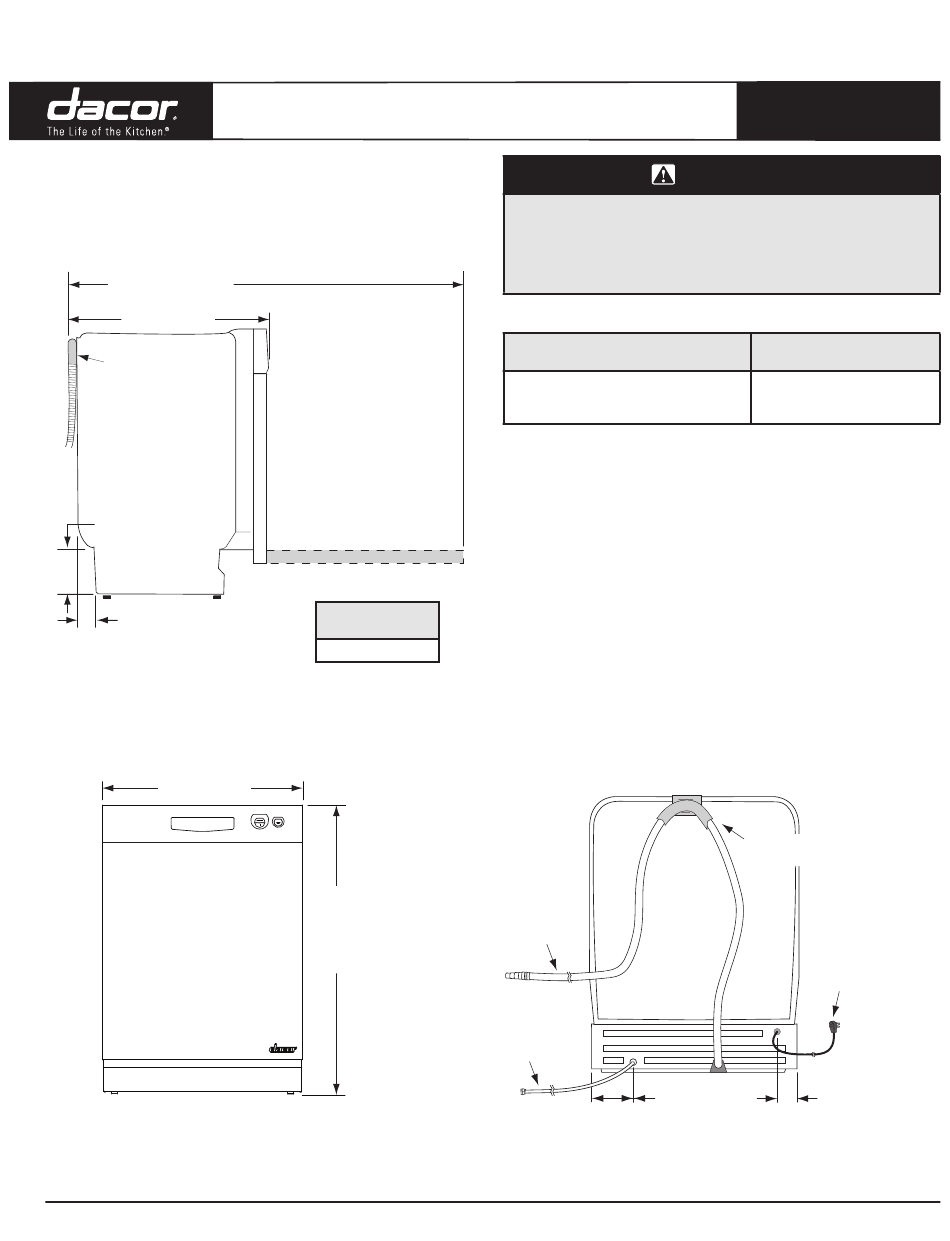

UtILIty CoNNECtIoN DImENSIoNS
www.Dacor.com
Revised 06/18/10 Page 1/2
PLANNING
GUIDE
WaRning
Total
Connected Load
11 Amp. @ 120 Vac, 60 Hz.
Cold or hot water supply (maximum
3/8" water supply valve for
Do not modify
loop in hose
Back
Power cord
44" (112 cm) long
3 1/4" (8.3 cm)
2 3/4" (7.0 cm)
