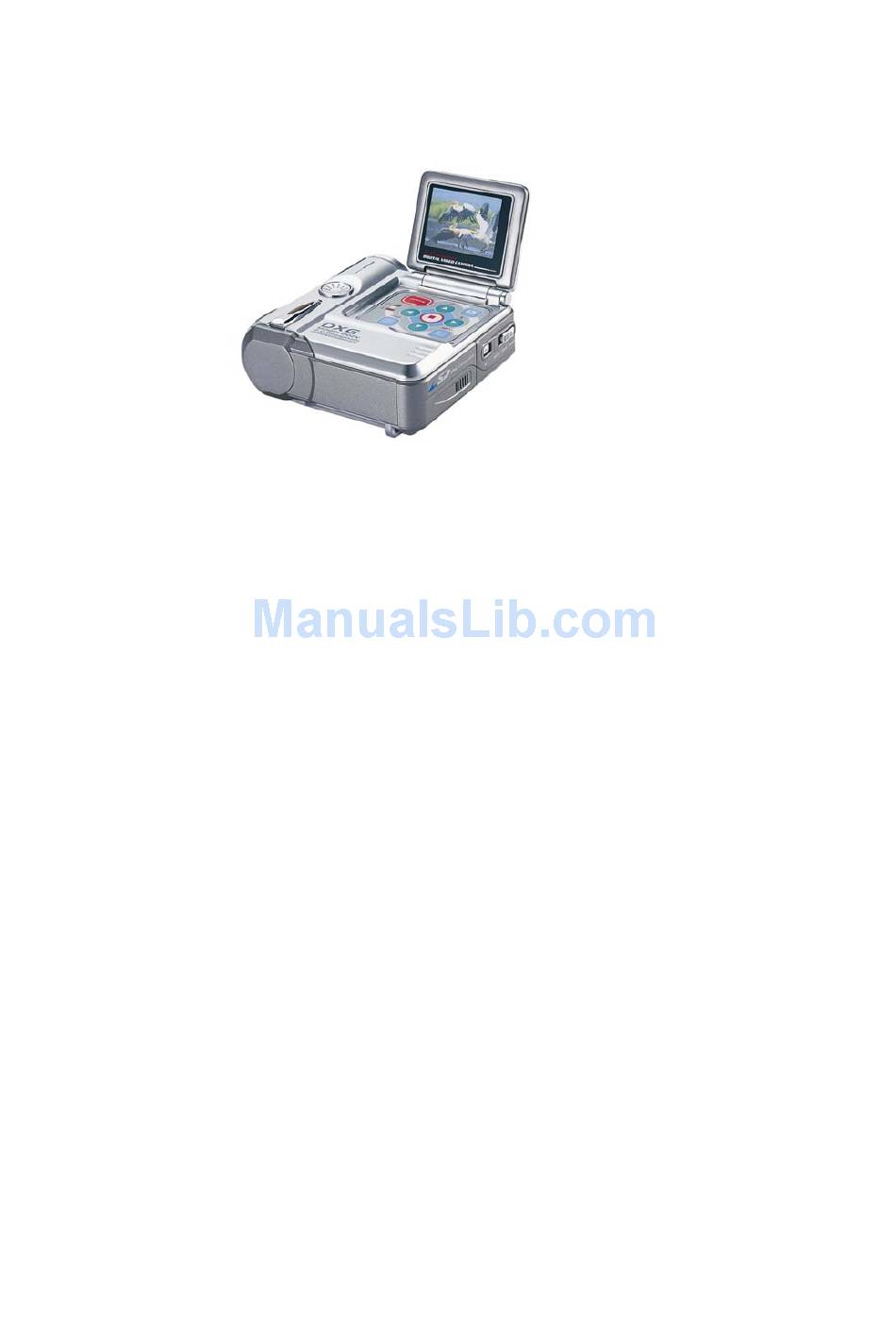

  • Page 1 DXG-202V User's Manual...

  • Page 2: Table Of Contents

    Contents 1.Attention…………………………………………………………..…….…..……4 Safety Precautions…………………………………………..……………..….………….…..4 Before Using Your Digtial Video Camera………………….…..…..……….………………...4 Operational Precautions...…………………….…………….…………….………...…………5 Package Contents………………………….………….…………….…………….…..…...…..5 2.Getting to Know Your Digital Video Camera………..………..……...…….6 Digital Video Camera Controls….…….……...…………. ……………….………….…….6 Top View………………………………………………..……...….…………...…………...6 Left Side View………………………………………………...….…………...……………6 Right Side View………………………………………………...….………………………6 Rear View………………………………………………...….…………...…………………7 3.Getting Started………..……………..……..…..……………………..……..….8 Preparing Your Digital Video Camera….……...………...…………. …...……………….8 4.Start Using Your Digital Video Camera…………….……..………...…...…9 Function Tree………………….……………….……………….…………….……..…….…..9 Setup Mode…………………………………………….………….……………………….….10...
  • Page 3 Album Function……………………………….….…………………….……...…….……..21 Playback Menu………………………………………………………………...….………...21 5.Connecting Your Computer….…..….…...….…...…….…...…...28 Using the Digital Video Camera as a Web camera….…….….…...….…….. ….…….…..28 Using the Digital Video Camera as a Mass Storage drive…..…..…..…..…. …..…..……28 Connecting to Your TV/VCR……………………………………..………….………..….…..29 System Requirements……………….……………………………………………….…...…..30 6.Installing Drivers… …………………….. ……………………….. ………...31 7.Installing the PC Applications…..………...………...………...……...……32 Appendix: Specifications…………………………….…...…...……...……..34...

  • Page 4: Attention

    1. Attention Please read through this manual carefully before using the Digital Video Camera and follow the instructions to avoid damage caused by improper operation. Safty Precautions ● The software CD-ROM packaged with the Digital Video Camera is for PC only. Do not attempt to play the CD-ROM on a stereo or CD player.

  • Page 5: Operational Precautions

    Operational Precautions This product consists of intricate electrical parts. To ensure normal photography, do not drop or hit the camera when taking pictures. ● Avoid using or placing the Digital Video Camera in the following locations: 1. Damp and dusty places. 2.

  • Page 6: Digital Video Camera Controls

    2. Familiarization: Getting to Know Your Camera Digital Video Camera Controls Front Side View Shutter Self-timer LED Flash Lens Microphone Left Side View Set Button-. Mode Switch 1. Capture Mode 2. Movie Mode 3. Voice Mode Battery Cover and SD Card slot Right Side View Macro Switch.
  • Page 7 Top View Speaker Color Liquid Crystal Display Flash LED Power LED Power Button Enter Button Playback Button Display Button Menu Button Battery power level Full battery power Medium battery power Low battery power Battery exhausted...

  • Page 8: Getting Started

    Getting Started Preparing Your Digital Video Camera ●Step 1 Insert two "AA" batteries into the battery compartment. ●Step 2 When inserting SD/MMC memory card, follow the icon shown in the compartment to insert or remove the card push-and-pull. Then, push the memory card all the way into the memory compartment and close the battery door, push the battery door down and then slide it closed.

  • Page 9: Start Using Your Digital Video Camera

    Start Using Your Digital Video Camera ●Step 1 Press the Power button to turn on the Digital Video Camera. The Power LED will light up. ●Step 2 The LCD Display will turn on. Note: The LCD Display turns off automatically if you do not operate it for 30 seconds.

  • Page 10: Setup Mode

    Press the Set button to enter the setup menu. You can configure the basic settings: 1. Beep--Sound On/Off. 2. Date/Time--Date & time settings. 3. Language--Language settings. 4. Format--Format the internal memory or memory cards. 5. Default--Reset to preliminary settings. 6. TV--TV output format setting: NTSC/PAL 7.

  • Page 11: Movie Mode

    Formatting the Memory Card Format your SD/MMC memory card before using it to store pictures. ●Step 1. Press to move down to the Format option. ●Step 2. Press Enter button to bring up the"Cancel/OK" Menu. ●Step 3. To format the memory card, select “ok” on the screen and then press the Enter button.

  • Page 12: Recording Video

    Recording Video Video is recorded at a rate of approximately 15 frames per second in AVI format. ●Step 1. Press the Shutter button once to start recording video. You will see live views of the subjects or scenes you are recording on the LCD. ●Step 2 While recording, a red icon blinks on the upper left side of the LCD Display and the record time increments.

  • Page 13: Status Identifier

    the camera must be connected to the display output device (monitor or TV) with the AV cable. Status Identifier Record Voice Dial the Mode Switch to Voice ●Step 1. Press the Shutter button once to start recording voice. ●Step 2. While you are recording, an red icon left side of the LCD Display.

  • Page 14: Capture Modes

    Turn the Mode Switch to Capture Mode Status Identifier Date Stamp (Default is not displayed). Battery Status Indicator: (Full) Half Empty Memory Card Status: Card inside Or Not. Image Number Self-timer Indicator EV Level White Balance: Auto, Sunny, Tungsten, Image Quality: Fine, Normal, Basic.

  • Page 15: Shooting Photos

    Shooting Photos Taking pictures with your Digital Video Camera is a snap. Just point and shoot! ● Step 1. Turn on camera. ● Step 2. Frame the subject in the LCD Display. ● Step 3. Press the Shutter button to take a picture. The picture will remain on the display until it is stored in the memory.
  • Page 16 In Capture mode, press Menu button to enter Snapshot Menu: White Balance Setting ● Step 1. Use to select WB on the menu bar. ● Step 2. Press the Enter button to enter White Balance setting menu. ● Step 3. You can use to select Auto, Sunny, Tungsten, and Fluorescent.
  • Page 17 Image Quality Setting ● Step 1. Use to select on the menu bar. ● Step 2. Press the Enter button to enter the Image Quality menu. ● Step 3 Use to select Fine, Normal or Basic ● Step 4 Press Enter button to confirm your selection, or press Menu button to cancel it.
  • Page 18 ● Step 3 You can use to select ON, Off. ● Step 4 Press Enter button to confirm your selection, or press Menu button to cancel it. To Take a picture with self-timer With the Self-timer function set to “On,” the Self-timer icon appears at the center of the LCD display.

  • Page 19: Flash Function

    ● Step 3. You can use to select ON, Off. ● Step 4. Press the Enter button to confirm your selection, or press the Menu button to cancel it. Note: After setting the date stamp on, the date will display on the LCD panel, and dates will be stamped on captured pictures.

  • Page 20: Image Playback

    Image Playback Press to play back the previous image or the next image. Press the Enter button to enter the image zoom modes Press the Up button to zoom in on the image Press the Down button to zoom out from the image In this mode, press the menu button for pan modes In this mode, you can press any of the following [ ]、[...

  • Page 21: Voice Playback

    Voice playback Voice files are indiciated by a voice icon. Press the Enter button to start playing the voice file. Press the Menu button to pause play. Press Enter button to stop playing back voice. During voice playback, press the [ ] 、[ ] button to adjust volume and then the volume appears on left side of the screen.

  • Page 22: Playback Menu

    Playback Menu Deleting Photos You can choose to delete a single photo or all the photos stored in the Digital Video Camera. Deleting a Single Photo ● Step 1. Make sure that the Digital Video Camera is in playback mode. Example: Move to the picture which is going to be deleted.
  • Page 23 Step 5. Press Enter to confirm your ● deletions. The image shown on the display will then be deleted and the previous image comes up. If you press the Menu button, the screen will return to step 2. ● Step 6. Select Cancel to stop deleting operation and go back to the Playback Menu.
  • Page 24 ● Step 5 Press Enter button to confirm Delete All, then bring up current picture with Delete menu: Cancel and Delete All. ● Step 6 Press to select the Delete All option on the menu screen, and then press Enter button to confirm the erasing operation again. If you change your mind and do not want to continue deleting all the pictures, press to select Cancel on the menu screen.
  • Page 25 ● Step 3. Press Enter button to bring up Protect Menu. If press Menu button, the screen will return to step 3. ● Step 4. Press to select one image for protection. ● Step 5. Press the Enter button to protect the current image. The lock icon will appear on the top right corner of the image that you selected.
  • Page 26 ● Step 3. Press to select the Start on the menu screen, and then press Enter button to slide show all of your pictures. ● Step 4. Press the Enter button to stop slide show. DPOF Function Selecting the DPOF option in Playback Menu can directly send your selected photo to the compatible printers that read DPOF (Digital Print Order Format) files.
  • Page 27 ● Step 3. Press the Enter button to bring up DPOF Menu: Set All and Set One. If you press the Menu button, the screen will return to step 2. ● Step 4. Press to select Set All on the menu screen, and then press the Enter button to set all of your pictures, which would indicate print number 1 only, to DPOF files unless specific picture marked from following Set Single Picture process.
  • Page 28 ● Step 4. Press to select Set One option on the menu screen, and then press Enter button to enter menu for setting single picture to DPOF file. ● Step 5. Press to select single picture, use number, number zero means this picture is not set in DPOF file. ●...

  • Page 29: Using The Digital Video Camera As A Web Camera

    5. Connecting to Your Computer You will need to connect the Digital Video Camera to your computer's USB port to transfer photos into your computer. This section shows how you can connect the Digital Video Camera to your computer. First, you must install the Digital Video Camera Driver from the software CD-ROM before connecting to ensure your computer functions properly with USB.

  • Page 30: Connecting To Your Tv/Vcr

    ● Step 4 Press to select Mass Storage Drive or PC Camera option on the menu screen, and then press Enter button to enter menu for Using the Digital Video Camera as a Web camera or a Mass Storage drive. Connecting to Your TV/VCR Connect your Digital Video Camera to a television if you want to have a larger view of your photos.

  • Page 31: System Requirements

    System Requirements Although you can get by with the following minimum system requirements and use the Digital Video Camera, we recommend that you use a computer system that exceeds the minimum requirements in order to utilize the Digital Video Camera at its optimum efficiency. The minimum system requirements for the Digital Video Camera are as follows: System (PC) Requirements Microsoft Windows 98SE/Me/2000/XP...

  • Page 32: Installing Software

    6. Installing Software You can use the PC Camera and Mass Storage functions of the camera via PC. To install the camera driver: ● Step 1. Insert the software CD-ROM supplied with the package into the CD-ROM drive. ● Step 2. The Auto-run program will be executed and the welcome screen appears: (If your CD-ROM drive doesn't support the auto-run...

  • Page 33: Installing The Applications For Pc

    7. Installing the Applications for PC Install Arcsoft Software (Example: Arcsoft Photo Impression) ●Step 1. Insert the software CD-ROM supplied with the package into the CD-ROM drive. ● Step 2 The Auto-run program will execute and the welcome screen appears: (If your CD-ROM drive doesn't support the auto-run function, please double click on the "My Computer"...
  • Page 34 ●Step 8 Please select the program folder you want to install. ●Step 9 When the installation is complete, the window below will appear. Press Finish to end the installation.
  • Page 35 Appendix: Camera Specifications ● Lens: f=9.6 mm ● Image Sensor : 2.0 mega pixel CMOS sensor ● Focus: F/2.8 ● Sensitivity: ISO 100 ● White Balance: Auto, Sunny, Tungsten, Fluorescent. ● Shutter: Electrical ● Shutter Speed : 1/4 sec. ~ 1/2000 sec. ●...
