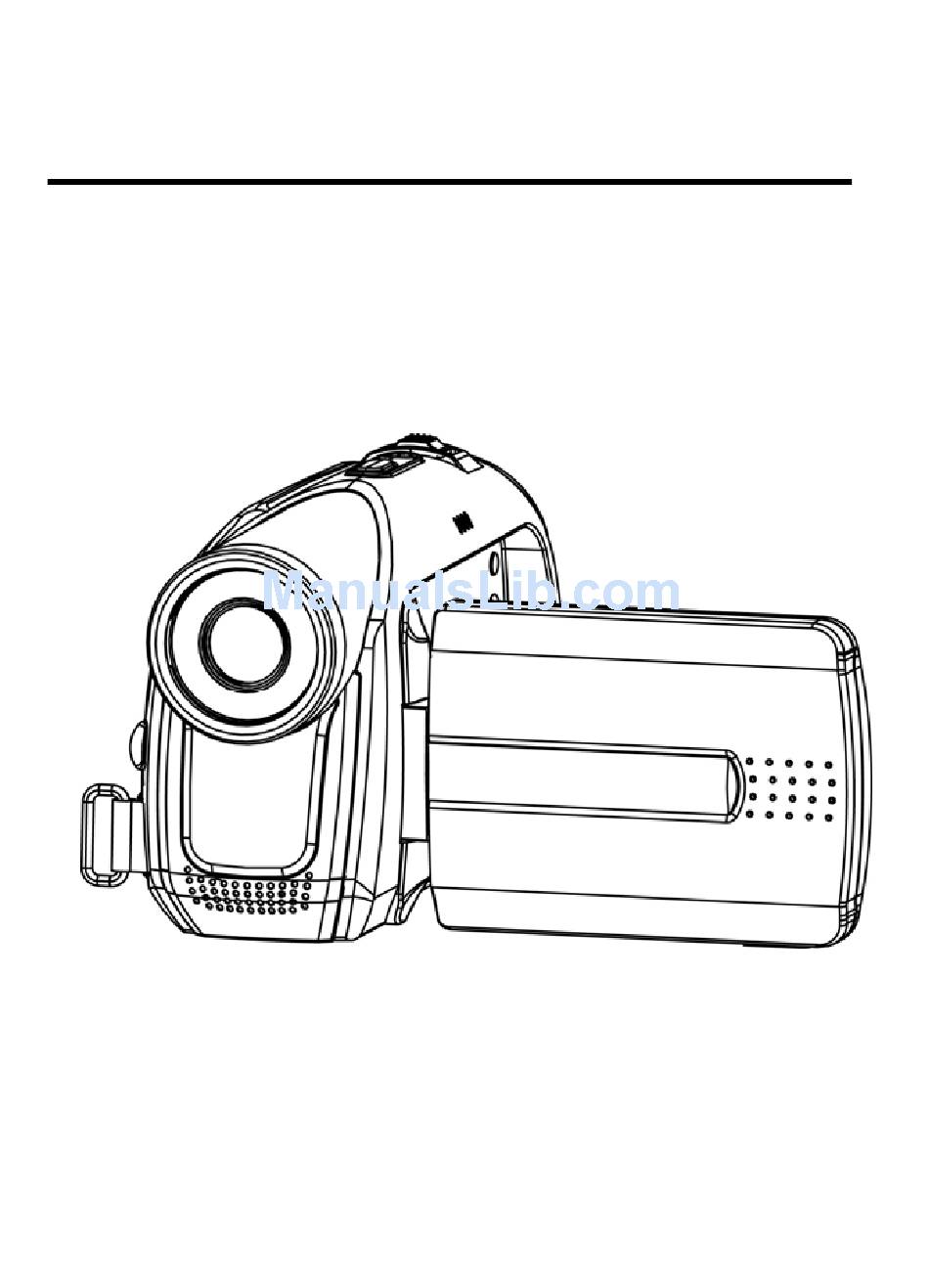

  • Page 1 DXG-571V User’s Manual...
  • Page 2 This is a digital video camera of exceptional quality and value. You will be able to capture videos and take pictures; then share them with friends and family. This digital video camera also functions as a digital voice recorder and use it as a webcam when connected to a PC.

  • Page 3: Table Of Contents

    Contents 1. Precautions... 4 Safety precautions... 4 Precautions before use ... 4 Precautions before operation ... 5 Package contents... 5 2. Understanding the digital video camera... 7 Digital video camera construction ... 7 Top view... 7 Front view ... 7 Connector ports...
  • Page 4 Color effects……………………………………………………………………………23 Auto shutter... 23 Select date indicator... 23 Return to photo mode ... 23 Flash light function ... 23 How to take a picture ... 23 Capturing close-up photos ... 24 Capturing general photos... 24 White-light LED Function... 24 Night shot function ...

  • Page 5: Precautions

    1. Precautions Please carefully read through this manual before use, and follow the instructions for operation to prevent unit damage due to inappropriate operation. Safety precautions ● The included CD is a PC software only, and not an audio CD. Please do not playback on stereo or personal equipment to prevent damage to the CD.

  • Page 6: Precautions Before Operation

    Precautions before operation This product is composed of precision electrical components. In order to ensure correct image recording, please do not apply heavy shock or impact on the digital video camera during operation. ● Avoid operating and storing in the following locations. 1.
  • Page 7 DC-IN Connector (optional) NP-60 Li-Ion battery (optional) ● Digital Video camera ● Lens cap ● Pouch ● Lens cap strap ● USB/AV out cable ● “AA” alkaline battery X4 ● DC-IN Connector (optional) ● DC IN 5V Adapter (optional) ● Charger stand (optional) ●...

  • Page 8: Understanding The Digital Video Camera

    2. Understanding the digital video camera Digital Video Camera Views: Top view 1. Shutter button – For recording 2. ZOOM button – Digital zoom (Work as volume control when playing audio files and when the photos are zoomed in, this button can control the horizontal movement of the photos.) 3.

  • Page 9: Back View

    Back view 1. Power indicator light – When the digital video camera is on, the power indicator light is lit. 2. MENU button – Under different modes, pressing this button can access the function menu of each mode. 3. REC button – Between the mode selection buttons, mainly for video/audio recording functions.

  • Page 10: Right View

    Right view 1. Battery compartment lock – This is the lock to open the battery compartment. 2. Li-Ion battery support – After inserting the Li-Ion battery, pivot out this support to secure the battery. 3. DC power plug – Insert the DC-IN 5V power plug to supply external DC voltage to the unit. 4.

  • Page 11: How To Use Your Digital Video Camera

    3. How to use your digial video camera Preparations before operation ● First step: Please insert four AA alkaline or rechargable batteries into the compartment. Be sure to check the battery life. If the battery life is low, please immediately replace the batteries to ensure proper digital video camera operation.

  • Page 12: Using Your Digital Video Camera

    4. Using your digital video camera ● Step one: Press the Power switch button, and the power indicator light will automatically light up. When the power indicator light is lit, release the power switch button. Function list Movie mode Video mode Capture Video: start/stop Digital zoom: 1x~4x EV adiustment: -2EV—+2EV...
  • Page 13 Photo mode Snapshot Digital zoom:1.0X~4.0X EV adjustment:-2EV~+2EV Auto shutter:off/5sec /10sec/30sec White-light LED mode: On/off Night shot mode: On/off Focus adjustment: MACRO/Portrait/Landscape Effects: normal/monochrome/retro Photo menu: White balance: auto/sun light/light bulb/florescent light /cloudy Size: 4048x 3040 /3264 x 2448/2592 x 1944/2048 x 1536/ 1600 x 1200/640 x 480 Image quality: fine/standard Date indicator: on /off...
  • Page 14 Setup mode Button beep: on/off Date/time Language: English/Traditional Chinese /Simplified Chinese French/German/Italian/Japanese/Spanish/Russian/ Korean/Turkish/Portuguese/Dutch/Arabian Format: confirm/cancel Memory message: Photo count Video count Audio count Remaining space Factory default: confirm/cancel TV standard: NTSC/PAL Light source frequency: 60Hz/50Hz Auto shutoff:off/1min/3min Copy to card: confirm /cancel Audio mode Audio mode Record...

  • Page 15: Video Mode

    Video mode [ Switch to the mode selection button to [Movie] Status indicator Movie mode indicator Image format White balance Color effects Image quality Focus Status Battery status White-light LED ON icon Night shot icon Built-in storage status Number of image files Digital zoom status Image size Hotkey menu...

  • Page 17: Capturing Video

    Capturing video T his digital video camera can capture video in MJPEG format. Under the movie mode, press the MENU button to enter the movie menu. Under the movie menu page, possible controls are as below: Select image size: 1. Press the up button ▲ or down button ▼ to select the size option and press the confirm button 2.

  • Page 18: White-Light Led Function

    Select white balance mode: 1. Press the up button ▲ or down button ▼ to select the white balance option and press the confirm button 2. Use the up button ▲ or down button ▼ to select your desired white balance mode and press the confirm button White balance modes: auto, sun light, cloudy, light bulb, florescent light.

  • Page 19: Night Shot Function

    Night shot function Press ▼ key under the video mode, the night shot icon record videos during night time or in a darker environment. Press ▼ key again the night shot icon disappears, you can then record videos during daylight or in a lighter environment. Focus adjustment To choose MACRO mode under the video mode, rotate the focus knob and align the indicator to icon.

  • Page 20: Video Playback Menu

    Video playback menu: Under the video playback mode, press the MENU button to return to the playback menu. Delete single video 1. Press up button ▲ or down button ▼ to select the single choice to delete, then press the confirm button 2.

  • Page 21: Exit Video Playback Menu

    Protect single video 1. Press up button ▲ or down button ▼ to select the single choice to protect, then press the confirm button 2. Press up button ▲ or down button ▼ to confirm or cancel, press the confirm button to either protect single video or cancel protection.

  • Page 22: Hotkey Menu

    Hotkey menu: Under the photo mode, continuously press the confirm button left of the LCD screen to access the hotkey function selection; this can control the captured video such as: Image file size, exposure, image quality, white balance, self-timer, color effect setups. After pressing the confirm button , press the up button ▲...

  • Page 23: Focus Locking

    Focus locking: When pressing the shutter button to the first stage, a green [ ] indicates the image is focused. Photo menu: Setup the desired options before filming. Press MENU button to access the photo menu. The control procedures are as below: Select image size: 1.

  • Page 24: Select White Balance Mode

    Select white balance mode: 1. Press up button ▲ or down button ▼ to select white balance option, and then press the confirm button 2. Press up button ▲ or down button ▼ to select your desired white balance mode, and press the confirm button White balance options: auto, sun light, cloudy, light bulb, florescent light.

  • Page 25: Capturing Close-Up Photos

    White-light LED Function: Under the photo mode, press ▲ key to select the activation mode of White-light LED function. Night shot function Press ▼ key under the photo mode, the night shot icon now shoot photos during the night time or in a darker environment. Press ▼ key again the night shot icon disappears, you can then take shots during daylight or in a lighter environment.

  • Page 26: Focus Adjustment

    Focus adjustment To choose MACRO mode under the photo mode, rotate the focus knob and align the indicator icon. To choose Portrait mode, rotate and align the indicator to Landscape mode, rotate and align the indicator to following figure: MACRO mode enables you to take shots of objects within the distance of 12 to 14cm away from the lens;...

  • Page 27: Photo Playback Menu

    P hoto playback menu: Under photo playback mode, press the MENU button to display the photo playback menu. Control procedures are as below: Delete single photo 1. Press up button ▲ or down button ▼ to select the single photo choice to delete, then press the confirm button 2.
  • Page 28 Delete all photos 1. Press up button ▲ or down button ▼ to select all to delete, then press the confirm button 2. Press up button ▲ or down button ▼ to confirm or cancel, press the confirm button to either delete all files or cancel deletion (protected files cannot be deleted). Undo all photo protection 1.
  • Page 29 DPOF set all: 1. Press up button ▲ or down button ▼ to select the “DPOF” option, then press the confirm button 2. Press up button ▲ or down button ▼ to set the all option, then press the confirm button to set to print one single copy of all photos.

  • Page 30: Exit Photo Playback Menu

    DPS (only supported for DPS (direct print service) enabled printers) Press up button ▲ or down button ▼ to select the print option, then press the confirm button . Connect the digital video camera and printer with the USB cable and after successful connection is established the digital video camera will show print single and print all options.

  • Page 31: Audio Mode

    Audio mode Rotate the mode selection dial to , the screen will display: Status indicator: Under the audio mode, press the REC button to begin audio recording, press the REC button to stop audio recording. Begin recording: Recording playback: Under the audio mode, press the playback button to go to the recording playback mode. To play audio files that were not recorded by this camera, please rename the audio file in the format of “WAVE0001.wav”.

  • Page 32: Audio Playback Menu

    Control procedures as below: Audio playback menu: Under audio playback mode, press the MENU button to display the audio playback menu. Delete single audio 1. Press up button ▲ or down button ▼ to select the single audio choice to delete, then press the confirm button 2.

  • Page 33: Exit Audio Playback Menu

    Undo all audio protection 1. Press up button ▲ or down button ▼ to select all audio to protect, then press the confirm button 2. Press up button ▲ or down button ▼ to confirm or cancel, press the confirm button to either unprotect all audio or cancel undo protection (only undo protected files).

  • Page 34: Status Indicator

    S tatus indicator: At the setup mode, the user can modify the followng options: 1. Date/time 3. Format 5. Memory info 7. Video output 9. Video setting 11. Copy to card Under the setup mode, press the up button ▲ or down button ▼ to modify the options, and press the confirm button to perform setup.

  • Page 35: Setup

    Setup: Exit setup To exit setup mode, press the DISP/SET button to return to the interface before pressing MENU button; then press MENU button to return to the interface before that.

  • Page 36: Video/Audio Output

    5. Video/audio output You can use the “video/audio out” on the digital video camera to output the video/audio to an external device (such as: TV), the method is as below: ● Step one: Connect the smaller end of the USB cable to the USB connector port of the video camera.

  • Page 37: How To Connect To Pc

    6. How to connect to PC The digital video camera can also function as a webcam/storage device, procedures as below: ● Step one: Make sure the digital video camera is installed with four “AA” batteries ● Step two: Connect the smaller end of the USB cable plug to the USB port on digital video camera Note: Please make sure to connect the USB cable properly to prevent damage.

  • Page 38: System Requirements

    ● Step four: In a moment the camera will enter the connect to PC mode: ● Step five: Press Up button ▲ or Down button ▼ to select removable disk or webcam and then press confirm button, the camera screen will turnoff and enter the appropriate function.
  • Page 39 For Microsoft Windows98SE/Me users, please connect the larger USB plug to the PC USB port and the other end to the digital video camera USB port after installing the drivers and application software. When the camera enters the “connection to PC” page, press the up button ▲ or down button ▼...

  • Page 40: Removable Storage

    7. Driver and application software installation 1. Drivers When the camera is connected to a PC, you will be able to use the camera as removable storage or PC webcam. Removable storage The digital video camera is able to provide removable storage functions as a card reader. You can use this camera as an SD card, removable disk.

  • Page 41: Load The Driver

    1. Press the install button to install the drivers. 2. Please follow the on screen instructions. 3. Press “Finish” to restart the PC and complete the driver installation. Load the driver 1. Insert the included CD into the CD-ROM. 2. If the CD does not auto-run, use Windows file manager to run the executable InstallMgr.exe under the root directory on the CD.

  • Page 42: Presto! Mr. Photo

    3 . Presto! Mr. Photo Presto! Mr. Photo is an advanced application software for photo editing. Install Presto! Mr. Photo: 1. Insert the included CD into the CD-ROM. 2. If the CD does not auto-run, use Windows file manager to run the executable InstallMgr.exe under the root directory on the CD.
  • Page 43 5. Please follow the instructions and use “Browse” to choose the installation path to use, press “Next” to continue.
  • Page 44 6. Please choose the name of the folder to install program, and press “Next” to continue. 7. At the install additional tasks screen, press “Next” to continue. 8. At the ready to install screen, press “Install” to begin installation.
  • Page 45 9. Install in progress. To stop installation, please press “Cancel”. 10. The screen below will be shown after installation is complete, press “Finish” to end program installation.

  • Page 46: User's Manual

    5. user’s Manual You can download the user’s manual in a wide range of languages and following the instructions below. To view the user’s manual: Insert the supplied CD-ROM in the CD-ROM drive. If the CD-ROM doesn’t automatically boot, use Windows Explorer to execute the InstallMgr.exe file in the root directory.

  • Page 47: Appendix: Digital Video Camera Specificaions

    8. Digital video camera specifications Digital video camera specifications: ● Lens: f=7.35 mm 5.17Mega pixel CMOS ● Sensor: ● Aperture: F / 3.2 ● Exposure: ISO 100 ● White balance setting: Auto, sunlight, light bulb, florescent light, cloudy ● Shutter: electrical shutter ●...

  • Page 48: Troubleshooting

    9.Troubleshooting When the digital video camera hangs during operation and cannot accept When the digital video camera hangs during operation and cannot accept input, please check the battery contacts and then restart. If not able to input, please check the battery contacts and then restart. If not able to System hangs System hangs restart, check if unnecessary operation has caused damage to digital...
  • Page 49 Website: Please visit our website at www.dxgusa.com for any product updates or special announcements. You can also check out our online support desk where you can register your product, send emails to our technical support, and find a list of frequently asked questions (FAQs).
