- Page 1 DVDO-Splitter-12-CAT 4K 1x2 HDMI Splitter with CAT Outputs User Manual Version v1.0 DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
-
Page 2: Table Of Contents
Please keep this manual for future reference. Surge protection device recommended DVDO-Splitter-12-CAT contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. -
Page 3: Introduction
1. Introduction DVDO-Splitter-12-CAT is an 18Gbps HDMI 1x2 splitter that can distribute 1 HDMI source signal to any 2 display devices, with video resolutions up to 4K2K@50/60Hz 4:4:4. It is designed with 1 HDMI loop output and 2 CAT outputs. The HDMI signal transmission distance can be extended up to 115ft/35m at the resolution of 4K2K@60Hz, or 164ft/50m at 4K2K@30Hz, or 197ft/60m at 1080p@60Hz via a single CAT6/6a/7 cable. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP 2.2 / 1.x HDCP Compliance Video Bandwidth 594MHz / 18Gbps Input: 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz Video Resolution Loop Out: 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz 8-bit, 10-bit, 12-bit (1080p@60Hz) Color Depth 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) 8-bit (4K2K@60Hz YUV 4:4:4) Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0... -

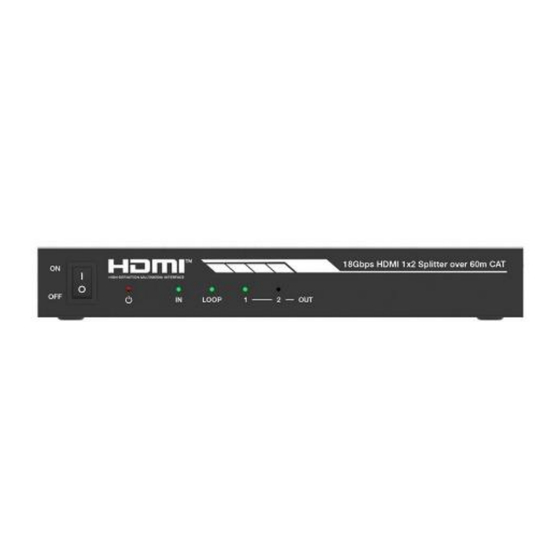

Page 5: Operation Controls And Functions
Mechanical Housing Metal Enclosure Black Silkscreen Color Transmitter: 175mm (W) × 100mm (D) × 25mm (H) Dimensions Receiver: 88mm (W) × 61mm (D) × 18mm (H) Weight Transmitter: 485g / Receiver:155g Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption 8.28W (Max.) Operation... - Page 6 Rear Panel Name Function Description AUDIO OUT Coaxial/analog audio output port, connected to an amplifier or speaker. (COAX, L/R) IN: HDMI input port, connected to HDMI source device such as DVD or set-top box with an HDMI cable. HDMI port LOOP OUT: HDMI loop output port, connected to the HDMI display device such as TV or Monitor with an HDMI cable.
-
Page 7: Cat Receiver
Name Function Description EDID DIAL Used to set EDID mode. Please refer to “6. EDID Mode” for details. switch Used for firmware update or serial port command control. SERVICE Please refer to “7. ASCII Commands” for details. port 5.2 CAT Receiver Function Description Name HDMI output port, connect to HDMI display device such as... -
Page 8: Ir Pin Definition
5.3 IR Pin Definition Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. 6 / 11... -
Page 9: Edid Mode
6. EDID Mode Below is the list of EDID settings for DVDO-Splitter-12-CAT: EDID Mode EDID Description 11111 1080p, Stereo Audio 2.0 11110 1080p, Dolby/DTS 5.1 11101 1080p, HD Audio 7.1 11100 1080i, Stereo Audio 2.0 11011 1080i, Dolby/DTS 5.1 11010 1080i, HD Audio 7.1... -
Page 10: Ascii Commands
SERVICE port of the unit to a PC with a USB cable. Then, open a Serial Command tool on a PC to send ASCII commands to control the unit. Below is the list of ASCII commands for DVDO-Splitter-12-CAT: ASCII Commands Serial port protocol. - Page 11 Function Description Example Feedback Command Code Default Setting Output Setting Enable hdmi loop out Set hdmi loop output stream stream s hdmi stream 1! s hdmi stream z! on/off enable Disable hdmi loop out z=0~1 (0:disable,1:enable) stream Enable cat output 1 stream Disable cat output 1 s cat 1 stream 1!
- Page 12 Function Description Example Feedback Default Setting Command Code EDID Setting Set input EDID from default EDID z, z=1~24 1, 1080p,Stereo Audio 2.0 2, 1080p,Dolby/DTS 5.1 3, 1080p,HD Audio 7.1 4, 1080i,Stereo Audio 2.0 5, 1080i,Dolby/DTS 5.1 6, 1080i,HD Audio 7.1 7, 3D,Stereo Audio 2.0 8, 3D,Dolby/DTS 5.1 9, 3D,HD Audio 7.1...
-
Page 13: Application Example
8. Application Example The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. 11 / 11... - Page 14 Follow us DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com 12 / 11...
