Summary of Contents for DVDO DVDO-Splitter-14-SE

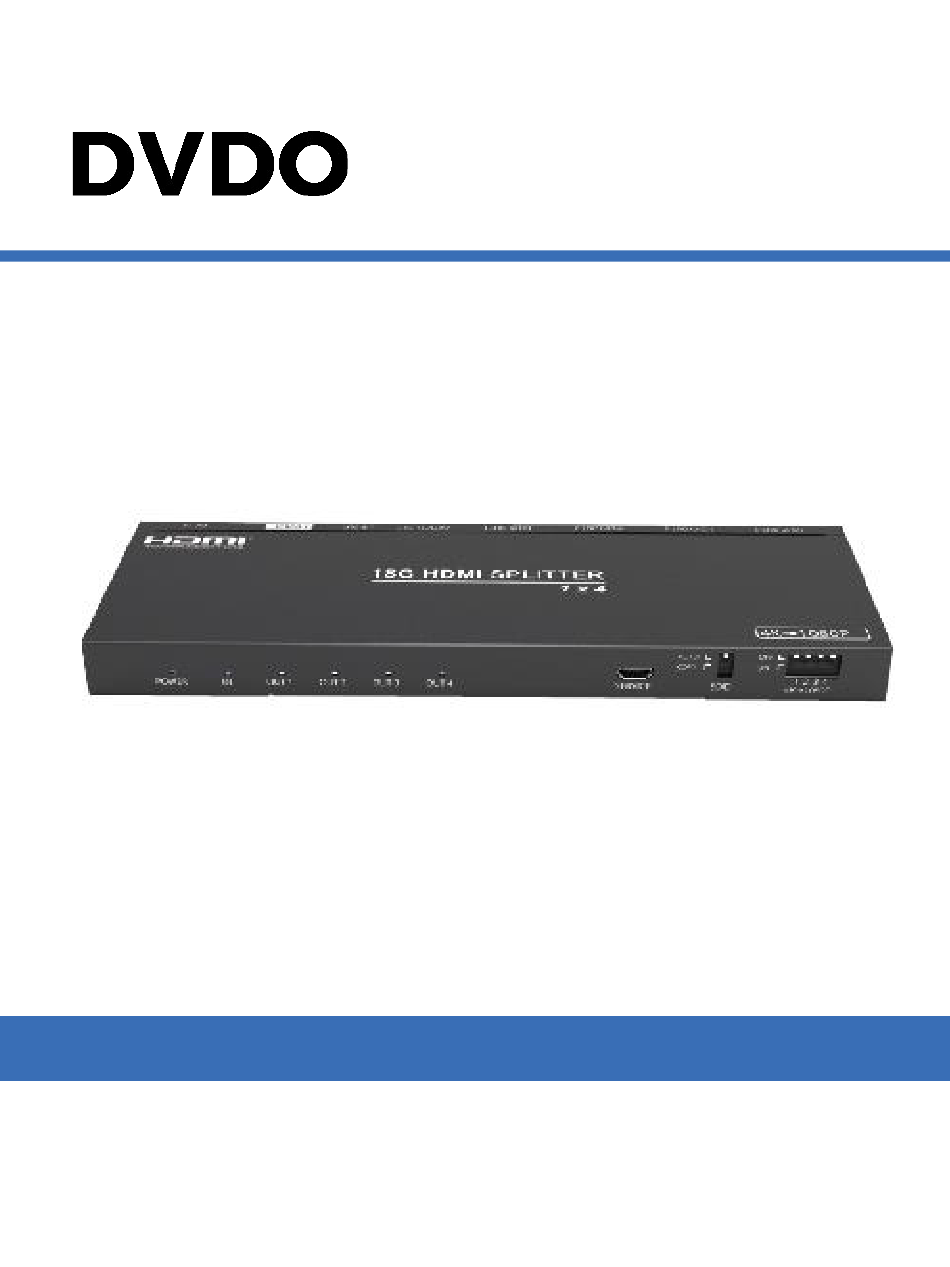

- Page 1 DVDO-Splitter-14-SE 1x4 HDMI 2.0 18Gbps Splitter with Scaler / Audio Extraction User Manual Version 1.0.0...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..............3 2. Features ................3 3. Package Contents ............4 4. Specifications ..............5 5.Operation Controls and Functions ........7 5.1 Front Panel ............. 7 5.2 Rear Panel .............. 9 6. Application Example ............10... -
Page 4: Introduction
1. Introduction The 1x4 HDMI 2.0 Splitter simultaneously routes one HDMI source to four HDMI displays. It supports resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extraction from HDMI source to optical and analog outputs. It can select COPY, AUTO modes for EDID setting. -
Page 5: Package Contents
(COPY: Copies OUT 1 port EDID setting to all output ports, If no HDMI OUT 1 EDID is detected then the unit will copy HDMI OUT 2. If no HDMI OUT 1 and 2 EDID is detected then the unit will copy HDMI OUT 3, etc. The priority order is OUT 1 to OUT 4. - Page 9 transmit the best EDID signal to source device, the source device will transmit again the EDID signal to all outputs. • COPY: Copy the HDMI OUT 1 port EDID setting to source device (If no HDMI OUT 1 capable EDID is detected then the unit will copy HDMI OUT 2.
-
Page 11: Application Example
6. Application Example...
