For Windows
Name and Function of
Parts (continue)
E
List View pane
Displays the clips in the media or folder that is selected in the
Tree View pane.
You can select from the following three view modes in the list
view setting under B Toolbar:
Thumbnail.
A mark indicating the status of the clip is display on the
thumbnail shown as follows. This also applies to List/Details
view.
View mode Icon
Thumbnails
view
T1
: Clips with OK status can be moved or deleted by this
application.
T2
: A video that exceeds 4 GB will automatically be
saved as multiple clips. These clips are parts of the
complete recording and can be saved on multiple
media. All of the original recorded video is not played
back when a split clip is played back.
T3
: A clip that cannot be played or displayed properly by
this application. The file may be corrupted, file links
may be broken or changed, required files may be
missing, or thumbnail creation may have failed.
T4
: When another application is using the clip file.
Details, List and
Description
Normal clip
Clip with OK status (as
set on the recorder) T1
One of the smaller
clips into which a
longer recording has
been split (a frame is
displayed around it) T2
Imported MP4 clip
Unregistered MP4 clip
(clip that has not been
imported)
Abnormal clip T3 T4

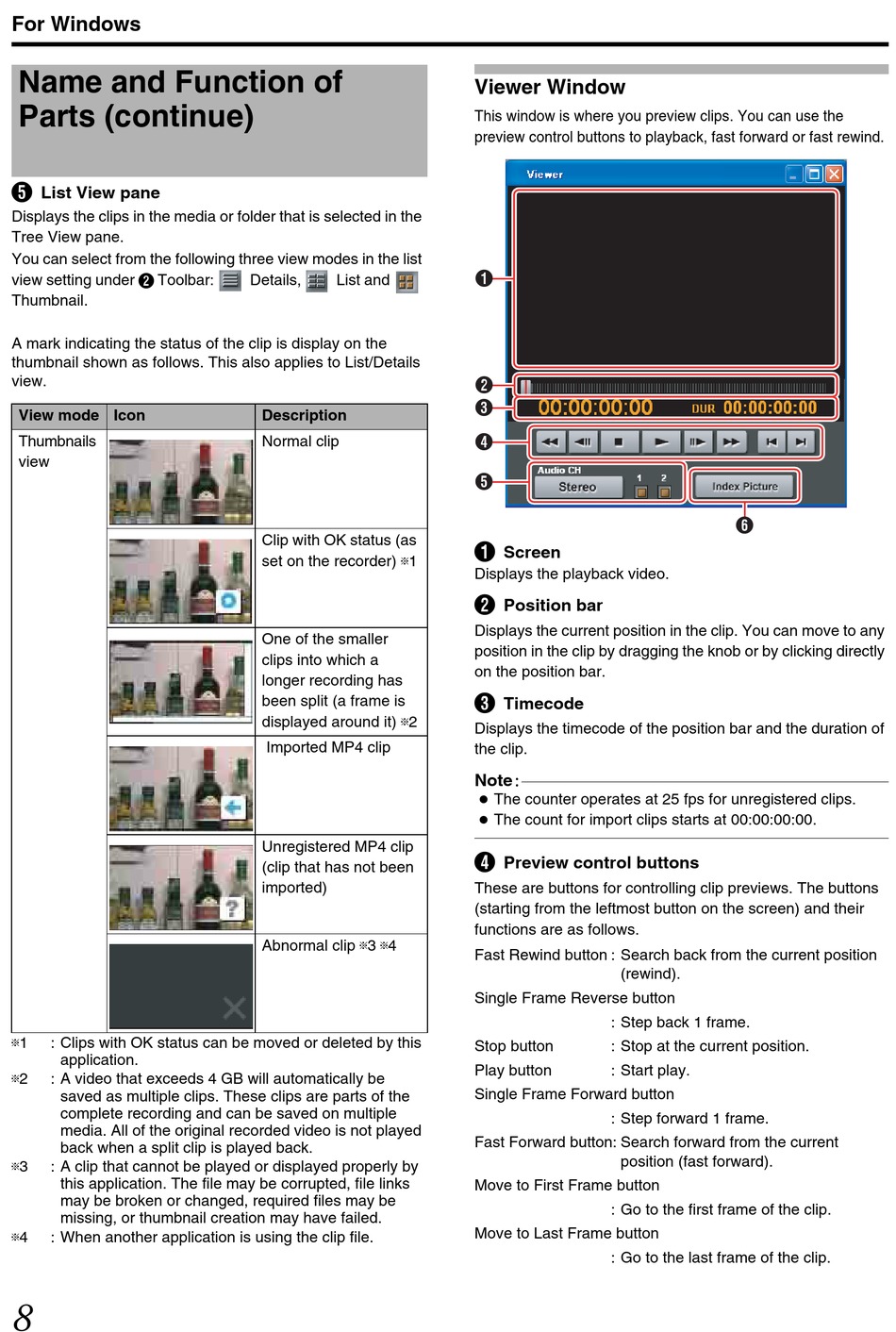

Viewer Window

This window is where you preview clips. You can use the
preview control buttons to playback, fast forward or fast rewind.
A
B
C
D
E
A
Screen
Displays the playback video.
B
Position bar
Displays the current position in the clip. You can move to any
position in the clip by dragging the knob or by clicking directly
on the position bar.
C
Timecode
Displays the timecode of the position bar and the duration of
the clip.
Note ：
● The counter operates at 25 fps for unregistered clips.
● The count for import clips starts at 00:00:00:00.
D
Preview control buttons
These are buttons for controlling clip previews. The buttons
(starting from the leftmost button on the screen) and their
functions are as follows.
Fast Rewind button : Search back from the current position
(rewind).
Single Frame Reverse button
: Step back 1 frame.
Stop button : Stop at the current position.
Play button : Start play.
Single Frame Forward button
: Step forward 1 frame.
Fast Forward button: Search forward from the current
position (fast forward).
Move to First Frame button
: Go to the first frame of the clip.
Move to Last Frame button
: Go to the last frame of the clip.
