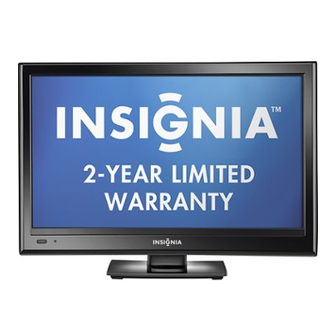

Insignia NS-19E720A12 User Manual
15"/19"/22"/24" led-lcd tv
Hide thumbs
Also See for NS-19E720A12:
- User manual (74 pages) ,
- Manual de l'utilisateur (74 pages) ,
- Information importante (16 pages)
Related Manuals for Insignia NS-19E720A12
Summary of Contents for Insignia NS-19E720A12
-
Page 1: User Guide
User Guide 15"/19"/22"/24" LED-LCD TV NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12... -
Page 2: Table Of Contents
Contents CHILD SAFETY ...........1 Important safety instructions . - Page 3 Contents Adjusting the sound ......... . . 34 Adjusting sound settings .
- Page 4 Legal notices ........... 64 Two-year limited warranty - Insignia Televisions ....65 US and Canada Markets .
-
Page 5: Child Safety
CHILD SAFETY It makes a difference how and where you use your flat panel display As you enjoy your new product, keep these safety tips in mind The issue The home theater entertainment experience is a growing trend, and larger TVs are popular purchases. -
Page 6: Important Safety Instructions
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Important safety 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as instructions power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the... -
Page 7: Cautions
Replacement parts Outdoor antenna grounding When replacement parts are required, make sure If an outside antenna or cable system is connected that the service technician uses replacement parts to your TV, make sure that the antenna or cable specified by the manufacturer that have the same system is grounded to provide some protection characteristics as the original part. - Page 8 NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 End of life directives Non-active pixels Your TV contains tin-lead solder and a fluorescent The LCD panel contains almost 3 million thin film lamp containing a small amount of mercury. transistors, which provide exceptionally sharp video Disposal of these materials may be regulated for quality.
-
Page 9: Introduction
SRS TruSurround HD: At Insignia, providing you with superior audio quality is just as important as exceptional picture quality. That's why we added SRS TruSurround HD, which provides you with a theater-like... -
Page 10: Installing The Stand Or Wall-Mount Bracket
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Installing the stand or 3 Make sure that the wide portion of the stand base faces the front of your TV, align the base to the stand column, then secure the base to the wall-mount bracket column with the provided screw. -
Page 11: Installing A Wall-Mount Bracket
Insignia 15"/19"/22"/24" LED-LCD TV Installing a wall-mount bracket NS-19E720A12 (19-inch) 3.94 in. (100 mm) Warning This TV is intended to be supported by a UL Listed wall mount bracket with suitable weight/load. (See “Miscellaneous” on page 62.) To attach your TV to a wall-mount bracket:... -
Page 12: Tv Components
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV TV components Side controls MENU Package contents INPUT Remote control and batteries (2 AAA) Stand and stand column with screws Component video cable Audio cable Cleaning cloth Quick Setup Guide Front # Item Description Press to open the on-screen menu. For more MENU information, see “Navigating the menus”... -
Page 13: Jacks And Ports
Insignia 15"/19"/22"/24" LED-LCD TV Jacks and ports # Item Description 15-inch and 19-inch models Connect a USB flash drive to this jack. For more information, see “Connecting a USB flash drive” on page 24. Connect headphones to this jack. For more information, see “Connecting headphones”... - Page 14 NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV 22-inch and 24-inch models # Item Description Connect a USB flash drive to this jack. For more information, see “Connecting a USB flash drive” on page 24. Connect headphones to this jack. For more information, see “Connecting headphones” on (headphone) page 25.
-
Page 15: Remote Control
Insignia 15"/19"/22"/24" LED-LCD TV Remote control # Button Description Press to set the sleep timer. You can select Off, 5, 10, 15, 30, 60, 90, 120, 180, or 240 minutes. For more SLEEP information, see “Setting the sleep timer” on page 47. -
Page 16: Making Connections
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Making connections Connection type Cable connectors and jack What connection should I use? Your TV has several connection types for Digital optical connecting devices to your TV. audio (SPDIF) For the best video quality, you should connect a device to the best available connection. -
Page 17: Connecting Power
Insignia 15"/19"/22"/24" LED-LCD TV Connecting power 22-inch and 24-inch models To connect the power: • Plug the AC power cord into a power outlet. HDMI cable Cautions • Your TV should only be operated from the power source indicated on the label. - Page 18 NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Using DVI (same as HDMI but requires a sound 5 Connect a 3.5 mm audio cable (not included) to connection) the PC AUDIO IN jack on your TV and to the AUDIO OUT jack on the cable or satellite box.
- Page 19 Insignia 15"/19"/22"/24" LED-LCD TV Using component video (better) 4 Connect an audio cable (included) to the AUDIO L/R next to the COMPONENT IN jacks To connect a cable or satellite box using on your TV and to the audio out jacks on the component video: cable or satellite TV box.
- Page 20 NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Using composite video (good) Using coaxial (good) To connect a cable or satellite box using To connect a cable or satellite box using coaxial: composite video: 1 Make sure that your TV’s power cord is 1 Make sure that your TV’s power cord is...
-
Page 21: Connecting An Antenna Or Cable Tv (No Box)
Insignia 15"/19"/22"/24" LED-LCD TV Connecting an antenna or cable TV (no box) Connecting a DVD or Blu-ray player Using HDMI (best) To connect an antenna or cable TV (no box): 1 Make sure that your TV’s power cord is To connect a DVD or Blu-ray player using HDMI: unplugged, and all connected equipment is 1 Make sure that your TV’s power cord is... - Page 22 NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Using DVI (same as HDMI but requires a sound 5 Plug your TV’s power cord into a power outlet, connection) turn on your TV, then turn on the DVD or Blu-ray player. To connect a DVD or Blu-ray player using DVI: 6 Press INPUT to open the INPUT SOURCE list.
- Page 23 Insignia 15"/19"/22"/24" LED-LCD TV Using component video (better) 3 Connect an audio cable to the AUDIO L/R jacks next to the COMPONENT IN jacks on your TV To connect a DVD or Blu-ray player using and to the L/R AUDIO OUT jacks on the component video: component video device.
-
Page 24: Composite Video
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Using composite video (good) 3 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the DVD or Blu-ray To connect a DVD or Blu-ray player using player. composite video: 4 Press INPUT to open the INPUT SOURCE list. -
Page 25: Connecting A Vcr
Insignia 15"/19"/22"/24" LED-LCD TV Connecting a VCR 3 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the VCR. To connect a VCR: 4 Press INPUT to open the INPUT SOURCE list. 1 Make sure that your TV’s power cord is 5 Press to select AV, then press ENTER. -
Page 26: Connecting A Camcorder Or Game Console
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Connecting a camcorder or game console 3 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the camcorder or Note game console. If your camcorder or game console has an HDMI 4 Press INPUT to open the INPUT SOURCE list. -
Page 27: Connecting A Computer
Insignia 15"/19"/22"/24" LED-LCD TV Connecting a computer 3 Connect an audio cable with stereo mini plug to the PC IN AUDIO jack on your TV and to the LINE OUT or AUDIO OUT jack on the computer. Some computers have an HDMI jack. You can use an 4 Plug your TV’s power cord into a power outlet,... -
Page 28: Connecting A Usb Flash Drive
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Using HDMI Connecting a USB flash drive To connect a computer using HDMI: To connect a USB flash drive: 1 Make sure that your TV’s power cord is • Plug a USB flash drive into the USB port on unplugged and the computer is turned off. -
Page 29: Connecting Headphones
Insignia 15"/19"/22"/24" LED-LCD TV Connecting headphones Connecting a basic home theater system The TV speakers are muted when headphones are Using digital audio output (22-inch and 24-inch only) attached. To connect a basic home theater system using Warning digital audio output: Loud noise can damage your hearing. -
Page 30: Connecting A Home Theater System With Multiple Devices
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Using analog audio output Connecting a home theater system with multiple devices To connect a basic home theater system using analog audio output: Notes 1 Make sure that your TV’s power cord is When connecting an AV receiver with the ARC unplugged and the home system is turned off. -
Page 31: Using The Remote Control
Insignia 15"/19"/22"/24" LED-LCD TV Using the remote control Aiming the remote control To aim the remote control: Installing remote control batteries • Point the remote control towards the remote sensor on the front of your TV. To install the remote control batteries:... -
Page 32: Turning On Your Tv For The First Time
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Turning on your TV for the 5 Press to highlight Time Zone, then press to select your time zone. You can select Eastern, Central, Mountain, Pacific, Alaska, first time Hawaii, Newfoundland, or Atlantic. 6 Press... -
Page 33: Understanding The Basics
Insignia 15"/19"/22"/24" LED-LCD TV 11 Press to highlight Antenna, Cable, or Selecting the video input source Cable/Satellite Box (if your cable TV uses a box, select Cable/Satellite Box), then press ENTER. To select the video input source: If you chose Antenna or Cable, your TV 1 Turn on your TV, then press INPUT. -
Page 34: On-Screen Menu Overview
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV On-screen menu overview Settings menu (TV mode) Notes • Depending on the signal source selected, you Picture Audio Channels Settings may see different options on your screen. The Settings following menus are shown in TV mode (except Parental Controls the USB menu). -
Page 35: Selecting A Channel
Insignia 15"/19"/22"/24" LED-LCD TV Selecting a channel Viewing system information To select a channel: To view system information: • Press CH or CH to go to the next or previous 1 Press MENU. The on-screen menu opens. channel on the memorized channel list. -
Page 36: Adjusting The Picture
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Adjusting the picture • Tint—Adjusts the color balance of the picture. Use this control to make skin tones look more natural. Adjusting the TV picture • Sharpness—Adjusts the color detail of images. If you set this control too high, dark To adjust the TV picture: images may appear with light or white edges. -
Page 37: Adjusting The Computer Image
Insignia 15"/19"/22"/24" LED-LCD TV • Overscan—Adjusts the picture’s 3 Press to highlight Settings, then press reproduction rate. You can select On or or ENTER. The Settings menu opens. Off. • Color Temperature—Selects the color temperature. You can select Cool (to... -
Page 38: Adjusting The Sound
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Adjusting the sound • Audio Language—(Digital channels only) Selects an alternate audio language, if available. Adjusting sound settings • MTS/SAP—(Analog channels only) Selects the audio mode. You can select: To adjust sound settings: • MONO—Select this option if there is noise 1 Press MENU. -
Page 39: Changing Channel Settings
Insignia 15"/19"/22"/24" LED-LCD TV 4 Press to select On. 3 Press to highlight Auto Channel Search, then press ENTER. The Channels-Auto Channel 5 Press MENU to return to the previous menu, or Search screen opens. press EXIT to close the menu. -
Page 40: Hiding Channels
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Hiding channels 4 Press to highlight the channel you want to hide, then press ENTER. The check mark You can hide channels in the channel list. When you disappears. press CH or CH , your TV skips the hidden channels. -
Page 41: Viewing A Favorite Channel
Insignia 15"/19"/22"/24" LED-LCD TV 3 Press to highlight Favorites, then press 2 Press to highlight Channels, then press ENTER. The Channels-Favorites screen opens. or ENTER. The Channels menu opens. Picture Audio Channels Settings Picture Audio Channels Settings Channels- Channels Favorites 1.1 - CH1... -
Page 42: Checking The Digital Signal Strength
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV 6 When you have completed the label, press Turning Auto Zoom on or off MENU. When Auto Zoom is turned on and Auto aspect 7 Press EXIT to close the menu. ratio is selected, your TV automatically adjusts the... -
Page 43: Setting Parental Controls
Insignia 15"/19"/22"/24" LED-LCD TV Setting parental controls 3 Press ENTER. The Enter Password screen opens. Setting or changing the password Picture Audio Channels Settings Settings- Parental Controls Parental controls let you prevent your children from watching inappropriate material on TV. When set,... -
Page 44: Locking Control Buttons
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV 6 Press the number buttons to enter a password, 3 Press ENTER. The Enter Password screen opens. then enter the password again. “Password successfully changed” is displayed. Picture Audio Channels Settings Note Settings- Parental Controls If you forget your password, enter 9999. -
Page 45: Blocking Unrated Tv
Insignia 15"/19"/22"/24" LED-LCD TV Blocking unrated TV 4 Press the number buttons to enter the four-digit password. The Settings-Parental Controls menu To block unrated TV: opens. 1 Press MENU. The on-screen menu opens. Picture Audio Channels Settings Settings- Parental Controls... -
Page 46: Setting Parental Control Levels
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Setting parental control levels 4 Press the number buttons to enter the four-digit password. The Settings-Parental Controls menu You can set parental controls for the U.S. and opens. Canada. To set parental control levels: Picture... -
Page 47: Downloading Rating Information
Insignia 15"/19"/22"/24" LED-LCD TV 7 Press to select the rating. If a rating has Canadian French ratings sub-ratings, press to highlight a sub-rating. Exempt programming General audiences Note 8ans+ Suitable for children 8 and older When you block a rating, that rating and all higher... -
Page 48: Using Closed Captioning
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Using closed captioning 3 Press ENTER. The Enter Password screen opens. Turning closed captioning on or off Picture Audio Channels Settings Settings- Parental Controls To turn closed captioning on or off: 1 Press MENU. The on-screen menu opens. -
Page 49: Selecting The Analog Closed Captioning Mode
Insignia 15"/19"/22"/24" LED-LCD TV 5 Press to select CC Off (turns off closed 3 Press to highlight Closed Caption, then captioning), CC On (turns on closed captioning), press ENTER. The Settings-Closed Caption menu or CC On When Mute (turns on closed opens. -
Page 50: Adjusting Time Settings
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV 2 Press to highlight Settings, then press 8 Press to highlight an option, then press or ENTER. The Settings menu opens. ENTER. You can select: • Size—Selects the font size. • Font—Selects the font style. -
Page 51: Setting The Sleep Timer
Insignia 15"/19"/22"/24" LED-LCD TV 3 Press to highlight Time, then press Setting the sleep timer ENTER. The Settings-Time menu opens. You can specify the amount of time before your TV automatically turns off. Picture Audio Channels Settings To set the sleep timer:... -
Page 52: Adjusting Menu Settings
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV 5 Press to select the amount of time before 3 Press to highlight Menu Settings, then your TV turns off automatically. To turn off the press ENTER. The Settings-Menu Settings menu sleep timer, select Off. -
Page 53: Labeling An Input Source
Insignia 15"/19"/22"/24" LED-LCD TV 2 Press to highlight Settings, then press 2 Press to highlight Settings, then press or ENTER. The Settings menu opens. or ENTER. The Settings menu opens. Picture Audio Channels Settings Audio Picture Channels Settings Settings Settings... -
Page 54: Restoring Settings To The Defaults
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Using INlink Restoring settings to the defaults When you restore default settings, all the settings you have customized (except the password and INlink lets you control HDMI CEC-compatible parental rating) are reset. devices connected to the HDMI jacks on your TV using the remote control that came with your TV. -
Page 55: Turning Device Auto Power Off On Or Off
Insignia 15"/19"/22"/24" LED-LCD TV 3 Press to highlight INlink, then press 2 Press to highlight Settings, then press ENTER. The Settings-INlink menu opens. or ENTER. The Settings menu opens. Audio Picture Audio Channels Settings Picture Channels Settings Settings Settings -INlink... -
Page 56: Turning Tv Auto Power On On Or Off
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Turning TV Auto Power On on or off 5 Press to select On (turns on your TV when you turn on the connected device) or Off When INlink is turned on and you turn on a DVD or... -
Page 57: Displaying A List Of Inlink-Compatible (Hdmi Cec) Devices
Insignia 15"/19"/22"/24" LED-LCD TV 3 Press to highlight INlink, then press 2 Press to highlight Settings, then press ENTER. The Settings-INlink menu opens. or ENTER. The Settings menu opens. Picture Audio Channels Settings Picture Audio Channels Settings Settings Settings -INlink... -
Page 58: Waking Inlink-Compatible (Hdmi Cec) Devices
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Waking INlink-compatible (HDMI CEC) 5 Press MENU to return to the previous menu, or press EXIT to close the menu. devices When a connected INlink-compatible device is in Opening an INlink-compatible device’s root standby mode, use the Connect option to wake menu (turn on) the device. -
Page 59: Using A Usb Flash Drive
Insignia 15"/19"/22"/24" LED-LCD TV 4 Press to highlight Root Menu, then press 3 Press or ENTER to access the menu. Photos is ENTER. The device’s root menu opens, and you highlighted. can use the TV’s remote control to control the device. -
Page 60: Viewing Favorite Photos
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV • FAVORITE to add or remove a photo from the 3 Press or ENTER to access the menu. Photos is favorite photo list. A heart appears on a photo highlighted. that has been added to the favorite photo list. -
Page 61: Viewing Photos In A Slideshow
Insignia 15"/19"/22"/24" LED-LCD TV Viewing photos in a slideshow 5 If you want to view all the photos on the USB flash drive, press to highlight Browse You can view your photos in a slideshow. Photos, press ENTER, then press MENU to return to the USB-Photos menu. -
Page 62: Customizing Slideshow Settings
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Customizing slideshow settings 5 Press to highlight Settings, then press ENTER. The USB-Photo-Settings menu opens. You can customize the slideshow settings, including Repeat, Shuffle, Speed, and Transition. Picture Audio Channels Settings To customize slideshow settings: Photos-Settings 1 Switch to USB mode. -
Page 63: Maintaining
Insignia 15"/19"/22"/24" LED-LCD TV Maintaining Problem Solution Dark, poor, or no picture • Try another channel. The station may be (screen is lit), but sound is • Do not use your TV in areas that are too hot or too experiencing problems. -
Page 64: Remote Control
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Problem Solution Problem Solution Dotted lines or stripes No output from one of the • Make sure that the antenna or cable TV is • Adjust the audio balance. See “Adjusting sound appear on the screen. -
Page 65: Specifications
TV provider. Warranty • Make sure the antenna or cable/satellite TV is connected securely to your TV. NS-15E720A12 NS-19E720A12 NS-22E730A12 NS-24E730A12 • Try replacing the cable between the antenna/cable or cable/satellite box and your Parts: 2 years... - Page 66 NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Horizontal viewing angle NS-15E720A12 1 (side) (all models) : 80 Support JPEG and firmware upgrade NS-19E720A12: Headphone 1 (side) (all models) NS-22E730A12: NS-24E730A12: Outputs Vertical viewing angle NS-15E720A12 : 45 Video No (all models) NS-19E720A12:...
-
Page 67: Programming Universal Remote Controls
Insignia TV codes for universal remote controls (for all You can operate your Insignia TV with a new or Insignia TVs manufactured after Jan. 1, 2007) existing universal remote control. To program a different universal remote control: Universal remote control makes and models 1 See the table below for common codes. -
Page 68: Legal Notices
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV Legal notices Dolby License Notice and Trade ark Acknowledgement Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol FCC Part 15 are trademarks of Dolby Laboratories. HDMI This device complies with Part 15 of the FCC Rules. Operation of... -
Page 69: Two-Year Limited Warranty - Insignia Televisions
Contact Insignia: parts replaced under this warranty become the property of For customer service please call 1-877-467-4289 Insignia and are not returned to you. If service of Products or www.insigniaproducts.com parts are required after the Warranty Period expires, you must Distributed by Best Buy Purchasing, LLC pay all labor and parts charges. - Page 70 7601 Penn Avenue South, Richfield, MN USA 55423-3645 © 2011 BBY Solutions, Inc. All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
