15"/19"/22"/24" LED-LCD TV

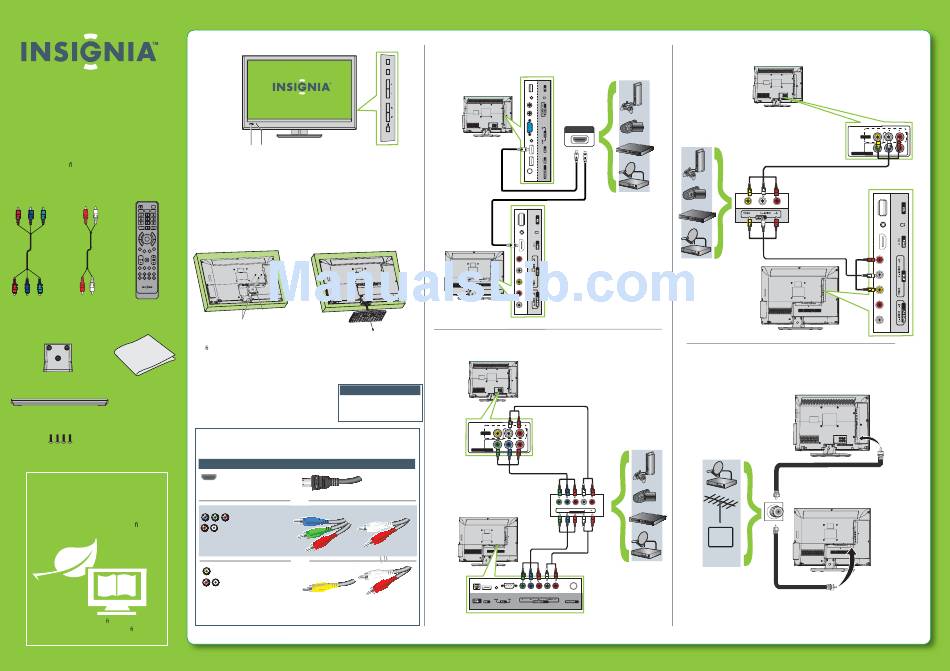

QUICK SETUP GUIDE
NS-15E720A12/NS-19E720A12
NS-22E730A12/NS-24E730A12
Thank You
for purchasing this ne Insignia television. We hope you
enjoy the quality and reliability of this product for years
to come.
_______________________________
TV
COMP HDMI VIDEO
ENTER
INPUT CCD
CH-LIST FAVORITE
+
MUTE
SLEEP ZOOM MTS/SAP PICTURE
AUDIO
Component cable Remote control
Audio cable
and 2 AAA
batteries
Stand column
Cleaning cloth
Stand base
4 screws
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search eld,
then click Search.
Occasionally, Insignia posts rmware updates to
improve your product. To download rmware
updates, go to www.insigiaproducts.com.
Front features
Remote Power
control sensor indicator
Installing the stand
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Attach the stand column to the back of the TV, and then secure the stand
column to the TV with the three provided screws.
3 Align the stand base to the stand column, then secure the stand base to
the stand column with the provided screw.
Stand column
Locating grooves
Installing a wall-mount bracket
If you are mounting the 15" or 19" and plan on using the back inputs, a low
pro le wall mount may not work with your TV.
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the three screws holding the TV to its stand column.
3 Remove the stand column.
Warning
4 Attach the wall-mount bracket to your TV using
the mounting holes on the back of your TV. See
This apparatus is intended to be
the instructions that came with the wall-mount supported by a UL Listed
wall mount bracket.
bracket for information about how to correctly
hang your TV.
Identifying cables
Your TV has several connection types for connecting devices. For the best video
quality, connect a device to the best available connection.
Connection type
Video quality Cable connector
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use an HDMI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray DVD player, cable
box, satellite receiver, or game station
MENU
INPUT Using an HDMI cable (best)
VOL
CH
15" and 19" model only
22" and 24" model only
Using component cables (better)
15" and 19"
model only
VIDEO L AUDIO R
AV IN
COMPONENT IN Y P P
B R
22" and 24"
model only
Y
Using composite cables (good)
HDMI OUT
22" and 24"
model only
Connecting an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE IN jack on the
back of your TV and to the Antenna/Cable wall jack.
P P L AUDIO R
B R
COMPONENT OUT
CABLE
15" and 19"
model only
VIDEO L AUDIO R
AV IN
COMPONENT IN Y P P
B R
15" and 19"
model only
22" and 24"
model only
