- Page 1 ViewPad E72 User Guide Guide de l’utilisateur Guía del usuario Guia do usuário Model No. VS14905...
-
Page 2: Compliance Information
Compliance Information FCC NOTICE The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC ID in the format FCC ID: GSS- VS14905 on the product label.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 3 The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: GSS-VS14905.
-
Page 4: Important Safety Instructions
Important Safety Instructions 1. DO NOT place objects on top of the ViewPad, as objects may scratch the screen. 2. DO NOT expose the ViewPad to dirty or dusty environments. 3. DO NOT place the ViewPad on an uneven or unstable surface. 4. -
Page 5: Copyright Information
® trademarks or registered trademarks of DataViz, Inc. All rights reserved. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 6: Product Registration
Purchase Date: ________________________________ Product disposal at end of product life ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more. USA & Canada: http://www.viewsonic.com/company/green/recycle-program/ Europe: http://www.viewsoniceurope.com/uk/kbase/article.php?id=639... -
Page 7: Table Of Contents
Chapter 1: Getting Started..............1 1.1 Your Device....................1 Front ......................1 Back ......................1 Top ......................1 Bottom ......................2 Left & Right ....................2 1.2 Accessories ....................2 1.3 Installing Memory Card................3 1.4 Charging Battery ..................3 1.5 Using Headsets ................... - Page 8 Reviewing a photo..................19 Configuring camera settings ..............19 6.2 Viewing Videos & Photos ................. 20 Playing videos ................... 20 Viewing photos ..................20 6.3 Playing music .................... 20 Playing music .................... 20 Managing playlists..................21 Chapter 7: Programs................22 7.1 Browser ......................
- Page 9 Specifications ..................... 32 Customer Support .................... 33 Limited Warranty ....................34 viii...
-
Page 10: Chapter 1: Getting Started

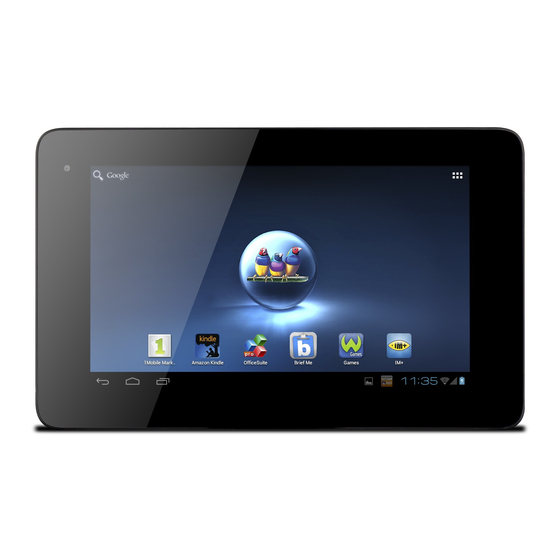

Chapter 1: Getting Started 1.1 Your Device Front Front camera Touch Screen Back Power LED indicator Power charging: Red ● Battery full: Blue ● Power Button Volume( Up/ Down) Return... -
Page 11: Bottom
Off in the event of a look-up caused by software or App error that prevents normal power off or restart. 1.2 Accessories Your package comes with the following items. If any of them are missing, please contact your retailer. • ViewPad E72 • AC adapter and plugs • Quick Start Guide • Compliance information... -
Page 12: Installing Memory Card
1.3 Installing MicroSD card ® You need a MicroSD card to store photos, music, videos, and other data. To install the MicroSD card 1. Insert the MicroSD card as shown. Make sure the gold contacts are facing down. Insert the microSD card towards the direction To remove the MicroSD card indicated by arrow. -
Page 13: Using Headsets
1.5 Using Headsets For listening to music, plug a headset to the headset jack. NOTE: • When using a headset, your ability to hear outside sounds may be limited. Do not use headset if it will endanger you. • When using a headset, do not set the volume to its maximum as it may damage your hearing. -
Page 14: Unlocking The Screen
1.7 Unlocking the Screen By default, the screen automatically locks after a period of inactivity. You can set the length of time until the screen locks. To unlock the screen 1. Press the Power button to turn on the display from Sleep mode. and drag the middle circle ( ) to to unlock the screen. -
Page 15: Chapter 2: The Basics
Chapter 2: The Basics 2.1 Home Screen From the Home screen, you can quickly access common features and view notifications of received messages, battery and connection status. Extended Home screen Swipe your finger to the left or right across the Home screen. The two extensions to the left and to the right of the Home screen provide more space for icons, widgets, shortcuts, and other items. -
Page 16: Shortcut Menu
Shortcut menu The shortcut menu allows you to easily access an application from the Home screen. To open an application, tap an icon. Customizing shortcut menu Home screen: Tap You can add apps and widgets to your home screen. - Page 17 Touch & hold to move icon. From this screen, you can add items to all home screen panels.Use panels to organize your Widgets and Apps.
-
Page 18: Using Widgets
To move or delete something, touch and hold on the icon, then drag it to another panel or to the icon at the top of the screen. Using widgets Save time with live updates right on the Home screen and get all your personalized updates in one place. -
Page 19: Application Drawer
Application drawer The Application Drawer contains all applications and settings. Tap to open the menu. • Tap an icon to access the application. Setting wallpaper Wallpapers : Long press on empty space on desktop to change your wallpaper. -
Page 20: Adjusting Volume
2.2 Adjusting Volume This device features three types of volume which can be adjusted separately: • Notifications volume: Set the volume for notifications. • Media volume: Set the volume for music, videos, games, & other media. • Alarm volume: Set the volume for alarms. To adjust the volume 1. -
Page 21: Setting Up Wi-Fi
2.3 Setting up Wi-Fi You need to connect to a wireless network before surfing the Internet or using the related applications that require internet connection. To turn Wi-Fi on or off 1. From the Home screen, tap > Settings > Wi-Fi. 2. -
Page 22: Chapter 3: Entering Information
Chapter 3: Entering Information 3.1 On-Screen Keyboard The on-screen keyboard appears when an application requires text input, such as messaging and writing emails. The keyboard input method is activated by default. Using the on-screen keyboard Tap the screen to display the on-screen keyboard. Lowercase keyboard Uppercase keyboard •... - Page 23 • Show correction suggestions : Select to display suggested words as you type. NOTE: Products shipped in certain regions include the Swype keyboard as the default input method. Press and hold the Swype icon on the keyboard to launch the Swype tutorial for more information...
-
Page 24: Chapter 4: Email
Chapter 4: Email Use Email to send and receive email messages via your internet email accounts. 4.1 Email Accounts Your device can send and receive emails just as you do with a computer. Your device supports email accounts provided by an Internet Service Provider (ISP) or web-based email, such as Hotmail, Yahoo! Mail, etc. -
Page 25: Sending An Email From Contacts
Sending an email from Contacts You can send an email to a contact with an email address stored in Contacts. 1. From the Home screen, tap > Contacts. 2. Tap a name to open contact. 3. Tap Email Home or Email Work. 4. -
Page 26: Chapter 5: Accessing The Internet
Chapter 5: Accessing the Internet 5.1 Browsing Web Pages 1. From the Home screen, tap > Browser. 2. Tap the address bar. 3. Type the URL. As you type, a list of URL suggestions appears on the screen. 4. Tap a match item in the list or enter the complete URL. Address bar Tap to update the... -
Page 27: Managing Web Pages
Managing web pages While viewing a web page, tap to configure the browser settings: • General: Select to set home page, and configure sync data and auto fill settings. • Privacy & Security: Select to configure privacy and security settings including cache, history, cookies, form data, location, and etc. -
Page 28: Chapter 6: Multimedia Applications
Chapter 6: Multimedia Applications 6.1 Videos and Photos Your device is equipped with a front camera for you to take photos and record videos. Taking a Photo 1. On the Home screen, tap > Camera. 2. Aim the device at the desired subject. 3. -
Page 29: Viewing Videos & Photos
6.2 Playing Photos and Videos The photos and videos you recorded are saved in the respective folder categories in Gallery by default. Viewing Photos 1. On the Home screen, tap > Gallery. 2. Tap Photos to view the images in thumbnails. 3. -
Page 30: Managing Playlist
Process bar Play forward or backward To view the playing list Turn on or off shuffle Repeat the current song or all songs, or turn off repeat NOTE: You can leave the playback screen and browse other pages without stopping the playback. -
Page 31: Chapter 7: Programs
Chapter 7: Programs Your device comes with the following pre-installed programs. Programs Description Browser Browse the web and download files from the Internet. Calculator Perform basic arithmetic functions, such as addition, subtraction, multiplication, and division. See page 23. Calendar Create and track schedule or appointments. Camera Capture photos. -
Page 32: Browser
7.1 Browser Open the Browser to view web pages. 7.2 Calculator With Calculator, you can perform basic arithmetic functions on your device. 1. From the Home screen, tap > Calculator. 2. Use the on-screen calculator keypads to perform arithmetic calculation. 7.3 Calendar The Calendar lets you schedule and sound alarms for appointments, meetings and other events. -
Page 33: Camera
1. From the Home screen, tap > Calendar. 2. Tap 3. Enter the event details. 4. Select the date and time for From and To fields. NOTE: For an all-day event, check All day. 5. To set repetition, select the repetition from the list. 6. -
Page 34: Managing Files
Managing files • To delete a file, tap the check box on the left side of the image. A green tick appears, tap Delete. • To sort the file by size, tap > Sort by size. • To sort the file by time, tap >... -
Page 35: Gallery
• To delete all files and folders, tap > More > Delete all. • To search for a file, tap > More > Search. 7.9 Gallery You can view your captured images, recorded video clips, and downloaded images in Gallery. 1. -
Page 36: Note Everything
7.14 Note Everything This full-featured note taking app makes it easy to create, view and manage text notes, as well as hand-drawn notes and voice recordings. 7.15 Sketcher Create beautiful drawings with the sketchpad app, featuring a variety of textured brushes and colors. -
Page 37: Chapter 8: Managing Your Device
Chapter 8: Managing Your Device 8.1 Wireless & networks From the Home screen, tap > Settings to view and adjust the settings of your device. Application Description WiFi Manage Wi-Fi connections, scan and connect to available Wi-Fi networks. Data Usage Mobile Data : Measured by your tablet. -
Page 38: Device Storage
8.4 Device Storage Application Description Internal storage Show available device storage on total space. Unmount SD card Unmount the SD card so you can safety remove it. Erase SD cad Erases all data on the SD card, such as music and photos. 8.5 Device battery Application Description... -
Page 39: Security
8.9 Security Application Description Screen lock Set up screen lock with none, Slide, Pattern, PIN or Password. Owner Information Show owner info on lock screen. Set up SIM card Set up SIM card lock info. lock Device administra- View or deactivate device administrator. tors Unknown sources Allow installation of non-Market apps. -
Page 40: Date And Time
8.12 Date and Time Application Description Automatic date Check to use network provided time. and time Automatic time Check to use network provided time zone. zone Set date Set the date. Set time Set the time. Select time zone Select the time zone of your current location. Use 24-hour Set the clock to 24-hour format. -
Page 41: Specifications
Specifications Connectivity Wi-Fi 802.11 b/g/n Mini HDMI Headphone 3.5 mm jack MicroSD 2GB/4GB/8GB/16GB/32GB USB 2.0 High-Speed client (micro-B type) Power Battery 1 cell battery pack (3300mAH, in series), unremovable AC Adapter AC input voltage: 100-240Vac, 50/60Hz AC input current: 300mAac max. DC output voltage: 5Vdc (typical) DC output current: 2A (typical) Temperature... -
Page 42: Customer Support
Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Mérida, Yucatán. Tel: 01.999.925.19.16 Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico Latin America (Peru) www.viewsonic.com/la/ T= 0800-54565 soporte@viewsonic.com... -
Page 43: Limited Warranty
Replacement product or parts may include remanufactured or refurbished parts or components. How long the warranty is effective: ViewSonic ViewPad are warranted for at least 1 year for labor from the date of the first customer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser. - Page 44 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based...
