KitchenAid KGSS907SBT - 30 Inch Slide-In Gas Range Parts List page 11

For Models: KGSS907SBL01, KGSS907SWH01, KGSS907SBT01, KGSS907SSS01
W10168525

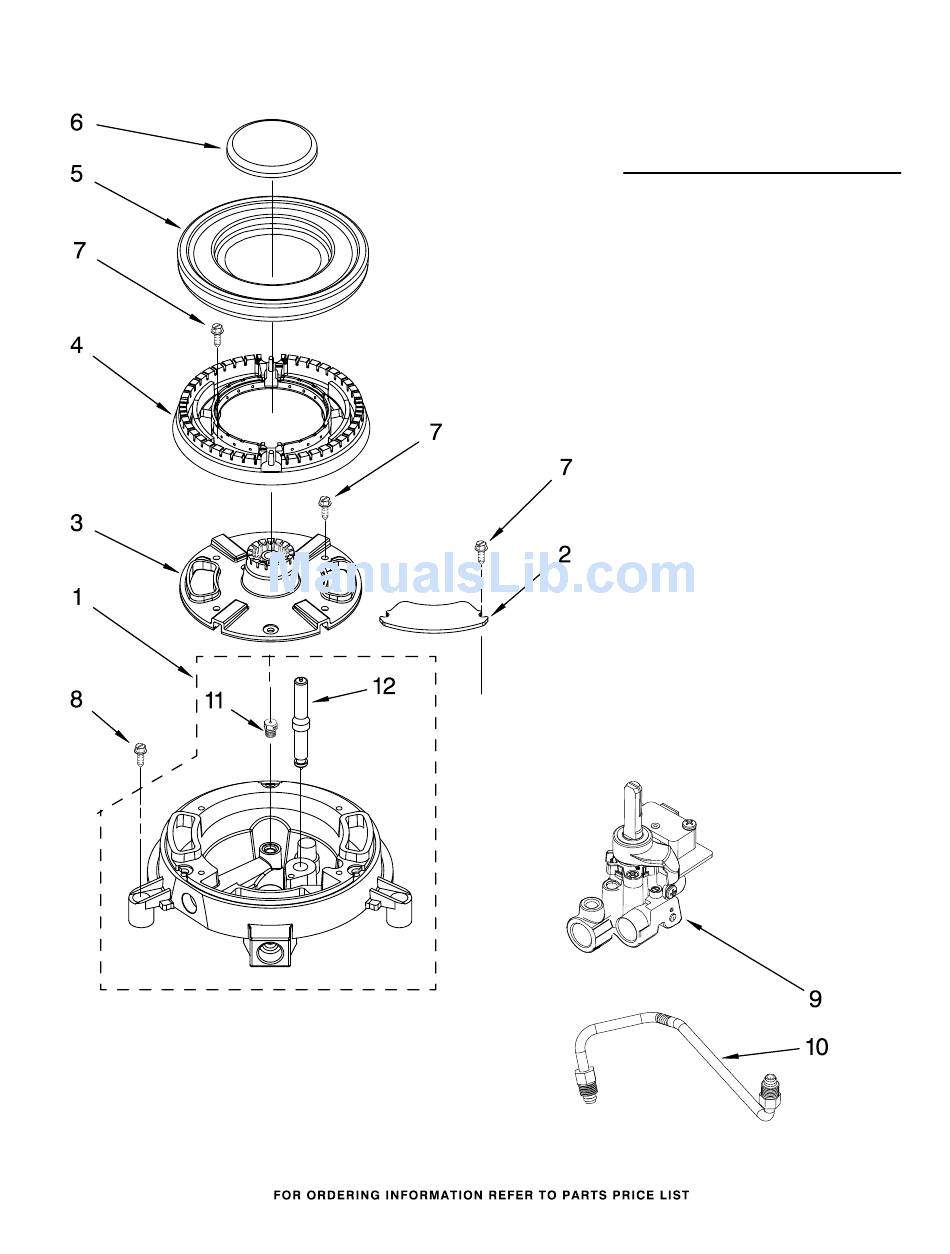

TRIPLE CROWN BURNER
(Black) (White)
11
(Biscuit) (Stainless)
Illus. Part
No. No.
1 9761639 Burner Assembly
2 8285250 Plate, Closure
3 8285255 Internal Head,
4 8285256 External Head,
5
8285258 Matte Black
8285258SD Satin Cumberland
8285258SN Satin Moleskin
6
9758829CB Matte Black
9758829SD Satin Cumberland
9758829SN Satin Moleskin
7 3400702 Screw
8 3400843 Screw
9 9760519 Valve, T.C.B.
10
9761072 Outer
9761071 Inner
11
9762443 Internal
9762442 External
12 9763494 Igniter
DESCRIPTION
Triple Crown
Burner
Triple Crown
Triple Crown
Burner
Cap, Burner
External
Cap, Burner
Internal
Tube, T.C.B. Gas
Orifice
