13.

I/R Remote Control

13.1

Specifications

13.1.1

Keys

13.1.2

Dimensions

13.1.3

Keypad Type

13.1.9

Case Material

13.1.4

LED

13.1.5

IR Emitter

13.1.6

Range

13.1.7

Power Supply

13.1.8

Power Consumption Appox. 50mA at IR

13.1.10

Operation Temp.

13.1.11

Storage Temp.

13.1.12

Humidity Range

condensing

13.1.14

Infrared Frequency

165x45x20

Silicone rubber

ABS plastic

Yes, Red

20-30ft, (6-9m)

2 x AAA Batteries

transmit

+5°C to +40°C

-40°C to +70°C

10% to 90% non-

38 KHz

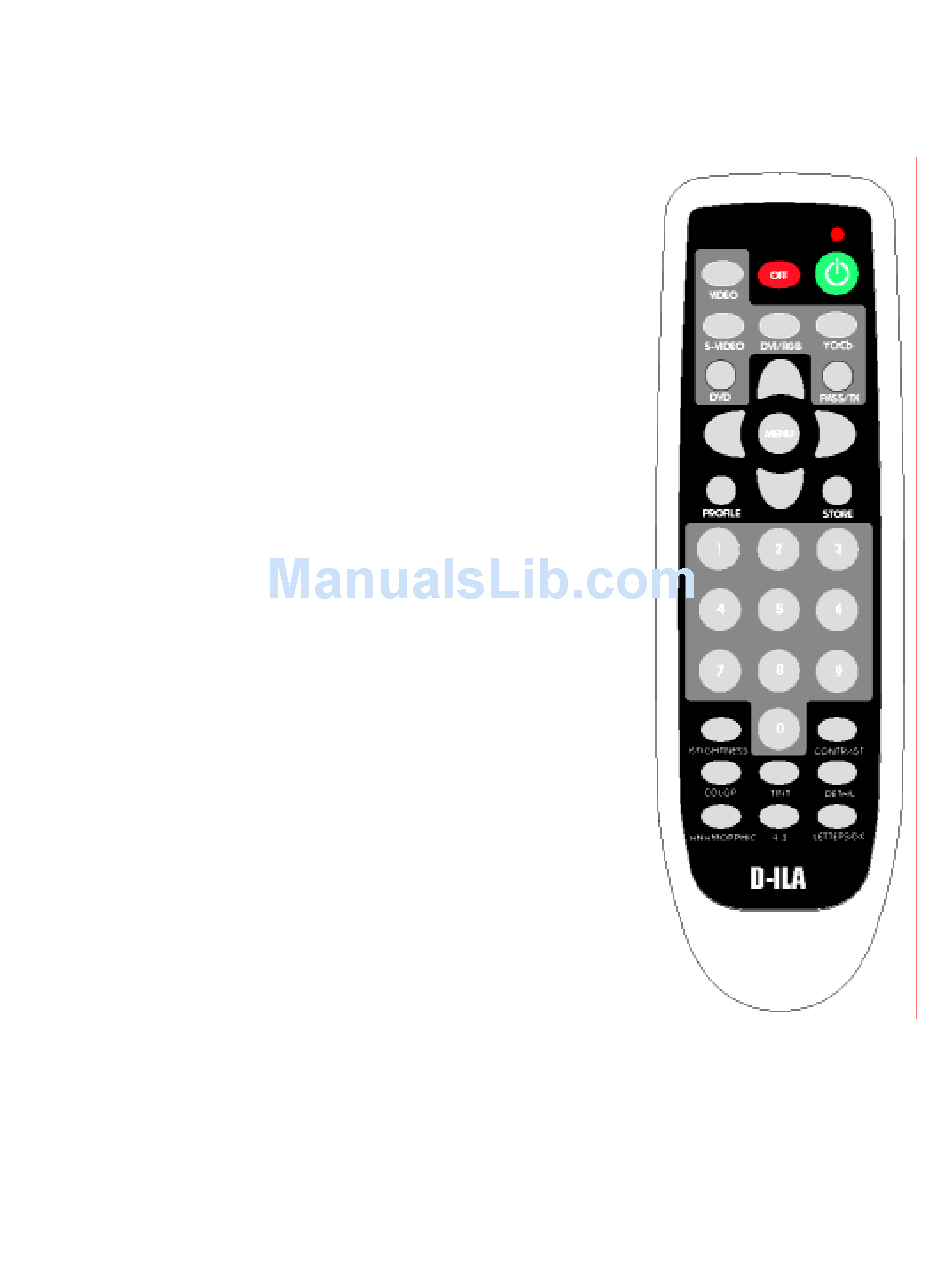

Figure 3

Need help?

Do you have a question about the DLA-HD2K-SYS - D-ila Projector and is the answer not in the manual?

Questions and answers

Summary of Contents for JVC DLA-HD2K-SYS - D-ila Projector

Page 1 I/R Remote Control 13.1 Specifications 13.1.1 Keys 13.1.2 Dimensions 165x45x20 13.1.3 Keypad Type Silicone rubber 13.1.9 Case Material ABS plastic 13.1.4 Yes, Red 13.1.5 IR Emitter 13.1.6 Range 20-30ft, (6-9m) 13.1.7 Power Supply 2 x AAA Batteries 13.1.8 Power Consumption Appox. 50mA at IR transmit 13.1.10 Operation Temp.
Page 2 13.2 Remote Control Key Definitions 13.2.1 Red LED Provides visual feedback when command is being transmitted. 13.2.2 Red Button Direct access for power on. Also will toggle between on and standby. 13.2.3 Off Button Direct Access for standby mode. 13.2.4 Video Button Direct access to select the Video input.
Page 3 13.2.12 Menu Button Used to raise or lower the On Screen Menu. If the button is held for 5 seconds the unit will enter setup mode. Pressing menu again will return the unit back to user mode. 13.2.13 Value Right button Used to change the values in the menus when the On Screen Display is used.
Page 4 13.2.25 Letterbox Button Direct access to select the picture in letterbox aspect ratio 13.3 Remote Control Timing Definitions: 13.3.1 The modulated carrier is derived from a 432KHx clock and is 1/12 of the frequency with a 1/3 duty cycle. 13.3.2 When data is transmitted repeatedly, the frame cycle is 113.7mS or 256T periods.
Page 5 13.4 I/R Custom address code Decimal Bin Code Address Code Code C4 C3 C2 C1 C0 Default 13.5 I/R data codes Decimal BIN Code Function Code Code D5 D4 D3 D2 D1 D0 Power On Power Off Video S-Video YPrPb Pass thru Pass thru Xcode Letterbox...
