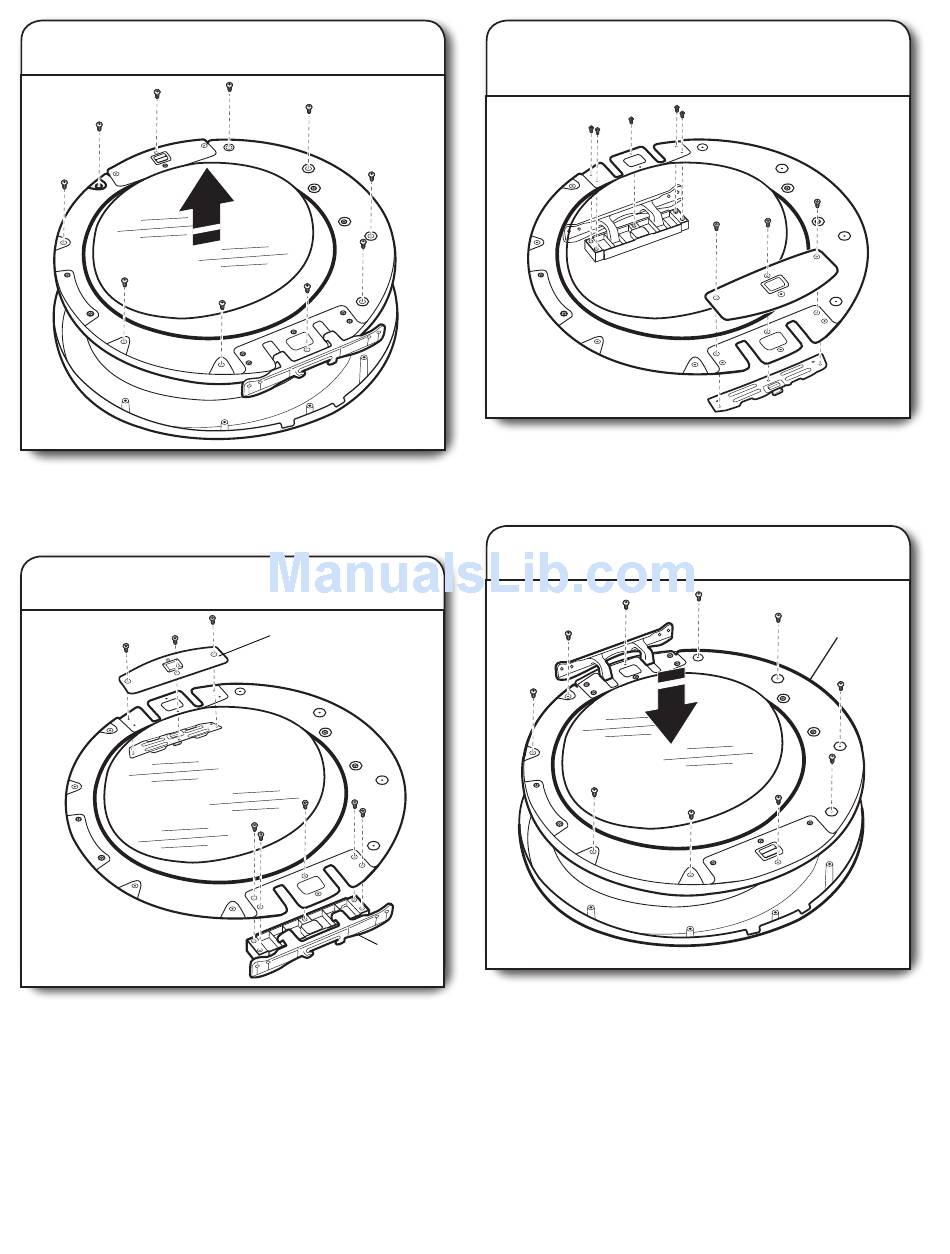

3.
Remove inner door from outer door
Position the door with the inside of the door facing up.
Using a Phillips screwdriver, remove the 10 screws securing
the inner door to the outer door. Lift off the inner door and
set aside.
4.
Remove hinge and latch
Using a TORX
T25 screwdriver, remove the 3 TORX screws
®
securing the latch plate and latch backing plate and the
5 screws holding the hinge assembly in place.
22
Latch
Hinge
5.
Reinstall hinge and latch on
opposite sides
Using a TORX T25 screwdriver, reinstall the latch plate and
latch backing plate with the 3 TORX screws removed earlier
and the hinge assembly with the 5 screws on the opposite
sides from which they were removed.
6.
Reinstall inner door assembly
Position the door with the inside of the door facing up.
Reinstall the 10 screws securing the inner door to the
outer door.
Bottom
of door
