4.

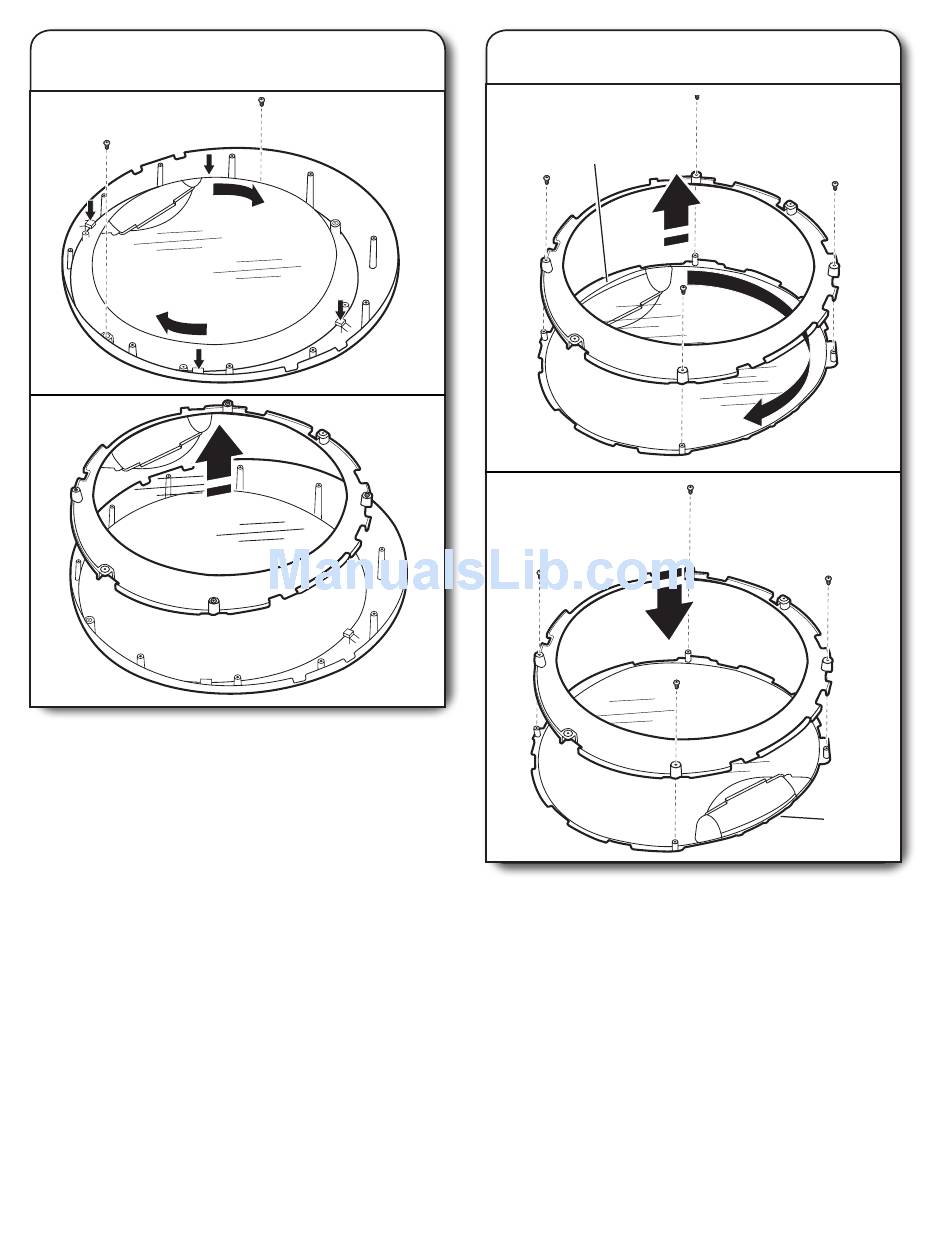

Remove outer window assembly
from trim ring
Using a Phillips screwdriver, remove the 2 screws from the
outer window retainer and rotate the outer window assembly
clockwise until the square notches line up with the 4 tabs on
the trim ring indicated with arrows in the figure A above. Then
lift out the outer window and retainer up and off the trim ring
and set aside (B).
5.
Reverse outer window assembly
Handle
A
B
Using a Phillips screwdriver, remove the 4 screws from the
outer window retainer and lift off the trim ring off the window
(A). Rotate trim ring 180° and secure with the 4 screws
removed earlier (B).
A
Handle
B
