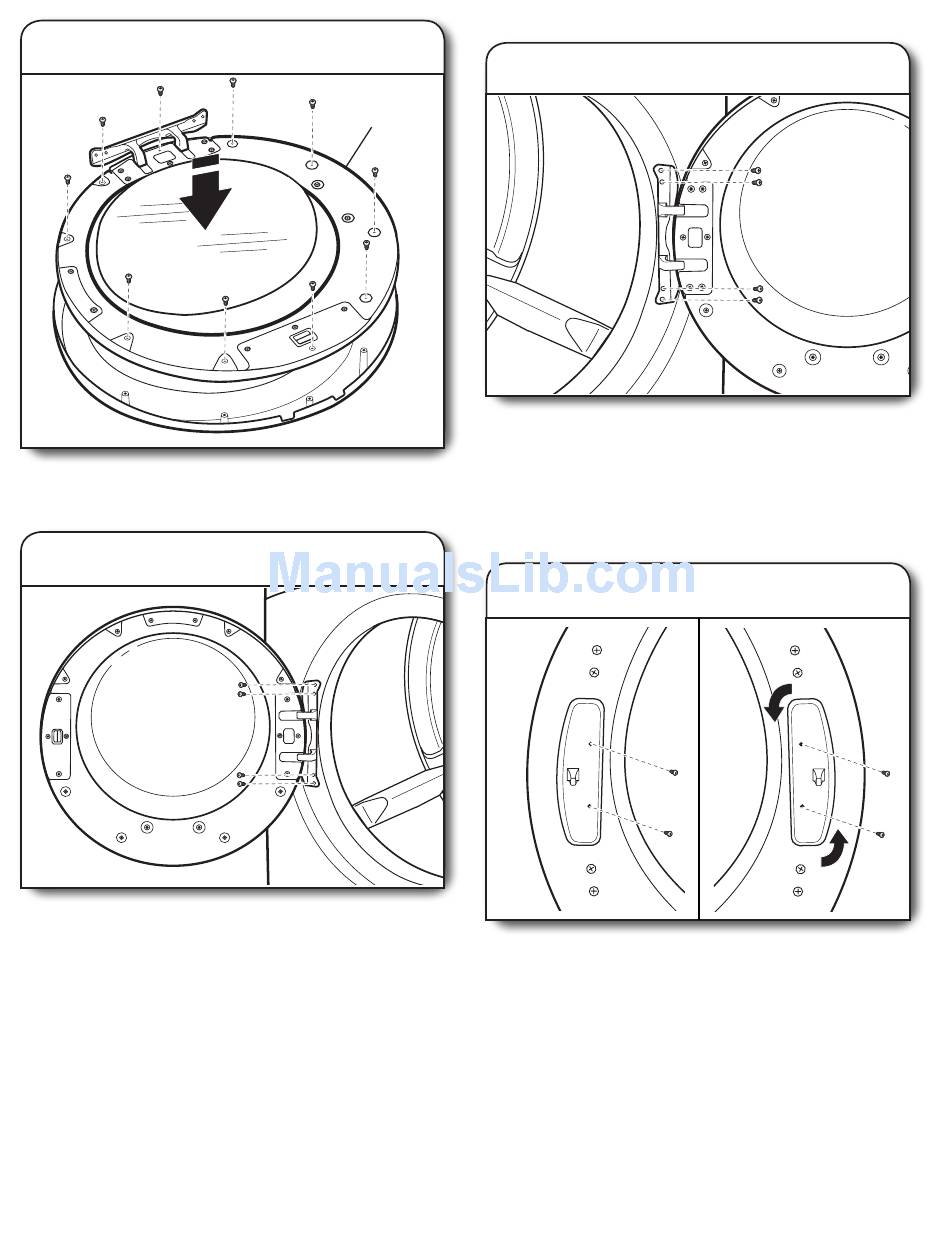

Reinstall inner door assembly
Position the door with the inside of the door facing up.
Reinstall the 10 screws securing the inner door to the
outer door.
10.
Reinstall door on dryer
Using a TORX
T25 screwdriver, remove the 4 screws on the
®
dryer. Insert the tabs on the hinge into the mounting slot and
slide down to engage the top tab. Secure in place with
the 4 TORX T25 screws removed earlier.
Reverse door swing round-shaped door - double handle
1.
Bottom
of door
IMPORTANT: If the protective film has not yet been removed
from the dryer, peel the film from the dryer door before
proceeding.
Using a TORX T25 screwdriver, remove the 4 screws securing
the door hinge to the dryer and lift up and out to remove the
door. Place the door on a soft towel or other non-scratch
surface. Reinstall the 4 screws in the holes.
2.
Using a TORX T25 screwdriver, remove the 2 screws securing
the door strike to the door frame of the dryer. Rotate the
strike 180° and attach to the opposite side of dryer door
frame, as shown.
Remove door from dryer
Move the door strike
21
