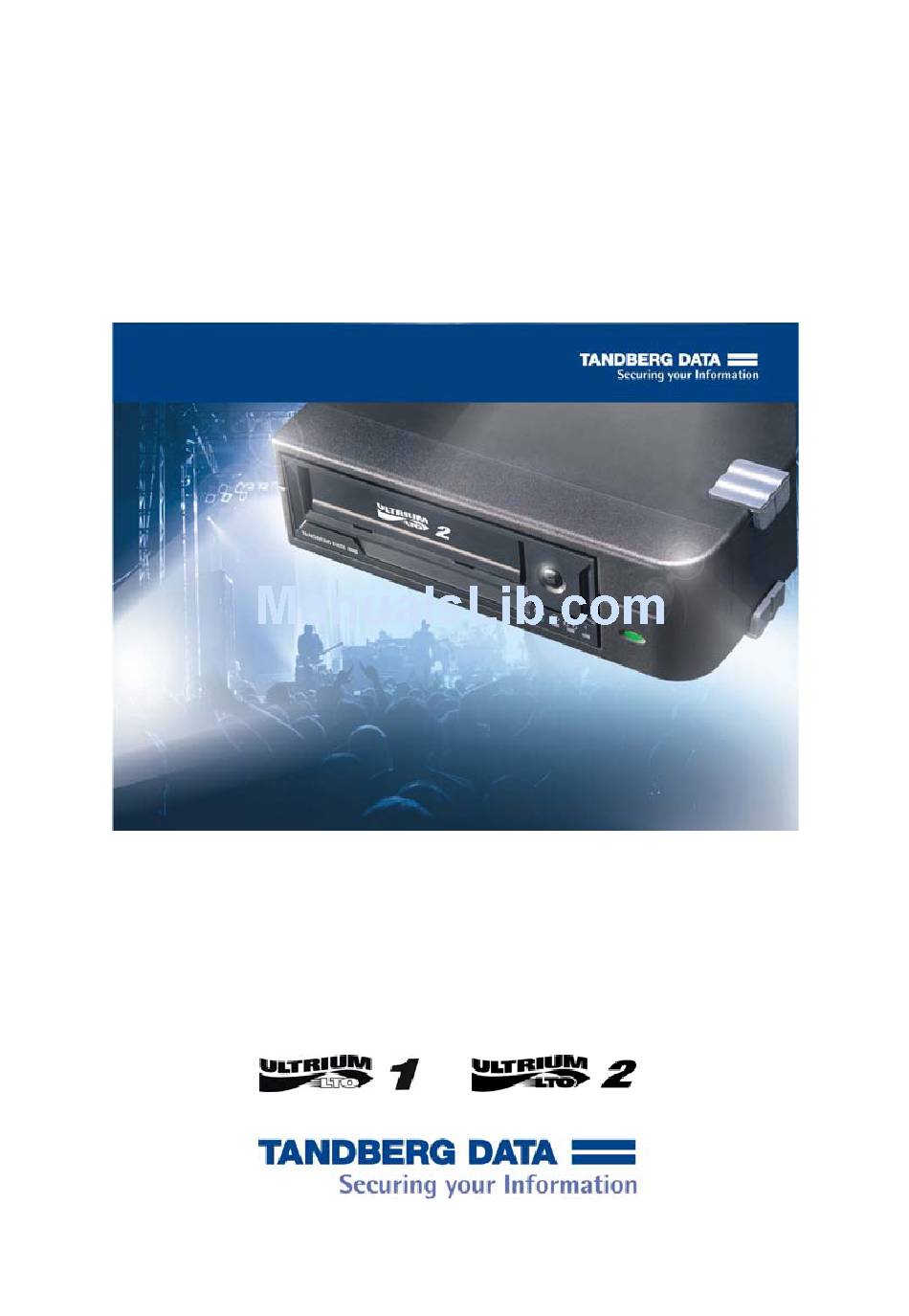

- Page 1 Tandberg 220/420LTO Half Height LTO1 and LTO2 Tape Drive Quick Installation Guide Revision 4 – February 2006...
-
Page 2: Mechanical Installation
• Screw torque, mounting screws: 0.5 Nm • Screws are supplied with all the Tandberg 220/420LTO drive variants • Bags with 4 screws and 4 SCSI ID jumpers are available (Ordering no. 43 32 65) Do not use longer screws or higher screw torque than specified! -
Page 3: Drive Connectors
SCSI Identification Make sure that the drive unit has the proper SCSI-ID before it is connected to a computer system. Refer to manuals for host computer and application software to obtain the correct ID. For correct mounting of ID-jumpers at the rear of the drive, please refer to Figure 3 and Table 1. -
Page 4: Scsi Cable
If the tape drive is the last device on the bus, the bus must be terminated within 10 cm of the tape drive connection. Tandberg 220/420LTO has a combined SCSI-LVD/SE interface embedded. The PC-98 Specification specifies that the termination of the SCSI-bus system is a part of the SCSI-cable and not a part of the SCSI-device. -
Page 5: Front Led Indicators
Front LED Indicators Figure 5 Light Emitting Diodes (LED) READY LED ACTIVITY LED CLEAN LED FAULT LED Drive State (Green left) (Green) (Amber) (Amber right) LED-test. The LEDs are turned ON one-by-one. Power-On Self-Test starts in parallel with the LED-test . Cartridge not loaded. -
Page 6: Power Requirements
Media and Capacities To achieve and maintain the maximum quality of your Tandberg Data tape drive, we recommend using Tandberg Data media. Drive Media Name Tape Capacity Ordering Model Length (Native) Tandberg LTO Ultrium Generation 1 (Native format) 609 m... - Page 7 We guarantee that this product left our premises defect free. If you are not satisfied with the quality of this product, please contact your distributor or the nearest Tandberg Data office to have the problem solved! For more documentation and information, please see our website www.tandberg.com.
-
Page 8: International Headquarter
Tandberg Data International headquarter Tandberg Data ASA, Kjelsåsveien 161, Oslo, P.O. Box 134 Kjelsås, N-0411 Oslo, Norway. Tel: +47 22 18 90 90. Fax: +47 22 18 95 50. www.tandberg.com Worldwide subsidiaries Tandberg Data Corp., 13000 Gregg Street, Poway, CA 92064, U.S.A.
