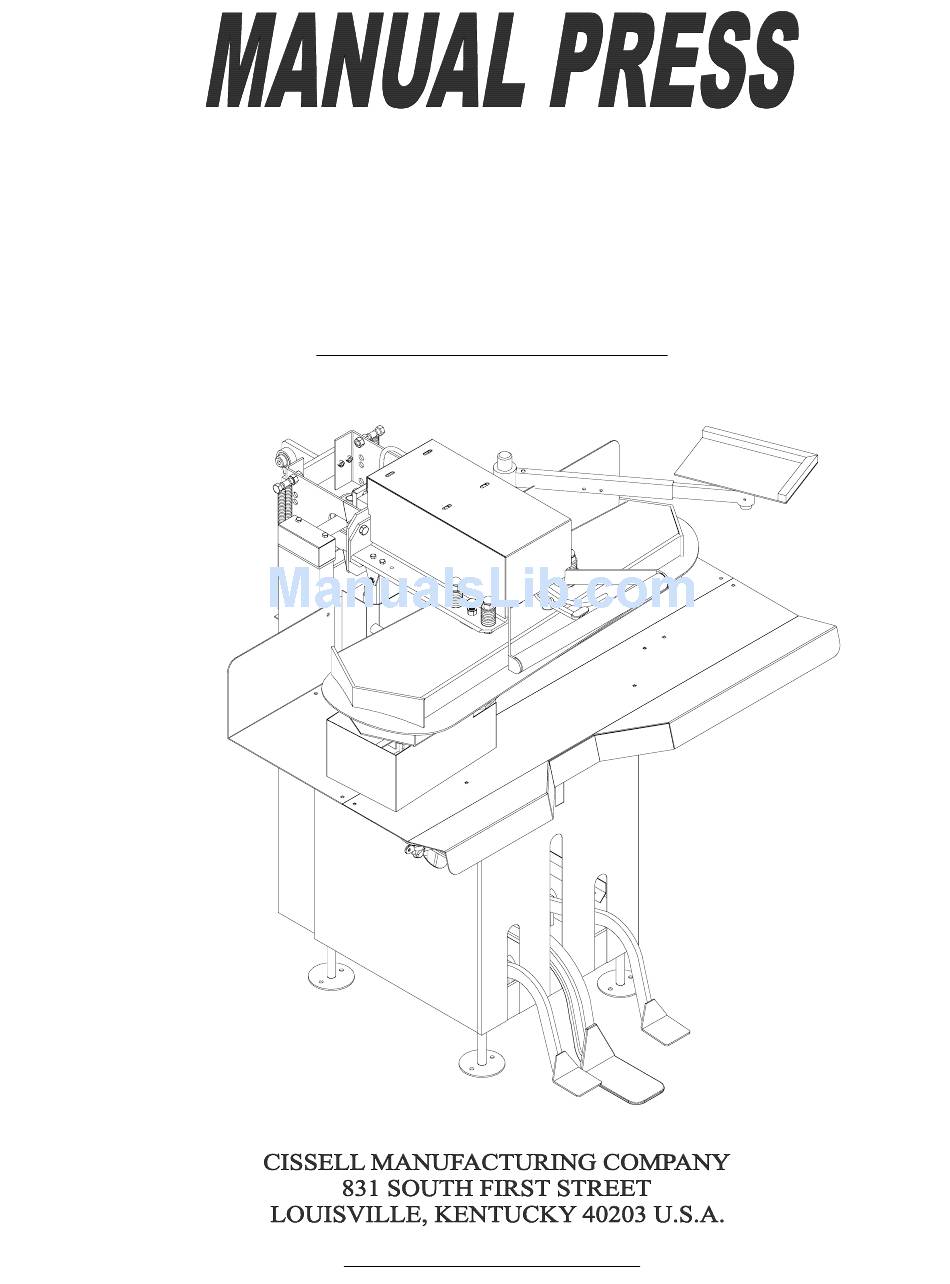

- Page 1 Service Manual UTILITY- MU-42-K, MU-45-K MAN589 ECN5736 31599...
-
Page 2: Warranty
Cissell’s factory, transportation prepaid, within the applicable warranty period and found by Cissell to have been defective, and in no event shall Cissell be liable for damages of any kind, whether for any injury to persons or property or for any special or consequential damages. The liability of Cissell does not include furnishing (or paying for) any labor such as that required to service, remove or install;... -
Page 3: Table Of Contents
TABLE OF CONTENTS MU42 and MU45 (UTILITY) PAGE Warranty………………………………………………………………………………………….. 2 Testing…………………………………………………………………………………………..5 Foreward ………………………………………………………………………………………… 5 Installing the Press ……………………………………………………………………………… 6 Fig. 1. Iron Rest Plate Group………………………………………………………… 6 Fig. 2. Steam & Vacuum Connections……………………………………………….. 7 Fig. 3. Layout Foot Print....………………………………………………... 9 Description of the Press…………………………………………………………………………. - Page 4 TABLE OF CONTENTS MU42, MU45, – UTILITY PAGE Buck Steam Linkage …………………………………………………………………… 20 General Trouble Shooting………………………………………………………………………… 12 Head will not lock ……………………………………………………………………… 12 Press Head bangs down when released .………………………………………………… 12 No vacuum ……………………………………………………………………………… 12 Vacuum will not shut off………………………………………………………………… 13 Buck Steam Valve releases too much or too little steam………………………………...
-
Page 5: Testing
TESTING This press has been tested in the Cissell factory to determine that it is safe and in working order. Final adjustments must be made to obtain the best results for your garments using your steam and vacuum in your environment. -
Page 6: Installing The Press
INSTALLING THE PRESS 1. Uncrate the press and remove the skid. Move the press into position. 2. Hold the head down and cut the twine that holds the head closed. Allow the head to rise slowly to the open position. The Lowboy bracket (PR356) has been installed on the table at the factory. - Page 7 88 psi (6 bars) in the line. 7. Connect the vacuum using a 2 inch pipe to the vacuum supply. The vacuum supply should be rated two presses or more. (Example: Cissell Dryset model 2D or larger). FIGURE 2 STEAM & VACUUM CONNECTIONS...
- Page 8 Page 8...
-
Page 9: Description Of The Press
Description of the Manual Press The buck of the press is the bottom part of the press upon which the garment is to be placed and pressed. The head is the upper part of the press. The head has a nylon handle used for closing. Three foot pedals are located near the floor at the front of the press. -
Page 10: Overview Of The Press
DESCRIPTION OF THE PRESS Page 10... -
Page 11: Lower Assembly
LOWER ASSEMBLY Page 11... -
Page 12: Maintenance
Maintenance 1. Once per month add ordinary lubricating oil into the oil holes of the foot pedals. 2. The main pivot of the press head lever is fitted with pillow block bearings that are factory lubricated 3. Lubricate linkage as needed with ordinary oil. Adjustments Head Lever –As the pads on the press wear, the pressure on the head may decrease which may be indicated by a poor finish of the garment. -
Page 13: Vacuum Will Not Shut Off
Vacuum Will Not Shut Off____________________________________________________________ Cause Remedy A. Valve spring broken or loose. Replace spring. B. Defective vacuum valve. Repair or replace vacuum valve. Wet Spots On Buck Pad & Covering_____________________________________________________ Cause Remedy Steam trap not working properly. Check steam trap for press. B. -
Page 14: Head Release Assembly (Lower Pivot)
HEAD RELEASE ASSEMBLY (LOWER PIVOT) Page 14... -
Page 15: Head Release Unit (Upper Pivot)
HEAD RELEASE ASSEMBLY (UPPER PIVOT) Page 15... -
Page 16: Handle Assembly
HANDLE ASSEMBLY Page 16... -
Page 17: Pivot Arm Assembly (Upper)
PIVOT ARM ASSEMBLY (UPPER PIVOT W/ COVER) Page 17... -
Page 18: Pivot Arm Assembly (Lower)
LOWER PIVOT ASSEMBLY Page 18... -
Page 19: Table Assembly
TABLE ASSEMBLY Page 19... -
Page 21: Cover & Foot Assembly
COVERS & FOOT ASSEMBLY Page 21... -
Page 22: Pivot Arm Assembly
PIVOT ARM ASSEMBLY Page 22... -
Page 23: Steam Connections
STEAM CONNECTIONS Page 23... -
Page 24: Head Valve Unit
VALVE ASSEMBLY - PR258 VALVE ASSEMBLY - PR741 Page 24...
