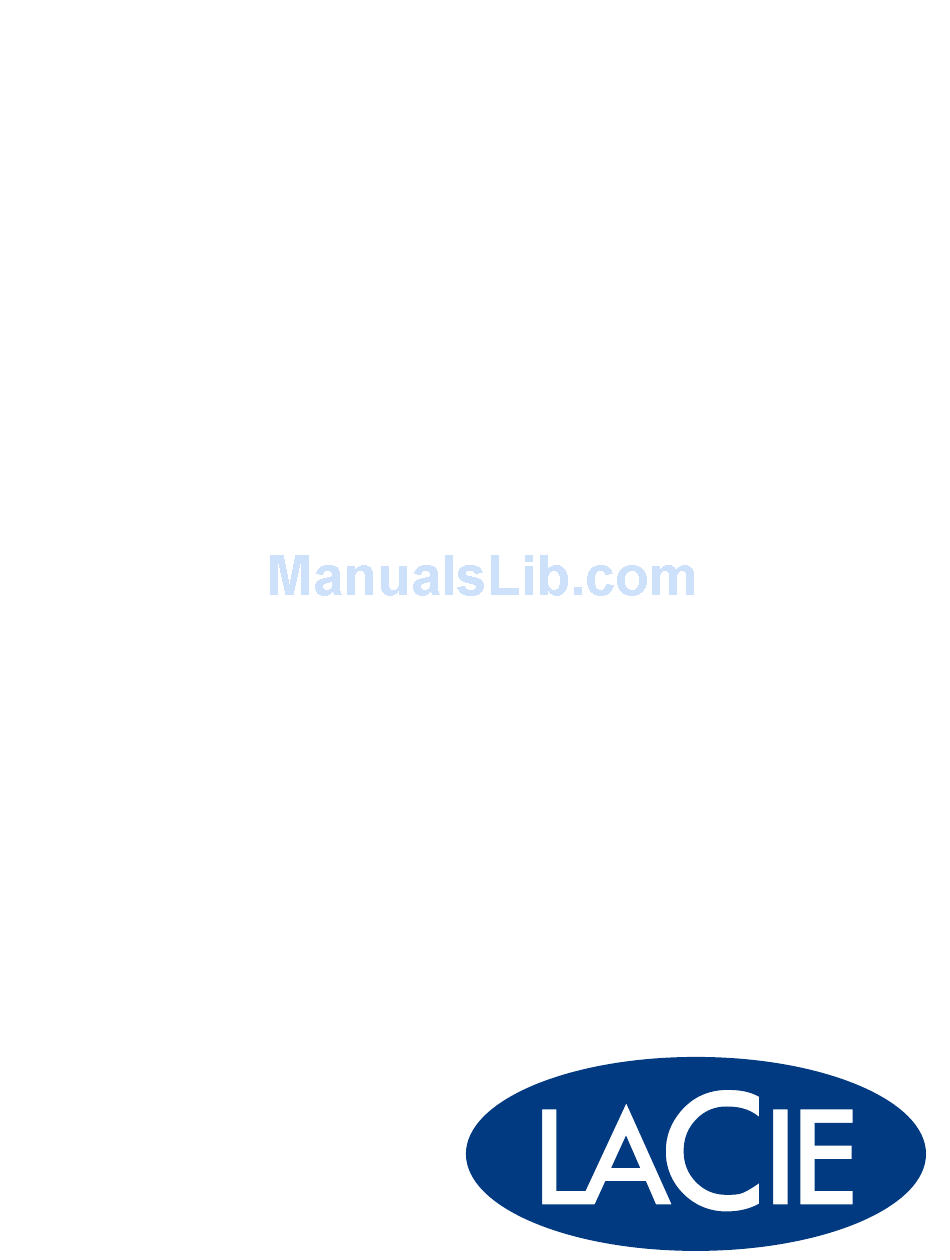

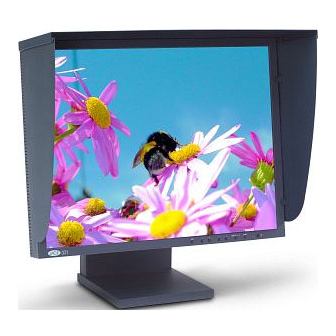

  • Page 1 LaCie 321 User’s Manual...
  • Page 2 Therefore, it should be read carefully in order to avoid any problems. Caution: When operating the LaCie 321 with a 220-240V AC power source in Europe, use the power cord provided withthe monitor. In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment.If a power cord is not supplied with this equipment please contact your supplier.

  • Page 3: Canadian Department Of Communications Compliance Statement

    No. 60950. FCC Information 1. Use the attached specified cables with the LaCie 321 colour monitor so as not to interfere withradio and television reception. (1) The power supply cord you use must have been approved by and comply with the safety standards of U.S.A.,and meet the following condition.
  • Page 4 Contents Your new LaCie 321 monitor box* should contain the following: •LaCie 321 monitor with tilt/swivel/pivot/height adjust stand •Power Cord •Video Signal Cable (15-pin mini D-SUB male to DVI-A) •Video Signal Cable (DVI-D to DVI-D cable) •CD-ROM •Cable Cover *Remember to save your original box and packing material to transport or ship the monitor.

  • Page 5: Quick Start

    Quick Start To attach the LaCie 321 monitor to your system, follow these instructions: 1. Turn off the power to your computer. 2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your system (Figure A.1).

  • Page 6: Raise And Lower Monitor Screen

    INPUT1 INPUT2 INPUT1 INPUT2 Figure C.2 Figure C.1 Vacation Switch Power Button Figure D.1 Raise and Lower Monitor Screen The monitor may be raised or lowered in either Portrait or Landscape mode. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1). NOTE: Handle with care when raising or lowering the monitor screen.

  • Page 7: Remove Monitor Stand For Mounting

    Tilt Swivel Grasp top and bottom sides of the monitor screen with your Grasp both sides of the monitor screen with your hands hands and adjust the tilt as desired (Figure TS.1). and adjust the swivel as desired (Figure TS.2). Figure TS.1 Figure TS.2 NOTE:...

  • Page 8: Brightness/Contrast Controls

    Controls OSM (On-Screen Manager) control buttons on the front of the monitor function as follows: To access OSM menu, press any of the control buttons (EXIT, , –, +). To change signal input, press the SELECT button. NOTE: OSM must be closed in order to change signal input. Menu EXIT Exits the OSM controls.

  • Page 9: Colour Control Systems

    FINE (Analog input only) Improves focus, clarity and image stability by increasing or decreasing this setting. If the “Auto Adjust function” and the “H.Size” function do not give you a satisfactory picture setting, a fine tuning can be performed using the “Fine” function. It improves focus, clearity and image stability by increasing or decreasing this setting.
  • Page 10 Note: Depending on the PC and Video card used, or when another Video signal cable is attached, this function may not operate. OFF TIMER: Monitor will automatically power-down when the end user has selected a pre-determined amount of time. Tools 2 LANGUAGE: OSM control menus are available in seven languages.

  • Page 11: Recommended Use

    NOTE: As with all personal display devices, LaCie recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 12 CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR: • For optimum performance, allow 20 minutes for warm-up. • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

  • Page 13: Specifications

    Specifications Monitor Specifications LaCie 321 Monitor Notes LCD Module Diagonal: 54 cm/21.3 inches Active matrix; thin film transistor (TFT) liquid Viewable Image Size: 54 cm/21.3 inches crystal display (LCD); 0.270 mm dot pitch; Native Resolution (Pixel Count): 1600 x 1200 250 cd/m white luminence;...

  • Page 14: Troubleshooting

    NOTE: As with all personal display devices, LaCie recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 15 Appendix If you need detailed information about the controls, please use the advanced menu. <How to use the advanced menu> • Turn off your monitor. • Turn on your monitor by pushing the “POWER” and “SELECT” button at the same time for at least one second simultaneously.
  • Page 16 Auto SW Determines the automatic adjustment level for Auto Adjust. The choices are “SIMPLE”, (Analog input only) “FULL” and “DETAIL”. Press “+” or “-” to select. Refer to the below table. Determines the automatic adjustment level as shown in the below table. Size, Fine, Position Contrast Black Level, Long cable capability*...
  • Page 17 Tag6 Colour Control Colour Control Systems: Six colour presets select the desired colour setting (sRGB, NATIVE and PROGRAMMABLE colour presets are standard and cannot be changed). Colour temperature increases or decreases, in each preset. R,Y,G,C,B,M,S: Increases or decreases Red, Yellow, Green, Cyan, Blue, Magenta and Saturation depending upon which is selected.
  • Page 18 OSM Lock Out This control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out. There are two types of OSM LOCK OUT: OSM LOCK OUT with BRIGHTNESS and CONTRAST control: To activate the OSM Lock Out function, press SELECT, then “+”...
  • Page 19 TCO’99 (Black model) Congratulations! You have just purchased a Lead** TCO’99 approved and labelled product! Your Lead can be found in picture tubes, display screens, solders and choice has provided you with a product developed capacitors. Lead damages the nervous system and in higher for professional use.
  • Page 20 TCO (Swedish Trades Union). For help in recycling your old LaCie monitor please contact one of the following organizations : Sweden www.el-retur.se <http://www.el-retur.se/>...
