Summary of Contents for LaCie 324

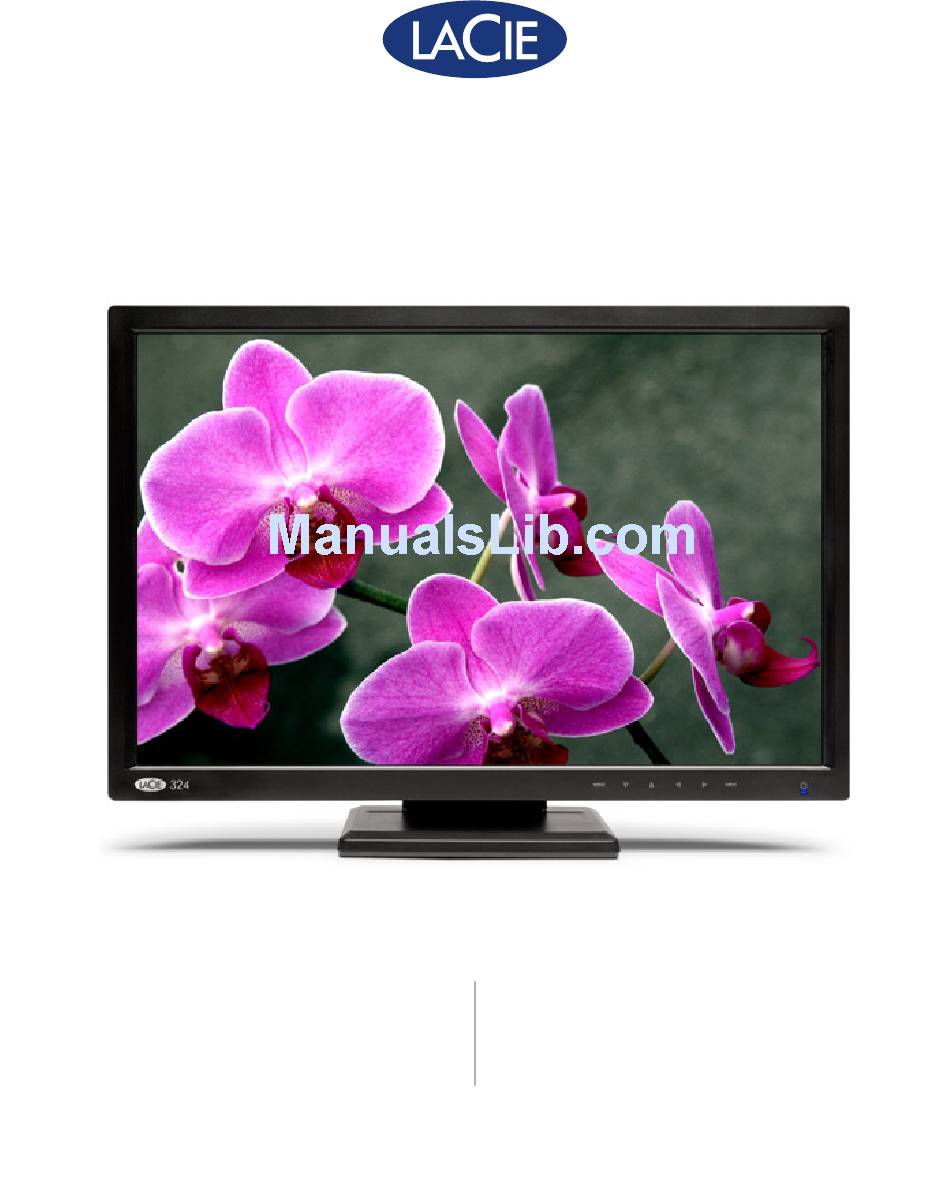

  • Page 1: Lcd Monitor

    324 LCD Monitor user manual handbuch manuel utilisateur guída utente manual de instrucciones Руководство пользователя...
  • Page 2: Table Of Contents

    4.2.2. DVI/VGA Settings... 25 4.2.3. HDMI Video Settings ... 26 4.2.4. Other Settings ... 28 5. Troubleshooting 6. Contacting Customer Support Before You Contact Technical Support ... 31 LaCie Customer Support Contacts ... 32 7. Warranty Information Table of Contents page ...
  • Page 3: User Manual

    ✦ I/O devices to this equipment. Use the attached specified cables with the LaCie 324 monitor so as not to interfere with radio and television reception. 1. The power supply cord you use must have been approved by and comply with the safety standards of U.S.A.
  • Page 4: Safety Precautions And Maintenance

    When operating the LaCie 324 LCD ✦ Monitor with a 220-240V AC power source in Europe, use the power cord provided with the monitor.
  • Page 5: Health And Ergonomic Precautions

    LaCie 324 Monitor User Manual Health and Ergonomic Precautions Correct placement and adjustment of the monitor can reduce eye, shoulder and neck fatigue. Check the following when you position the monitor: For optimum performance, allow 20 ✦ minutes for warm-up.
  • Page 6 Eu- Energy saving: This monitor features an advanced energy saving capability. When a VESA Display Power Management Signaling (DPMS) Standard signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.
  • Page 7: Introduction

    The LaCie 324 also includes a convenient audio jack to con- nect your headphones or speakers and three powered USB 2.0 ports for all your USB devices.
  • Page 8: Features

    Convenient audio line out serves as headphone or speaker connector. Convenient USB hub located on the rear left side of front panel for connection of USB devices such as LaCie external hard drives or the LaCie blue eye pro calibrator.
  • Page 9: Monitor Specifications

    Active Display Area 518.4 (H) x 324 (V) mm Some systems may not support all modes listed. Primary mode : 1920 x 1200 at 60 Hz – LaCie recommends this resolution for optimal display perfor- mance. Resolution Secondary modes : 720x400@70Hz, 823x624@75Hz, 1280x960@60Hz, 640x480@60 Hz/67Hz/...
  • Page 10: Box Content

    LaCie 324 Monitor User Manual 1.3. Box Content Your box contains the LaCie 324 LCD Monitor and items 2 -9, listed below: ➀ LaCie 324 LCD Monitor ➁ DVI-D cable ➂ HDMI-HDMI cable ➃ Audio jack cable ➄ AC power cable ➅...
  • Page 11: About The Lcd Stand Pin

    When transporting the monitor in the future, adjust the LCD to its lowest position and insert the pin into the LCD stand base to lock it in place. The monitor can then be inserted back into the cushioning material and into its box.
  • Page 12: Views Of The Monitor

    LaCie 324 Monitor User Manual 1.5. Views of the Monitor Front View Refer to the diagram below for the names and functions of each component of the monitor. ➀ Display – Displays images ➁ Power indicator – Turns blue when power is turned ON;...
  • Page 13: Rear View

    LaCie 324 Monitor User Manual Rear View Refer to the diagram below for the names and functions of each component of the monitor. AC IN HDMI ➀ Theft-prevention slot – Connects commercial security cables when necessary ➁ LCD stand base – The stand base is removable; the 4- screw attachment can be used to attach any alternative VESA-100 standard LCD attachment.
  • Page 14: Getting Connected

    LaCie 324 LCD Monitor User Manual 2. Getting Connected Getting Connected Installing your LaCie 324 LCD Monitor is easy, requiring only a few simple connections: 2.1. Connecting the Monitor to Your Computer ✦ 2.2. Connecting Headphones or Speakers ✦ 2.3. Connecting USB Devices ✦...
  • Page 15: Connecting The Monitor To Your Computer

    HDMI 1 or HDMI 2 input. TeChNICAl NOTe: Up to 4 video sources can be connected to the monitor at the same time using the DVI, VGA, HDMI 1 and HDMI 2 input ports. Connect the included audio cable to the monitor’s AUDIO IN port.
  • Page 16: Connecting Headphones Or Speakers

    To connect USB Devices: Connect the USB host cable to a USB terminal on your com- puter and to the USB host port on the monitor (Fig. 2.3). The monitor’s USB hub is now connected to your computer. Connect USB peripherals to the USB connectors located on the side of the monitor (Fig.
  • Page 17: Ergonomic Adjustments

    Grasp both sides of the monitor screen with your hands and adjust the swivel as desired (Fig. 2.4.3). NOTe: The base of the LaCie 324 monitor is designed to swivel on a hard, flat surface. The entire unit turns, not just the display.
  • Page 18: Installing An Alternative Stand Or Attachment

    User Manual 2.5. Installing an Alternative Stand or Attachment The base of the LaCie 324 can be disconnected to attach a flexible monitor arm or other attachment compliant with VESA 100 standards. Prepare the arm and screws required for instal- lation beforehand.
  • Page 19: Monitor Operation

    LaCie 324 LCD Monitor User Manual 3. Monitor Operation Refer to the following sections for information on viewing video on your LaCie 324 LCD Monitor: 3.1. About Zoom Modes and Aspect Ratio ✦ 3.2. Using the Picture-in-Picture Function ✦ 3.2.1. Turning PiP ON/OFF ✧...
  • Page 20: About Zoom Modes And Aspect Ratio

    ✦ Virtually all video sources available today use one of these three aspect ratios. 16:10 is the native format of the LaCie 324 LCD Monitor, corresponding to a 1920 x 1200 resolution computer video signal. When using a 4:3 or 16:9 video source, such as...
  • Page 21: Using The Picture-In-Picture (Pip) Function

    : When the PiP function is ON, toggle the PiP Posi- tion function by using the Left/Right arrows on the front panel of the Monitor. The PiP position changes each time either ar- row is pressed in the following order : Upper right - Lower right - Lower left - Upper left - Upper right.
  • Page 22: Switching Audio Output To Speakers

    Toggle the PiP Input Select function. The input source displayed on the Sub-Display changes in the following order : PC-Digital - HDMI-1 - HDMI-2 - PC- Analog The configurations in which the PiP is operable with the LaCie 324 are summarized in the following table: Main Display...
  • Page 23: Settings And Adjustments

    LaCie 324 LCD Monitor User Manual 4. Settings and Adjustments Refer to the following sections for information on making set- tings and adjustments to your LaCie 324 LCD Monitor: 4.1. Settings and Adjustments (Basic Operations) ✦ 4.2. Advanced Settings ✦...
  • Page 24: Settings And Adjustments (Basic Operation)

    LaCie 324 LCD Monitor User Manual 4.1. Settings and Adjustments (Basic Operation) A variety of adjustments and settings can be performed using the Settings / Adjust Menu (herein referred to as “menu”) dis- played on the screen. To enter the Settings / Adjust Menu, press the MENU key. To exit this menu, press the INPUT key.
  • Page 25: Advanced Settings

    LaCie 324 LCD Monitor User Manual 4.2. Advanced Settings 4.2.1. Picture-in-Picture (PiP) Settings NOTe: This menu is not visible when the main display source is HDMI. PC-Digital PIP Mode Input Size Position Transparency AudioSelect Return Select Item PiP Mode Turns PiP ON/OFF (Turn ON to view the PiP) Source* Selects PiP input source –...
  • Page 26: Dvi/Vga Settings

    LaCie 324 LCD Monitor User Manual 4.2.2. DVI/VGA Settings PC-Digital Screen Mode Text Brightness Video Contrast Color Temp 6500 Gamma Aspect Ratio Smart Zoom Over Speed Return Select Item This function toggles between six preset display modes called Standard, Cinema, CG, Photo, Text and DTP .
  • Page 27: Hdmi Video Settings

    LaCie 324 LCD Monitor User Manual 4.2.3. HDMI Video Settings HDMI-1 Sceen Mode Brightness Contrast Video Luminance Tint Color Sharpness Aspect Ratio Smart Zoom Over Speed Noise Reduction Execute Return Select INPUT:OK Item This function toggles between three preset display modes called Standard, Cinema, CG, Photo, Text and DTP .
  • Page 28 LaCie 324 LCD Monitor User Manual This function allows you to independently adjust the chromaticity of the 6 Primary colors: red, green, blue, cyan, magenta, yellow. Yellow Green Cyan Blue Magenta Return Returns to the Main Menu Screen Mode Presets...
  • Page 29: Other Settings

    LaCie 324 LCD Monitor User Manual 4.2.4. Other Settings PC-Digital Smooth Block NR Information Language MenuPosition Execute MenuTimeOut Others Transparency Border Color PC-Analog Priority Execute FactoryReset Sound Return Select INPUT:OK Item Smooth Adjusts the sharpness of the monitor image Block NR...
  • Page 30: Troubleshooting

    To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.
  • Page 31 Verify that your headphone or speaker cable is properly plugged into the audio out port If your audio is coming from your computer verify that the computer-to-monitor audio cable is properly plugged into your computer sound card (green connector) as well as the monitor’s line in audio port located next to the video signal input port you are using.
  • Page 32: Contacting Customer Support

    Read the User Manual and review the Troubleshooting section. If you have asked yourself all of the pertinent questions in the troubleshoot- ing checklist, and you still can’t get your LaCie monitor to work properly, contact us via the contacts on the next page. Before contacting...
  • Page 33: Lacie Customer Support Contacts

    LaCie 324 LCD Monitor User Manual LaCie Customer Support Contacts LaCie Asia, Singapore, and Hong Kong Contact us at: http://www.lacie.com/asia/contact/ LaCie Belgium Contact us at: http://www.lacie.com/be/contact/ LaCie Denmark Contact us at: http://www.lacie.com/dk/contact LaCie France Contact us at: http://www.lacie.com/fr/contact/ LaCie Italy Contact us at: http://www.lacie.com/it/contact/...
  • Page 34: Warranty Information

    LaCie warrants your monitor against any defect in material and workmanship, under normal use, for the period designated on your war- ranty certificate. In the event this product is found to be defective within the warranty period, LaCie will, at its option, repair or replace the defective product.
