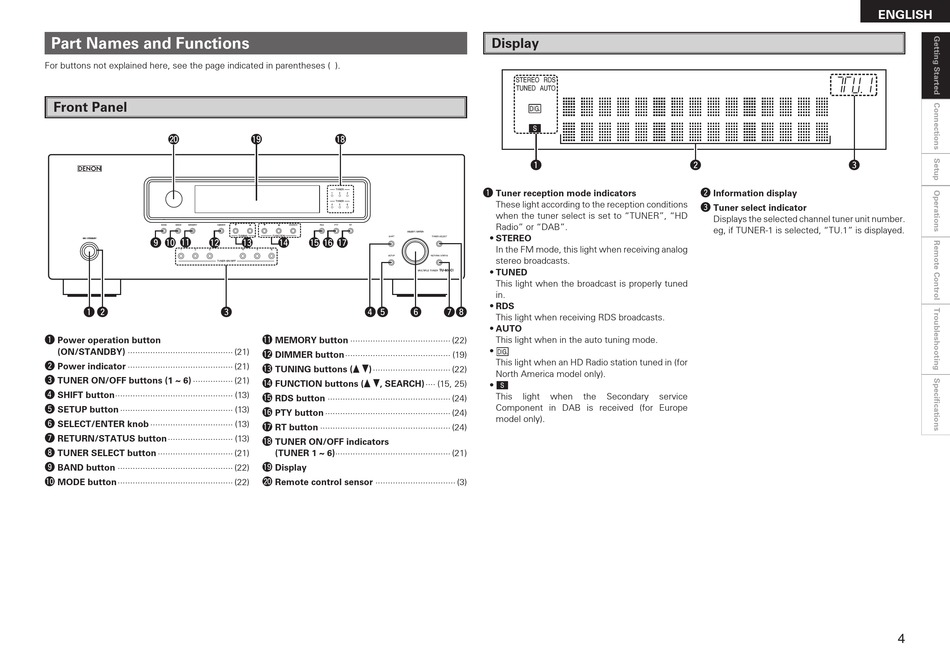

Part Names and Functions

For buttons not explained here, see the page indicated in parentheses ( ).

Front Panel

W0
Q1
o Q0 Q2
q w e
q
Power operation button
(ON/STANDBY) ·········································· (21)
w Power indicator ·········································· (21)
e TUNER ON/OFF buttons (1 ~ 6) ················ (21)
r SHIFT button ··············································· (13)
t SETUP button ············································· (13)
y SELECT/ENTER knob ································· (13)
u RETURN/STATUS button ·························· (13)
i TUNER SELECT button ······························ (21)
o BAND button ·············································· (22)
Q0 MODE button ·············································· (22)
Q9 Q8
Q3 Q4 Q5 Q6 Q7
rt y
Q1 MEMORY button ········································ (22)
Q2 DIMMER button ·········································· (19)
Q3 TUNING buttons (d f) ······························· (22)
Q4 FUNCTION buttons (d f, SEARCH) ···· (15, 25)
Q5 RDS button ················································· (24)
Q6 PTY button ·················································· (24)
Q7 RT button ···················································· (24)
Q8 TUNER ON/OFF indicators
(TUNER 1 ~ 6) ·············································· (21)
Q9

Display

W0 Remote control sensor ································ (3)
Display
q
q Tuner reception mode indicators
These light according to the reception conditions
when the tuner select is set to "TUNER", "HD
Radio" or "DAB".
• STEREO
In the FM mode, this light when receiving analog
stereo broadcasts.
• TUNED
This light when the broadcast is properly tuned
in.
• RDS
ui
This light when receiving RDS broadcasts.
• AUTO
This light when in the auto tuning mode.
•
This light when an HD Radio station tuned in (for
North America model only).
•
This light when the Secondary
Component in DAB is received (for Europe
model only).
w
w Information display
e Tuner select indicator
Displays the selected channel tuner unit number.
eg, if TUNER-1 is selected, "TU.1" is displayed.
service
ENGLISH
