DENON AVR control protocol

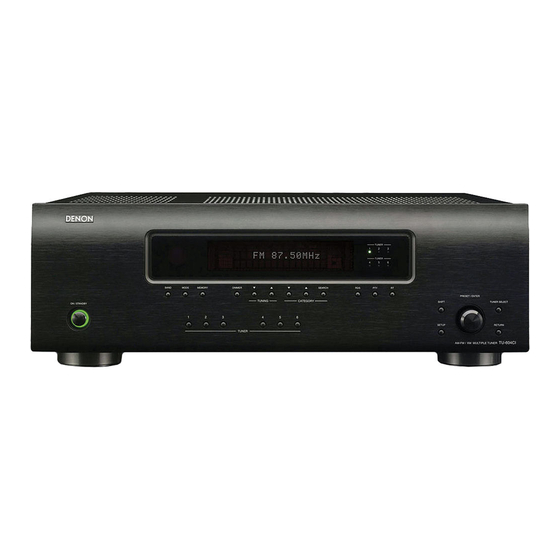

Application model : TU-604CI
Application terminal: RS-232C/ Ethernet
Connector specification
. RS-232C
Connector type:
DB-9pin female type, slave straight connection (DCE type)
( 1pin : GND , 2pin : TxD , 3pin : RxD , 5pin : Common(GND) , 4,6,7,8,9pin : NC )
Communication format:
Synchronous system
Communication system
Communication speed
Character length
Parity control
Start bit
Stop bit
Communication procedure
Communication data length
: Tone step synchronization
: A half duplex
: 9600bps
: 8 bits
: None
: 1 bit
: 1 bit
: Non procedural
: 135 bytes (maximum)
1/17
29.May.2008
Ver. 5.6.0
