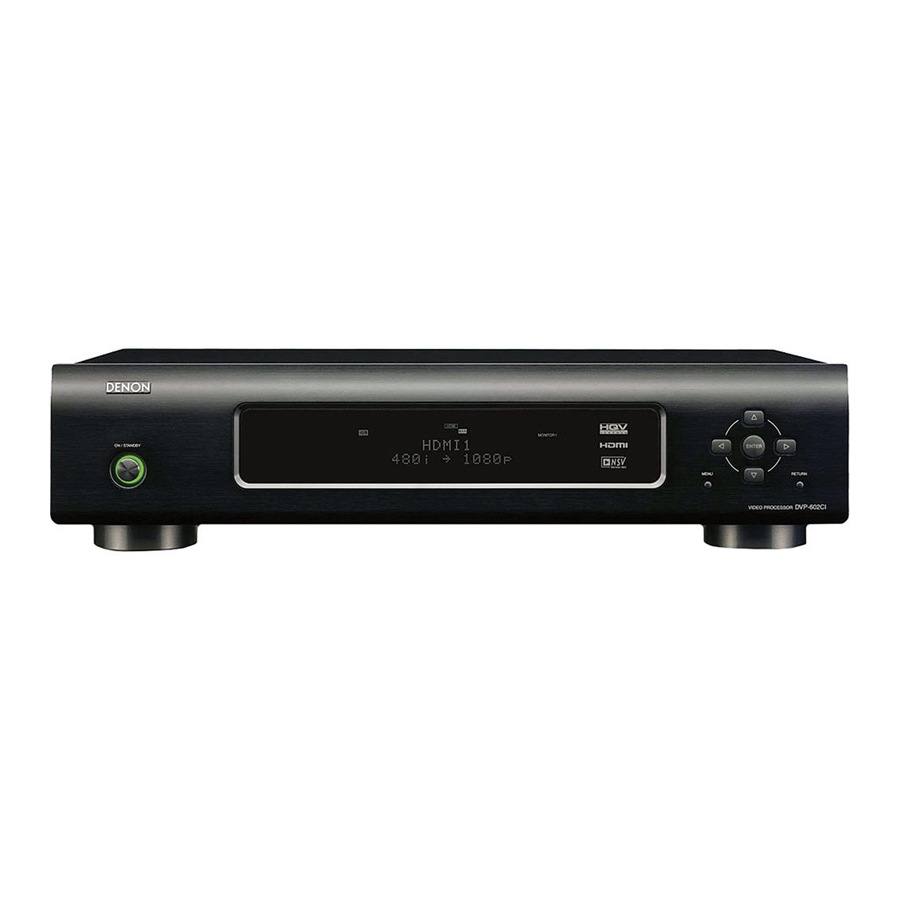

Denon DVP-602CI - Digital Video Processor Control Protocol
Serial protocol
Hide thumbs
Also See for DVP-602CI - Digital Video Processor:
- Service manual (87 pages) ,
- Owner's manual (38 pages) ,
- Specification (2 pages)
Advertisement
Quick Links
DENON DVP-602CI control protocol
Application model :
AMX Rev Ver. DVP-602CI:5.6.0
Application terminal : RS-232C/ Ethernet
Connector specification
Ⅰ. RS-232C
Connector type: DB-9pin female type, slave straight connection (DCE type)
( 1pin : GND , 2pin : TxD , 3pin : RxD , 5pin : Common(GND) , 4,6,7,8,9pin : NC )
Communication format:
Synchronous system
Communication system
Communication speed
Character length
Parity control
Start bit
Stop bit
Communication procedure
Communication data length
DVP-602CI
: Tone step synchronization
: A half duplex
: 9600bps
: 8 bits
: None
: 1 bit
: 1 bit
: Non procedural
: 135 bytes (maximum)
- 1 -
V.5.6.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Denon DVP-602CI - Digital Video Processor
Summary of Contents for Denon DVP-602CI - Digital Video Processor
- Page 1 V.5.6.0 DENON DVP-602CI control protocol Application model : DVP-602CI AMX Rev Ver. DVP-602CI:5.6.0 Application terminal : RS-232C/ Ethernet Connector specification Ⅰ. RS-232C Connector type: DB-9pin female type, slave straight connection (DCE type) ( 1pin : GND , 2pin : TxD , 3pin : RxD , 5pin : Common(GND) , 4,6,7,8,9pin : NC )
- Page 2 V.5.6.0 Ⅱ. Ethernet ： RJ-45(10BASE-T/100BASE-TX) Connector type Example ① Ethernet DVP-602CI Cross cable Example ② DVP-602CI Ethernet Ethernet Straight Straight cable cable Communication format ： Communication system : A half duplex Communication speed : 10Mbps/100Mbps Communication port : TCP port 23 (telnet) Communication data length : 135bytes (maximum) - 2 -...
- Page 3 V.5.6.0 NETWORK SETUP of DVP-602CI >Procedure of Network Setup mode. (1)Press Setup button, then Setup menu appears on FL-display(and GUI) (2)Select “Setup > Network Setup > Network Setup > Detail” . (3)Set parameters described below. <DHCP> "ON"---Use this setting when DHCP server is on the local network. "OFF"---Use this setting when DHCP server is not on the local network.
- Page 4 V.5.6.0 Protocol specification The following three data forms are defined. COMMAND The message sent to a system(DVP-602CI) from a controller(Touch Panel etc.) A command to a system is given from a controller. EVENT The message sent to a controller(Touch Panel etc.) from a system(DVP-602CI) The result is sent, when a system is operated directly and a state changes.
- Page 5 V.5.6.0 The example of a command * <CR> is the meaning of 0x0D. SIHDMI1<CR> : Select Input source HDMI1 PWON<CR> : system Power ON PWSTANDBY<CR> : system Power STANDBY SI?<CR> : Request command for now playing input source >> Return RESPONSE ‘SI***<CR>’ - 5 -...
- Page 6 V.5.6.0 Others A) COMMAND is receivable also during transmission of EVENT. B) The RESPONSE should be sent as opposed to the request command by all the commands with which an EVENT exists , not need to the another request commands(ex. SV command). C) Four seconds later, please transmit the next COMMAND after transmitting a power on COMMAND（PWON）.
- Page 7 V.5.6.0 COMMAND and PARAMETER list COMMAND PARAMETER function example POWER ON/STANDBY change PWON<CR> STANDBY PWSTANDBY<CR> Request PW Status PW?<CR> HDMI1 Select INPUT source SIHDMI1<CR> HDMI2 SIHDMI2<CR> HDMI3 SIHDMI3<CR> HDMI4 SIHDMI4<CR> HDMI5 SIHDMI5<CR> HDMI6 SIHDMI6<CR> COMPONENT1 SICOMPONENT1<CR> COMPONENT2 SICOMPONENT2<CR> S-VIDEO SIS-VIDEO<CR> VIDEO SIVIDEO<CR>...
- Page 8 V.5.6.0 COMMAND PARAMETER function example MONIAUTO Set HDMI MONITOR automatic detection VSMONIAUTO<CR> MONI1 Set HDMI MONITOR OUT-1 VSMONI1<CR> MONI2 Set HDMI MONITOR OUT-2 VSMONI2<CR> MONI? Return VSMONITOR Status VSMONI?<CR> ASPNRM Set Normal mode VSASPNRM<CR> ASPFUL Set FULL mode VSASPFUL<CR> ASP? Return VSASPECT Status VSASP?<CR>...
- Page 9 V.5.6.0 COMMAND PARAMETER function example CN UP CONTRAST UP/DOWN, direct change to **dB PVCN UP<CR> CN DOWN **:44 to 56 by ASCII, 50=0 PVCN DOWN<CR> --- DVP-602CI can be operated from -6 to +6(44 to 56) PVCN 50<CR> CN ** CN ? Return PVCN Status PVCN ?<CR>...
- Page 10 V.5.6.0 ※Cursor/Enter/Setup/Parameter COMMAND PARAMETER function example “Cursor Up” Control MNCUP<CR> “Cursor Down” Control MNCDN<CR> “Cursor Left” Control MNCLT<CR> “Cursor Right” Control MNCRT<CR> “Enter” Control MNENT<CR> “RETURN” Control MNRTN<CR> MEN ON “GUI Menu ON” Control MNMEN ON<CR> MEN OFF “GUI Menu OFF” Control MNMEN OFF<CR>...
- Page 11 V.5.6.0 EVENT(or RESPONSE) and PARAMETER list EVENT PARAMETER function example POWER ON/STANDBY change PWON<CR> STANDBY PWSTANDBY<CR> HDMI1 Change INPUT source SIHDMI1<CR> HDMI2 SIHDMI2<CR> HDMI3 SIHDMI3<CR> HDMI4 SIHDMI4<CR> HDMI5 SIHDMI5<CR> HDMI6 SIHDMI6<CR> COMPONENT1 SICOMPONENT1<CR> COMPONENT2 SICOMPONENT2<CR> S-VIDEO SIS-VIDEO<CR> VIDEO SIVIDEO<CR> AUTO INPUT mode change SDAUTO<CR>...
- Page 12 V.5.6.0 EVENT PARAMETER Function example MONIAUTO HDMI MONITOR setting change VSMONIAUTO<CR> MONI1 VSMONI1<CR> MONI2 VSMONI2<CR> ASPNRM ASPECT setting change VSASPNRM<CR> ASPFUL VSASPFUL<CR> SC48P SCALER setting change VSSC48P<CR> SC10I VSSC10I<CR> SC72P VSSC72P<CR> SC10P VSSC10P<CR> SC10P24 Set Resolution to 1080p/24 VSSC10P24<CR> SCVGA Set Resolution to VGA VSSCVGA<CR>...
- Page 13 V.5.6.0 EVENT PARAMETER function example CN ** CONTRAST change PVCN 50<CR> BR ** BRIGHTNESS Change PVBR 12<CR> PVCM 50<CR> CM ** CROMA LEVEL change HUE ** HUE Change PVHUE 50<CR> DNR OFF DNR change PVDNR OFF<CR> DNR LOW PVDNR LOW<CR> DNR MID PVDNR MID<CR>...
- Page 14 V.5.6.0 ※Remote Lock/Panel Lock EVENT PARAMETER function example REMOTE LOCK ON REMOTE CONTROL LOCK ON/OFF SYREMOTE LOCK ON<CR> REMOTE LOCK OFF SYREMOTE LOCK OFF<CR> PANEL LOCK ON PANEL BUTTON(Except MASTER VOL.)CONTROL LOCK ON SYPANEL LOCK ON<CR> PANEL LOCK OFF PANEL BUTTUM & MASTER VOL. CONTROL LOCK OFF SYPANEL LOCK OFF<CR>...
