Summary of Contents for TRENDnet TV-IP501W

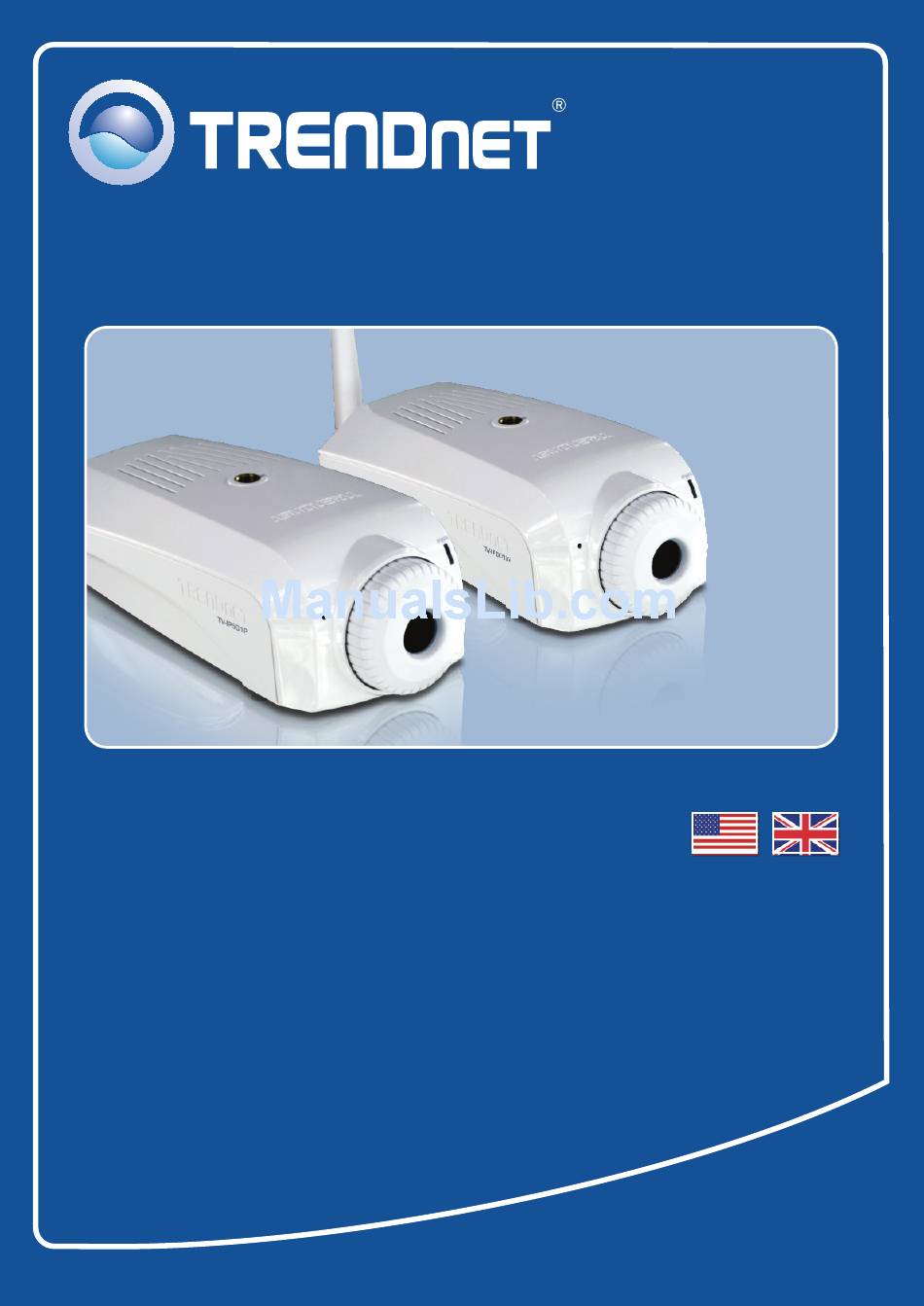

- Page 1 Quick Installation Guide TV-IP501P TV-IP501W 1.01...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ...................... 1 1. Before You Start ................. 2. Hardware Installation and Configuration ..........3. Power over Ethernet (PoE) Installation (TV-IP501P only) ....Troubleshooting ..................Version 07.08.2009... -
Page 3: English
VGA Resolution: 800 x 600 or above Web Brower: Internet Explorer (6.0 or higher) Wireless router or access point (TV-IP501W) An available DHCP Server –routers usually have a built-in DHCP server. Power over Ethernet (PoE) Switch (e.g. TPE-S80WS) (TV-IP501P only) (Optional) Injector (e.g TPE-111GI) (TV-IP501P only) (Optional) - Page 4 4 Gigabit Ports and 2 Mini-GBIC Slots (TPE-224WS) Internet 300Mbps Wireless N ADSL2/2+ Modem Router (TEW-635BRM) ProView Wireless Internet Camera ProView Wireless Internet Camera (TV-IP501W) (TV-IP501W) ProView Wireless Internet Camera (TV-IP501W) Internet 300Mbps Wireless N ADSL2/2+ Modem Router (TEW-635BRM)
-
Page 5: Hardware Installation And Configuration
2. Hardware Installation and Configuration Note: 1. It is recommended that you configure the IP Camera from a wired computer. 2. If you would like to use IPViewPro 2.0 software, please install the software by clicking the Install IPView Pro 2.0 in the Autorun window and refer to the User's Guide on the CD for more information. - Page 6 5. Click Close. 6. Double click on the SetupWizard icon on your desktop. 7. Connect a RJ-45 network cable from a Switch/Router to the Ethernet port on the IP Camera. 8. Connect the AC Power Adapter to the IP Camera and then to a power outlet.
- Page 7 11. Enter your ID and password. Then click Next. By default: ID: admin Password: admin 12. Configure the Camera Name and Camera Time. Then click Next. 13. If you would like to change the administrator password, click Change Password, enter a new password, retype the new password and then click Next.
- Page 8 Note: If you have the TV-IP501P, please skip to step 17. If you have the TV-IP501W, continue on to step 15. 15. Click I want to use wireless for the camera and then click Next. 16. Select your wireless network from the dropdown list.
- Page 9 Next. 20. Disconnect the RJ-45 cable. Wait a minute and then click Next. Note: The TV-IP501W will not work wirelessly until you disconnect the Ethernet cable from the back of the camera 21. Please wait a minute while the TV-IP501W connects to your wireless router or access point.
- Page 10 23. Enter the User name and Password, and then click OK. By default: User Name: admin Password: admin 24. Click View Video | Active X or View Video | Java. 25. If you clicked on View Video | Active X, right click on the Internet Explorer Information Bar and select Install ActiveX Control.
- Page 11 27. Live video will now appear. Your installation is now complete. Note: For detailed information regarding the TV-IP501P/TV-IP501W configuration and advanced settings, please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...
-
Page 12: Power Over Ethernet (Poe) Installation (Tv-Ip501P Only)
3. Power over Ethernet (PoE) Installation (TV-IP501P only) Using the TV-IP501P with a PoE switch 1. Connect a RJ-45 cable from the Power Over Ethernet switch (e.g. TPE-80WS) to the LAN port on the Internet Camera Server. 2. Verify that the LEDs are on. Please refer to step 4 in the Hardware Installation section. - Page 13 Using the TV-IP501P with a Injector (TPE-111GI) 1. Connect the Power Cord to the Injector. Then connect the Power Cord to an outlet. 2. Connect a CAT-5e/6 cable from a switch to the TPE-111GI's DATA IN port. 3. Connect a CAT-5e/6 cable from the TV-IP501P to the TPE-111GI's DATA OUT port.
-
Page 14: Troubleshooting
First, go to the TCP/IP settings on your computer and assign a static IP address on your computer's network adapter in the subnet of 192.168.10.x. Since the default IP address of the TV-IP501P/TV-IP501W is 192.168.10.30, do not assign a static IP address of 192.168.10.30 on your computer's network adapter. Second, open Internet Explorer and enter http://192.168.10.30 into the address bar. - Page 15 First, make sure that you are using a browser that supports ActiveX or Java. Second, make sure that ActiveX or Java is installed and enabled. How do I connect the TV-IP501W to my wireless router or access point? Make sure that you configure the camera to have the same SSID, encryption mode and key (if enabled).
- Page 18 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 19 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2009. All Rights Reserved. TRENDnet.
