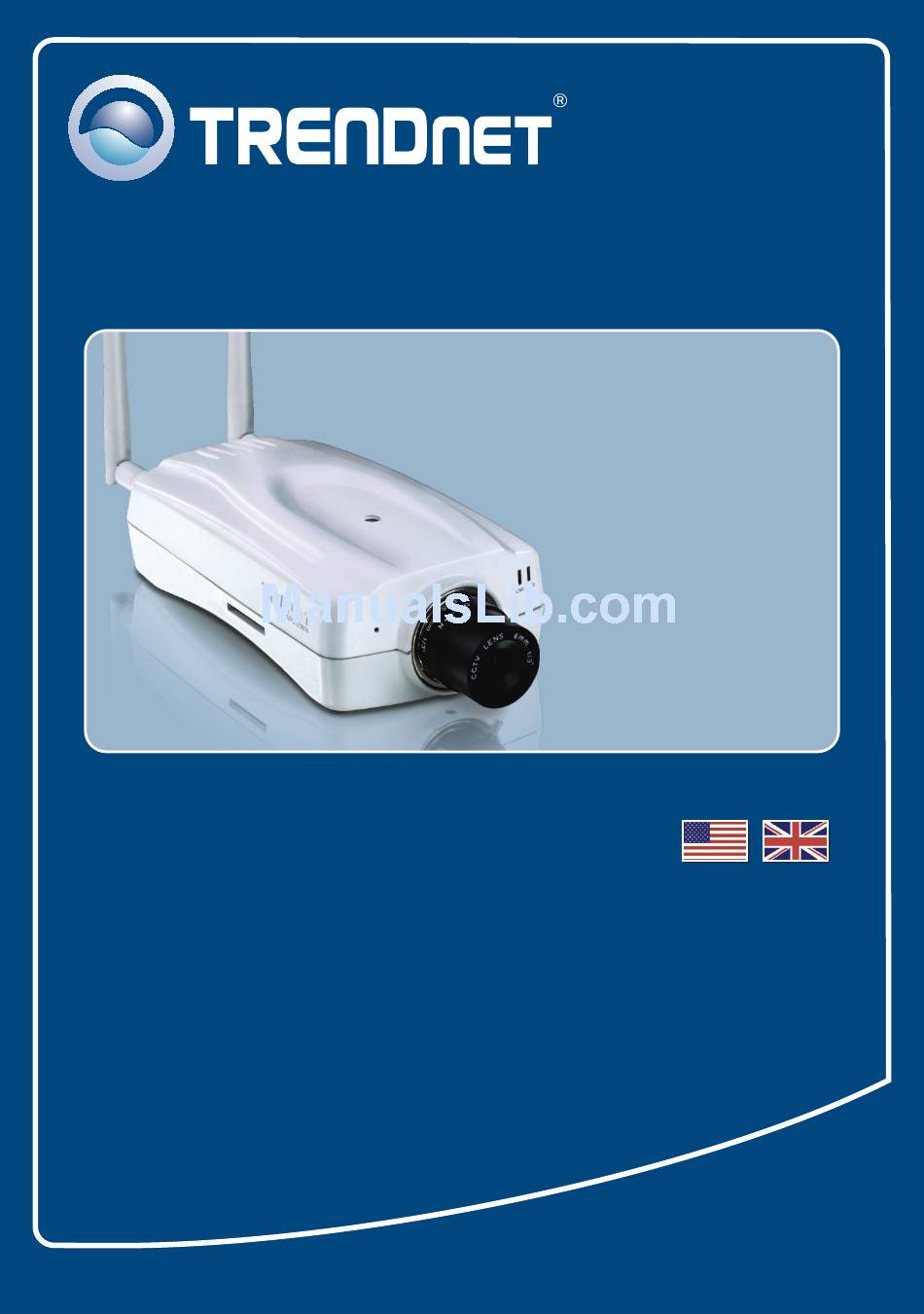

- Page 1 Quick Installation Guide TV-IP512WN H/W: V1...
- Page 2 Table of Contents Table of Contents English ...................... 1 1. Before You Start ................. 2. Hardware Installation and Configuration ..........Troubleshooting ..................Version 04.09.2009...
-
Page 3: English
1. Before You Start Package Contents TV-IP512WN Utility CD-ROM Multi-Language Quick Installation Guide 2 x 2dBi Detachable Antenna RJ-45 Cable Mounting Kit AC Power Adapter (12V, 1.5A) System Requirements 10/100Mbps Ethernet Adapter CD-ROM Drive CPU: 2GHz processor or above Memory: 256MB RAM or above / 512MB RAM or above (Windows Vista) - Page 4 Application Wireless N Internet Camera Server with 2-Way Audio (TV-IP512WN) Internet 300Mbps Wireless N ADSL2/2+ Modem Router (TEW-635BRM) 24-Port 10/100Mbps Web Smart PoE switch with 4 Gigabit Ports and 2 Mini-GBIC Slots (TPE-224WS) Power + Data (PoE) Power + Data (PoE)
-
Page 5: Hardware Installation And Configuration
2. Hardware Installation and Configuration Note: 1. It is recommended that you configure the IP Camera from a wired computer. 2. If you would like to use IPViewPro 2.0 software, please install the software by clicking the Install IPView Pro 2.0 in the Autorun window and refer to the User's Guide on the CD for more information. - Page 6 5. Click Close. 6. Double click on the SetupWizard icon on your desktop. 7. Attach the 2 antennas to the IP camera. 8. Connect a RJ-45 network cable from a Switch/Router to the Ethernet port on the IP Camera. 9. Connect the AC Power Adapter to the IP Camera and then to a power outlet.
- Page 7 11. Select the IP camera and click Next. 12. Enter your ID and password. Then click Next. By default: ID: admin Password: admin 13. If you would like to change the administrator password, click Change Password, enter a new password, retype the new password and then click Next.
- Page 8 20. Disconnect the RJ-45 cable and unplug the power. Then plug the power back in. Then verify the Power and Link LEDs are on. Note: The TV-IP512WN will not work wirelessly until you disconnect the Ethernet cable from the back of the camera. English...
- Page 9 21. Click on the following URL or click Link to open up the browser configuration. 22. Right click on the yellow bar and select Install ActiveX Control. 23. Click Install. 24. Right click on the yellow bar and select Install ActiveX Control. 25.
- Page 10 27. Use the command icons to control the camera. Your installation is now complete. Note: For detailed information regarding the TV-IP512WN configuration and advanced settings, please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com.
-
Page 11: Troubleshooting
First, go to the TCP/IP settings on your computer and assign a static IP address on your computer's network adapter in the subnet of 192.168.10.x. Since the default IP address of the TV-IP512WN is 192.168.10.30, do not assign a static IP address of 192.168.10.30 on your computer's network adapter. Second, open Internet Explorer and enter http://192.168.10.30 into the address bar. - Page 12 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
- Page 13 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
- Page 14 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2009. All Rights Reserved. TRENDnet.
