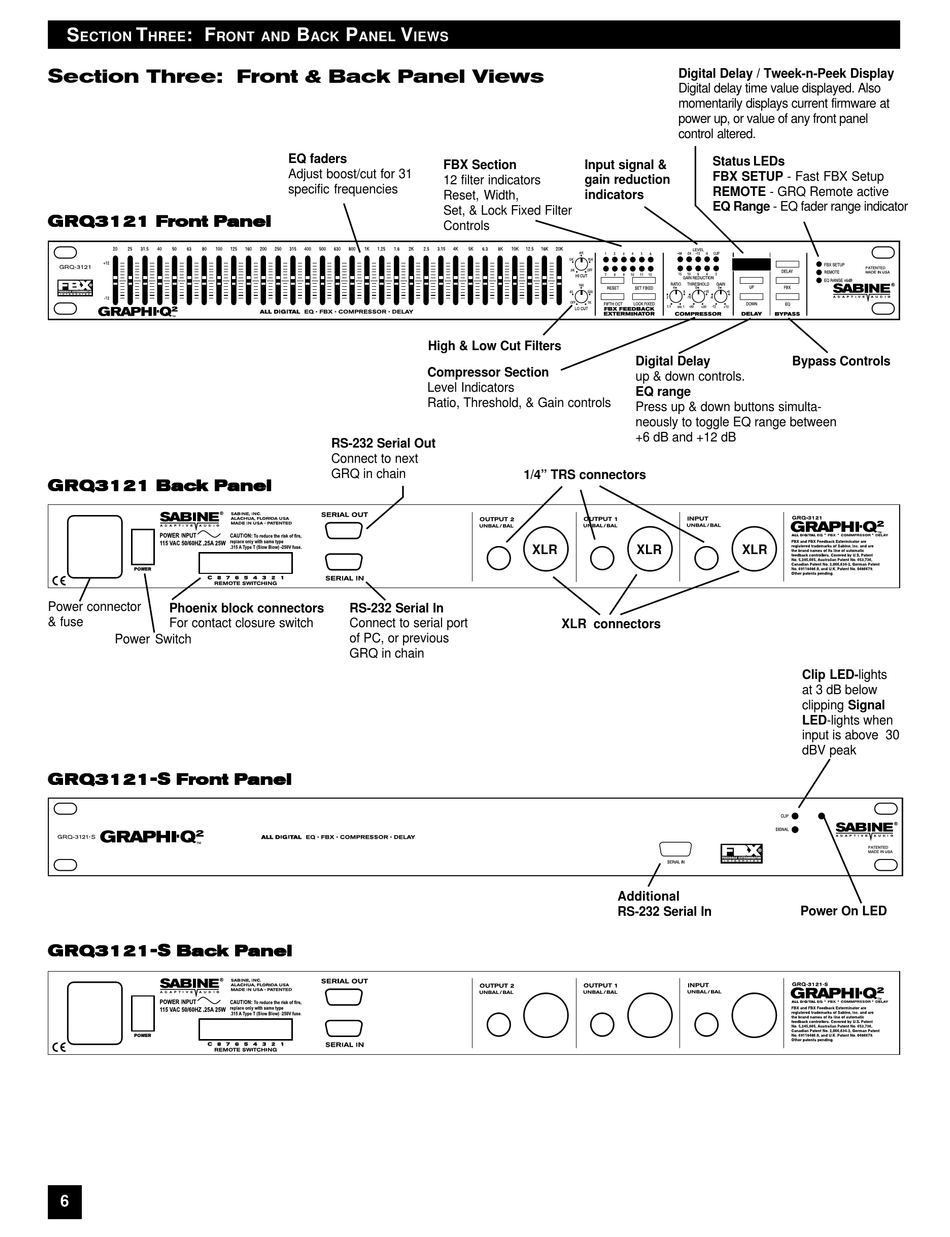

Section Three: Front & Back Panel Views
G G G G G R R R R R Q3 Q3 Q3 Q3 Q3121 Front Panel 121 Front Panel 121 Front Panel 121 Front Panel 121 Front Panel
G G G G G R R R R R Q3 Q3121 Bac Q3 Q3 Q3 121 Bac 121 Back Panel 121 Bac 121 Bac k Panel k Panel k Panel k Panel
Power connector
Phoenix block connectors
& fuse
For contact closure switch
Power Switch
G G G G G R R R R R Q3 Q3121-S Front Panel Q3 Q3 Q3 121-S Front Panel 121-S Front Panel 121-S Front Panel 121-S Front Panel
G G G G G R R R R R Q3 Q3 Q3 Q3 Q3121-S Bac 121-S Bac 121-S Bac 121-S Bac 121-S Back Panel k Panel k Panel k Panel k Panel
6
B P V
ACK ANEL IEWS
EQ faders
FBX Section
Adjust boost/cut for 31
12 filter indicators
specific frequencies
Reset, Width,
Set, & Lock Fixed Filter
Controls
High & Low Cut Filters
Compressor Section
Level Indicators
Ratio, Threshold, & Gain controls
RS-232 Serial Out
Connect to next
GRQ in chain
RS-232 Serial In
Connect to serial port
of PC, or previous
GRQ in chain
Digital Delay / Tweek-n-Peek Display
Digital delay time value displayed. Also
momentarily displays current firmware at
power up, or value of any front panel
control altered.
Input signal &
gain reduction
indicators
Digital Delay
up & down controls.
EQ range
Press up & down buttons simulta-
neously to toggle EQ range between
+6 dB and +12 dB
1/4" TRS connectors
XLR XLR
XLR connectors
Additional
RS-232 Serial In
Status LEDs
FBX SETUP - Fast FBX Setup
REMOTE - GRQ Remote active
EQ Range - EQ fader range indicator
Bypass Controls
XLR
Clip LED-lights
at 3 dB below
clipping Signal
LED-lights when
input is above 30
dBV peak
Power On LED
