5.3. USE WITH A POWERED MIXER

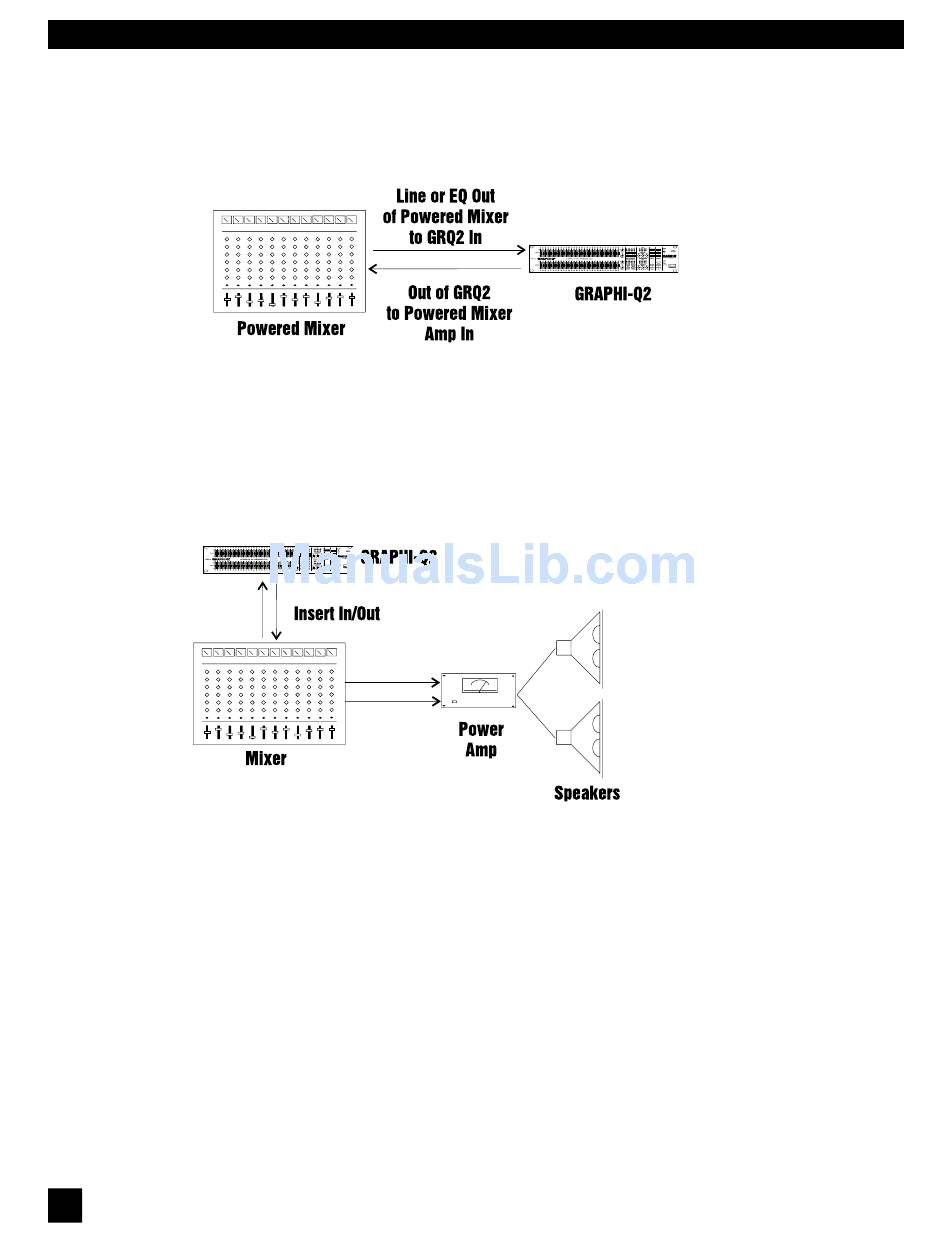

With a powered mixer, the Graphi-Q2 must be inserted between the "Line Out" jack(s) (line level output,
before the signal goes through the amplifier) and the "Amplifier In" jack(s), as shown below:
NOTE: Not all powered mixers will offer such patch points, or they may label them differently. When
in doubt consult the manual of the console manufacturer.

5.4. USE AT A MIXER INSERT POINT

The Graphi-Q2 may also be used at a mixer insert point, either for a single input channel, or for a group
or bus insert point. This will dedicate all of the features and processing power of the Graphi-Q2 to one
or two single channels on your mixer, or to a subgroup of inputs (for example, all the drums in your mix).
The patching will look like this:
