PBY-5530
Yamaha Models
YFM 350 YWBJ Big Bear 97-99
YFM 350 UBL Big Bear 99
YFM 350 Raptor
YFM 350 (FX) Wolverine 04 & Older
YFM 400 Big Bear 00-06
YFM 400 FWBL Kodiak 99
May fit additional models see Master List
Caution: Do not exceed 5 MPH with the blade or it's brackets installed
Remove the mount plate(s) for trail riding where extra ground clearance is needed
13054
Front
1602 Corporate drive
P.O. Box 67
Warrensburg, MO 64093
1-877-627-5860

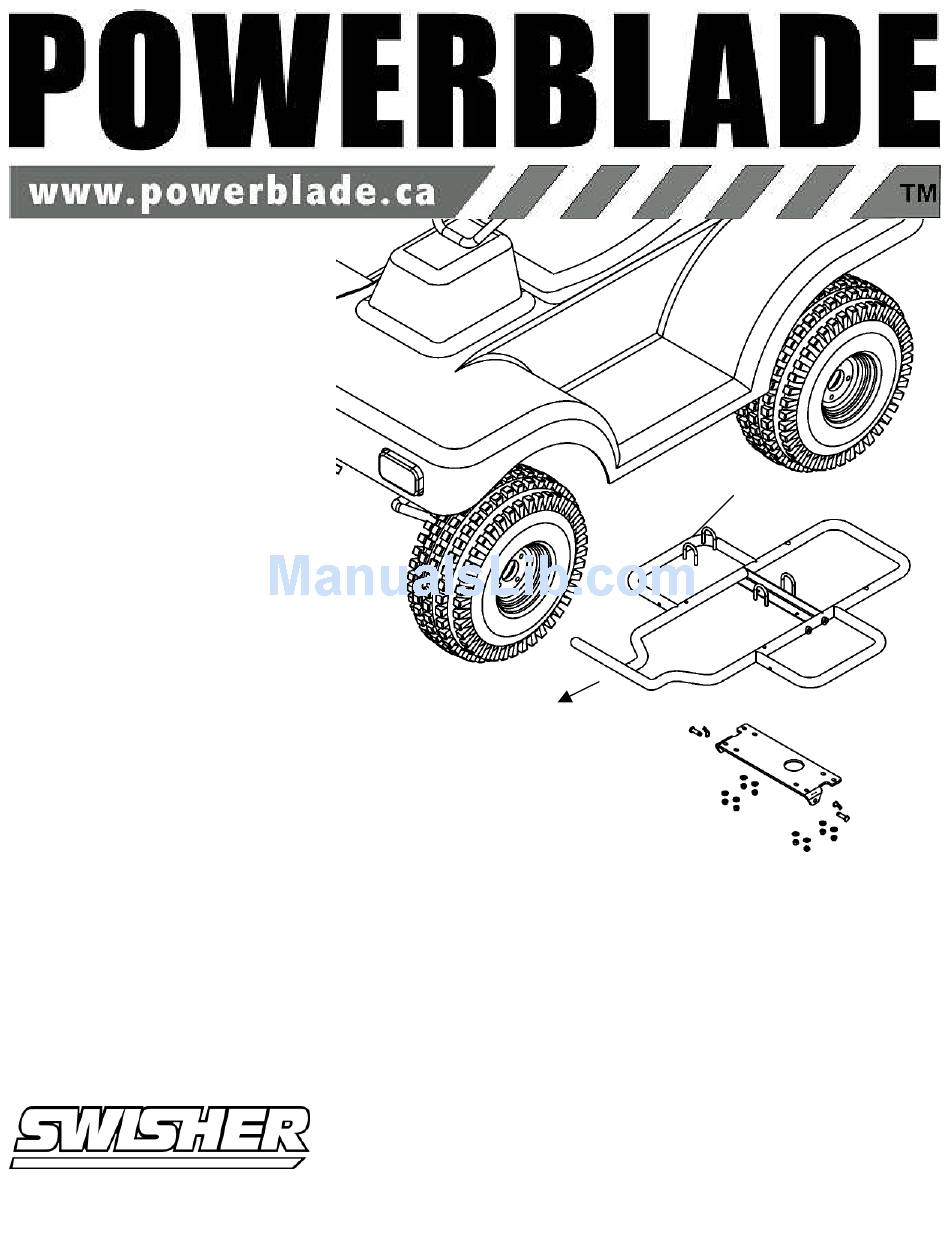

Partial Frame View
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swisher PowerBlade PBY-5530
Summary of Contents for Swisher PowerBlade PBY-5530
- Page 1 PBY-5530 Yamaha Models YFM 350 YWBJ Big Bear 97-99 YFM 350 UBL Big Bear 99 YFM 350 Raptor Partial Frame View YFM 350 (FX) Wolverine 04 & Older YFM 400 Big Bear 00-06 YFM 400 FWBL Kodiak 99 May fit additional models see Master List Front Caution: Do not exceed 5 MPH with the blade or it’s brackets installed...
- Page 2 Assembly Instructions Note. Right and Left direction are from the operator position. The lower skid plate, If so equipped, may need to be removed. Please retain plate and hardware to be reinstalled if the plate is removed.. With the mounting tabs toward the front as shown, mount the brackets using the U Bolts (item 2) which mount over the frame rails Snug the plate to the frame and slip it rearward to line up with the Footrest weld.
