Part Number: KVF009
INSTRUCTIONS:
1.

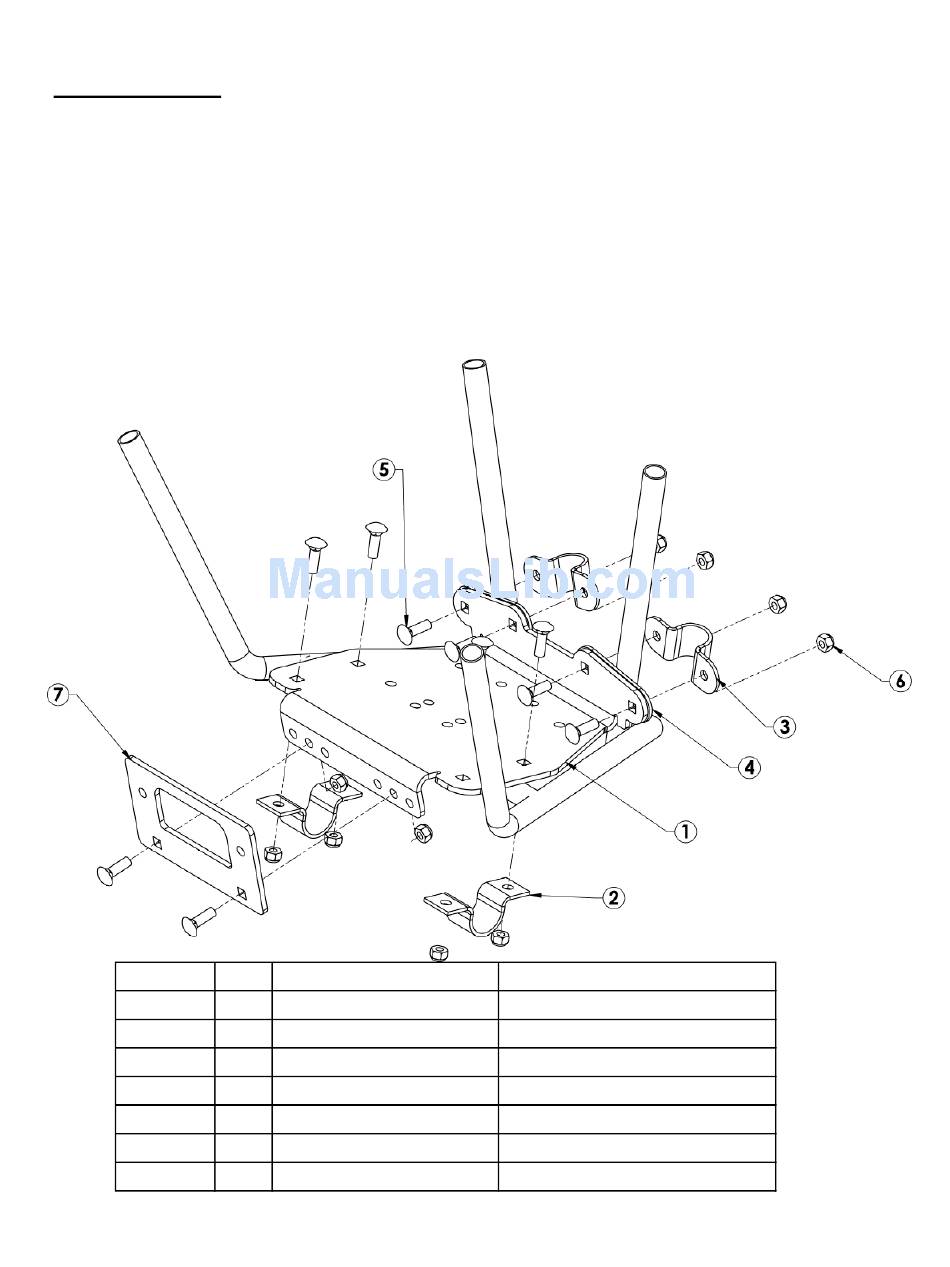

Install four carriage bolts in the rear of the plate. Place the spacers over the bolts and retain
them with the push nuts (not shown). Position the winch mount plate on the atv bumper
bars as shown below.
2.
Install Rear Frame Clamps and loosely assemble (4) 5/16 carriage bolts and nyloc nuts.
Install Front Frame Clamps and loosely assemble (4) 5/16 carriage bolts nyloc nuts. Assure
plate is centered on all atv bars and securely tighten nuts.
3.
Attach the Fairlead Bracket using (2) 5/16 carriage bolts and nyloc nuts.
4.
Using fasteners supplied with the winch, assemble winch to the winch mount plate.
5.
Using instructions supplied with winch, wire accordingly.
ITEM NO. QTY. PART NO.
11528
1
1 11524
2
2 11525
3
2 11526
4
2 11527
5
10 10197
6
10 NB181
7
1 10999
Please call 1-800-222-8183 with questions or comments
Fits Models: -Brute Force 650
DESCRIPTION
Mounting Plate; KVF009
Front Frame Clamp, KVF009
Rear Frame Clamp, KVF009
Rear Frame Clamp Spacer
5/16-18 X 1 Carriage Bolt
5/16-18 NYLOC NUT
Fairlead Bracket
4 x 4 (Straight Axle)
Rev 06-310
