PBY-5520
Yamaha Models
600 Grizzly
01 & Older
May fit additional models see Master List
Caution: Do not exceed 5 MPH with the blade or it's brackets installed
Remove the mount plate(s) for trail riding where extra ground clearance is needed
13094
Front
1602 Corporate drive
P.O. Box 67
Warrensburg, MO 64093
1-877-627-5860

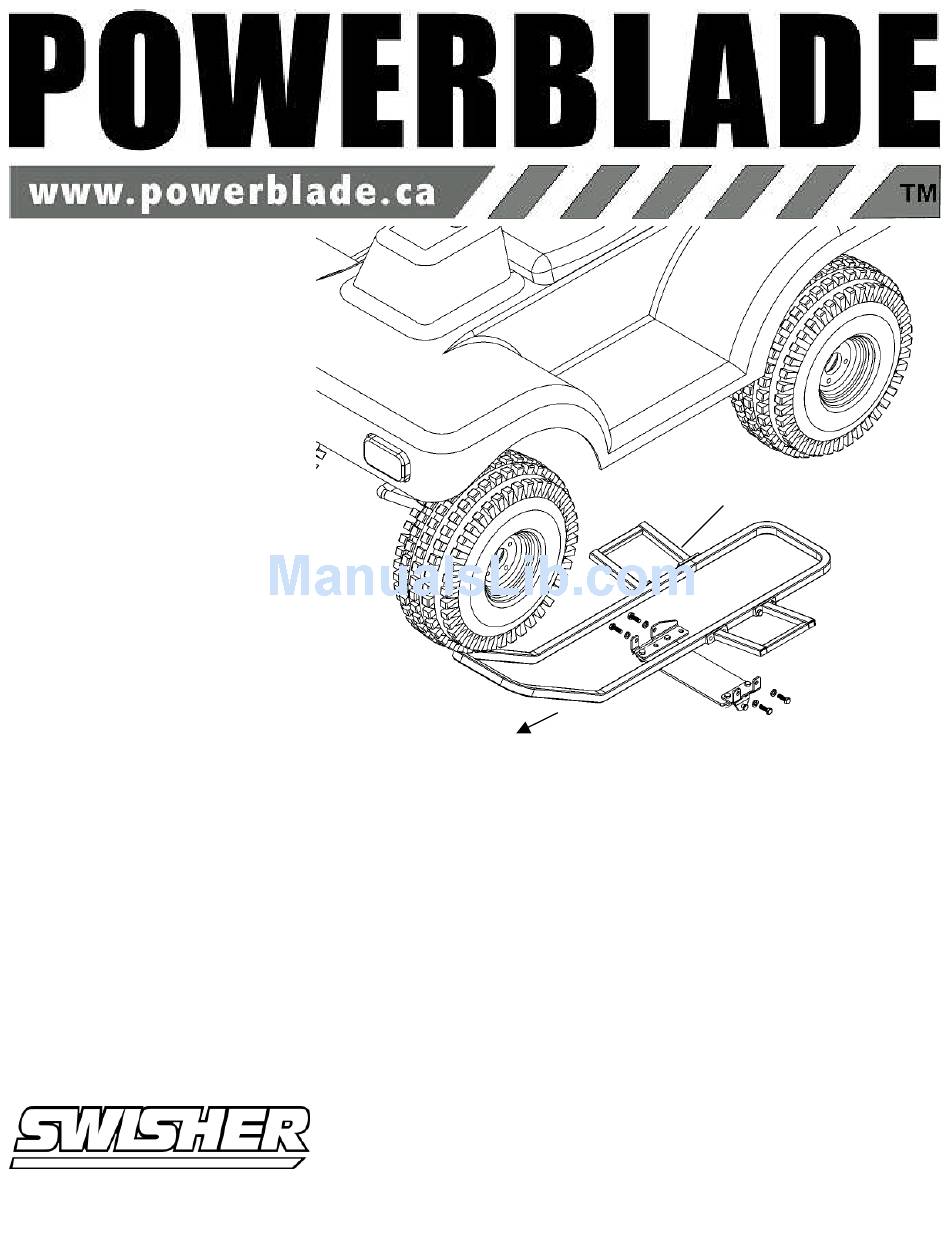

Partial Frame View
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swisher PowerBlade PBY-5520
Summary of Contents for Swisher PowerBlade PBY-5520
- Page 1 PBY-5520 Yamaha Models 600 Grizzly 01 & Older May fit additional models see Master List Partial Frame View Front Caution: Do not exceed 5 MPH with the blade or it’s brackets installed Remove the mount plate(s) for trail riding where extra ground clearance is needed 1602 Corporate drive P.O.
- Page 2 Assembly Instructions Note. Right and Left direction are from the operator position. The lower skid plate, If so equipped, may need to be removed. Please retain plate and hardware to be reinstalled if the plate is removed.. Align the holes in the left Angle Mount (Item 2) with the holes in the Mounting plate as shown. Insert 2 bolts ( Item 7 ) and Nuts ( Item 4 ) and snug up into position The Right Angle Mount can be positioned in two different positions.
