PBH-1580
Honda TRX400 Foreman 2002 and Older
Honda TRX450 ES Foreman 4X4 1998 – 2004
Honda TRX450 S Foreman 4X4 1998 – 2004
Caution:
Do not exceed 5 MPH with the blade or
it's brackets installed
Remove the mount plate for trail riding where
extra ground clearance is needed
12965
1602 Corporate drive
P.O. Box 67
Warrensburg, MO 64093
1-877-627-5860

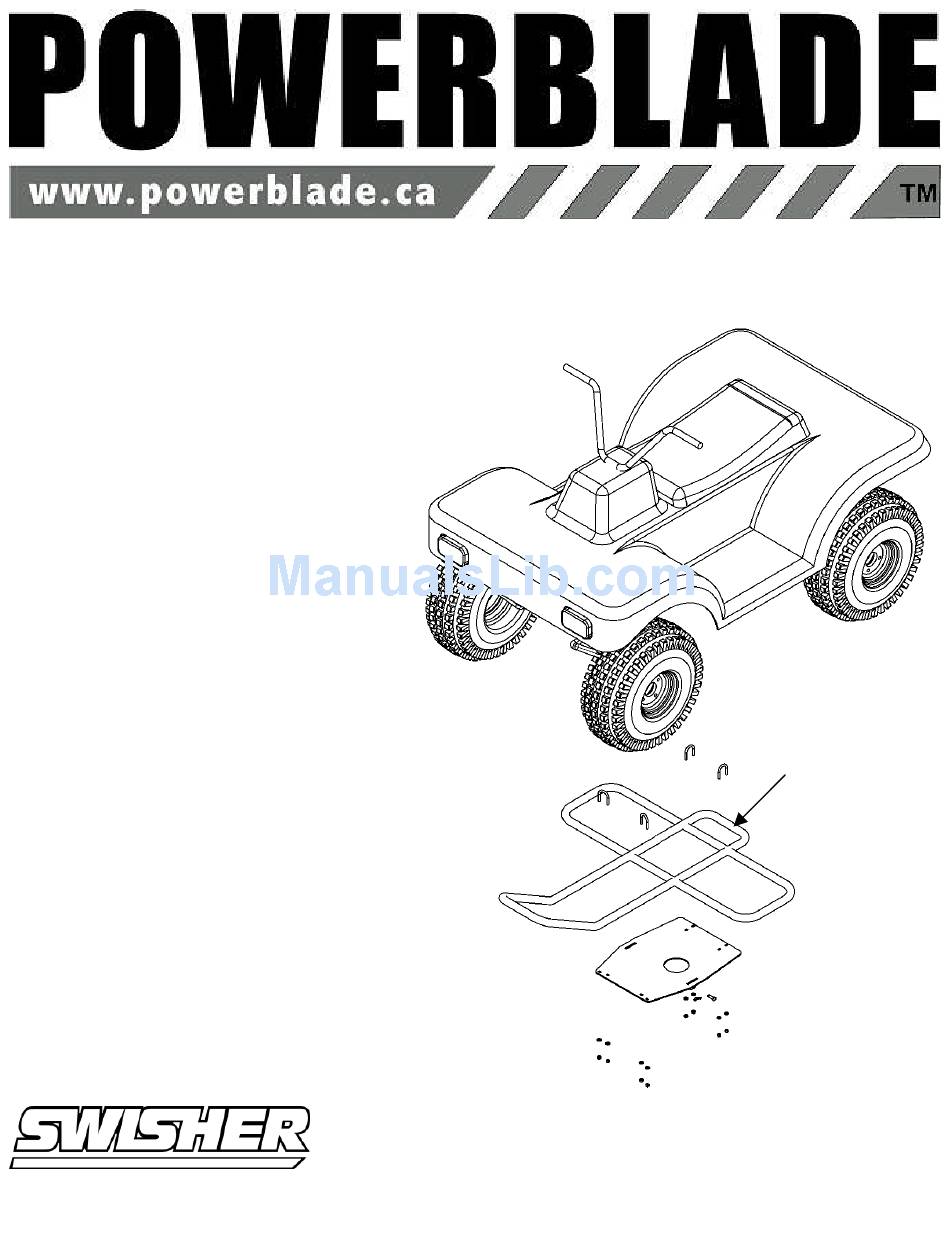

Partial Honda
Frame
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swisher PowerBlade PBH-1580
Summary of Contents for Swisher PowerBlade PBH-1580
- Page 1 PBH-1580 Honda TRX400 Foreman 2002 and Older Honda TRX450 ES Foreman 4X4 1998 – 2004 Honda TRX450 S Foreman 4X4 1998 – 2004 Partial Honda Frame Caution: Do not exceed 5 MPH with the blade or it’s brackets installed Remove the mount plate for trail riding where...
- Page 2 Assembly Instructions Note. Right and Left direction are from the operator position. The lower skid plate may need to be removed. Please retain plate and hardware to be reinstalled if the plate is removed.. Place the mount plate up against the bottom of the frame. Center the blade mounting tabs between the two foot rest pegs Using the four U Bolts (Part 2) Attach the plate to the frame tube.
