PBH-1560
Honda Models
TRX 500 Rubicon 04 & Older
May fit additional models see Master List
Caution: Do not exceed 5 MPH with the blade or it's brackets installed
Remove the mount plate for trail riding where extra ground clearance is needed
13055
Front
1602 Corporate drive
P.O. Box 67
Warrensburg, MO 64093
1-877-627-5860
Advertisement
Table of Contents
Related Manuals for Swisher PowerBlade PBH-1560
Summary of Contents for Swisher PowerBlade PBH-1560
- Page 1 PBH-1560 Honda Models TRX 500 Rubicon 04 & Older May fit additional models see Master List Front Caution: Do not exceed 5 MPH with the blade or it’s brackets installed Remove the mount plate for trail riding where extra ground clearance is needed 1602 Corporate drive P.O.

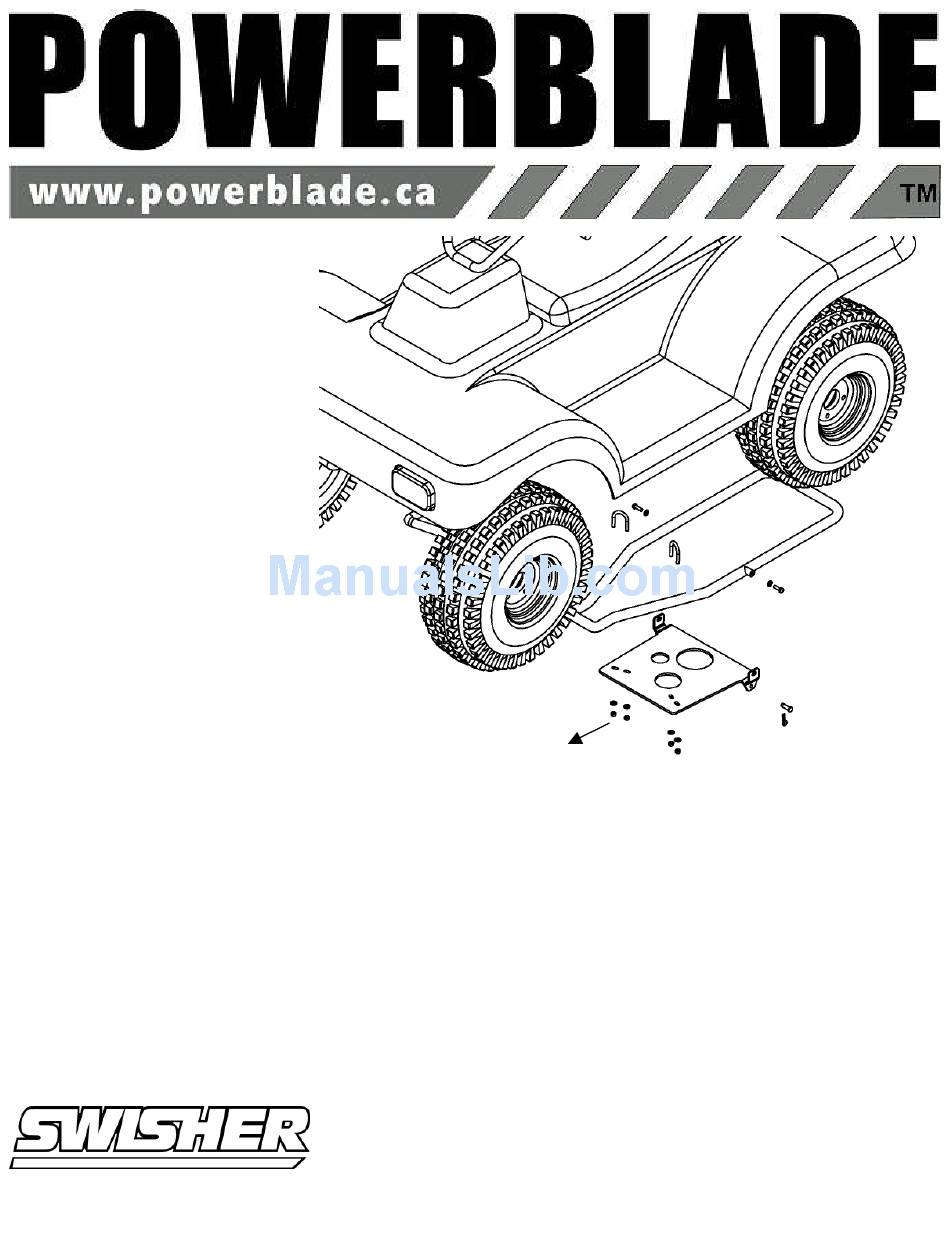

- Page 2 Assembly Instructions Note. Right and Left direction are from the operator position. The lower skid plate, If so equipped, may need to be removed. Please retain plate and hardware to be reinstalled if the plate is removed.. After removing the front skid plate, place the mount plate up against the bottom of the frame. Center the blade mounting tabs between the two foot rest pegs Using the two U Bolts (Part 2) Attach the plate to the Front frame tubes.
