PBA-6540
Arctic Cat Models
400i 2X4 & 4X4 02-05
400i 4X4 TBX 04
500i 4X4 Manual
& Auto 20-04
500i 4X4 TBX 03-04
500i Two Seater 03
650 Twin 04
May fit additional models see Master List
Caution: Do not exceed 5 MPH with the blade or it's brackets installed
Remove the mount plate(s) for trail riding where extra ground clearance is needed
13051
Front
1602 Corporate drive
P.O. Box 67
Warrensburg, MO 64093
1-877-627-5860

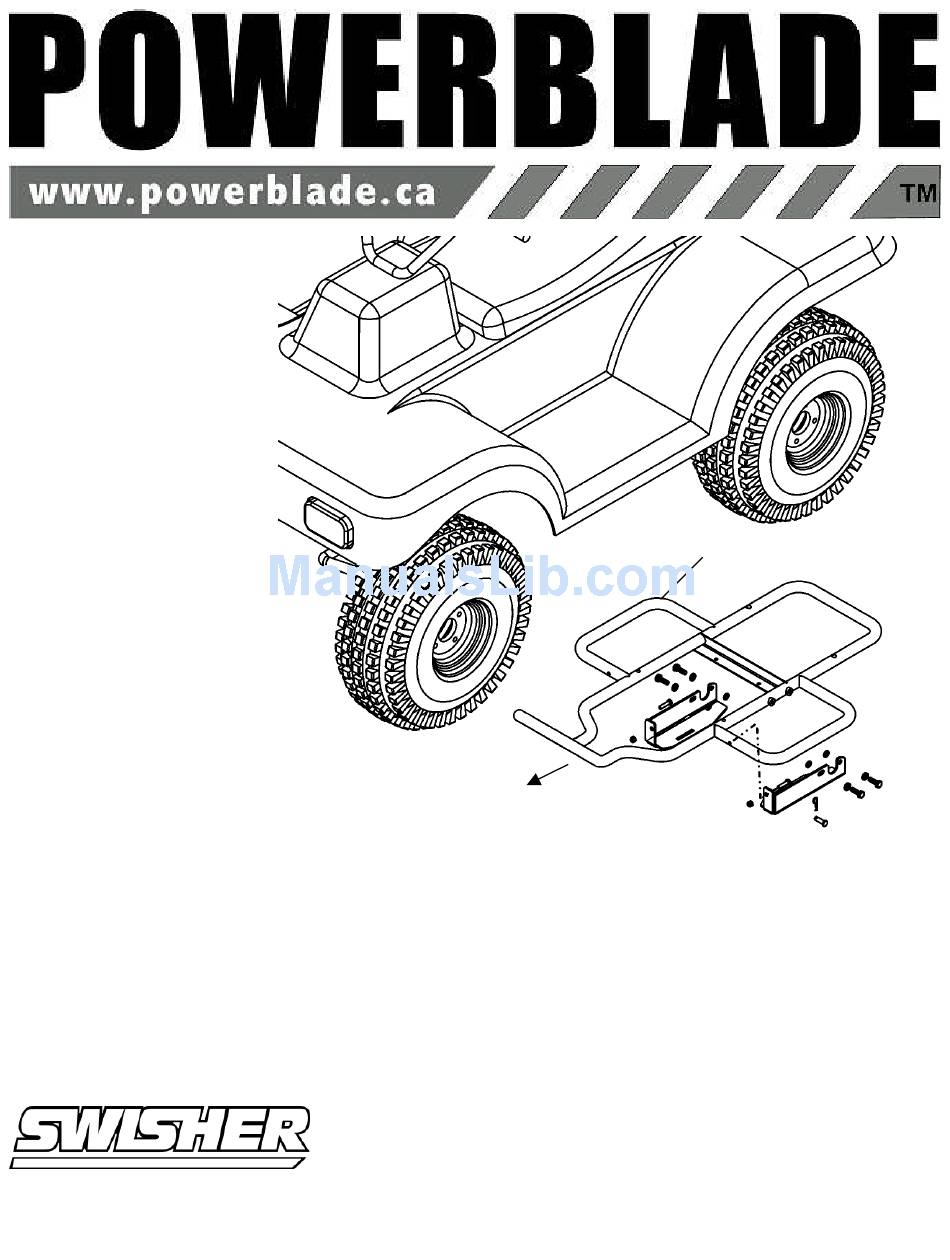

Partial Frame View
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swisher PowerBlade PBA-6540
Summary of Contents for Swisher PowerBlade PBA-6540
- Page 1 PBA-6540 Arctic Cat Models 400i 2X4 & 4X4 02-05 400i 4X4 TBX 04 500i 4X4 Manual & Auto 20-04 500i 4X4 TBX 03-04 500i Two Seater 03 650 Twin 04 Partial Frame View May fit additional models see Master List Front Caution: Do not exceed 5 MPH with the blade or it’s brackets installed...
- Page 2 Assembly Instructions Note. Right and Left direction are from the operator position. The lower skid plate, If so equipped, may need to be removed. Please retain plate and hardware to be reinstalled if the plate is removed.. Remove the foot rest bolts. You may need to Remove the front bolts to assist in the mounting. With the mounting tabs toward the front, mount the brackets using the longer bolt and lock washers provided.
