BOOK# 091-12DV-HO
INSTRUCTION MANUAL

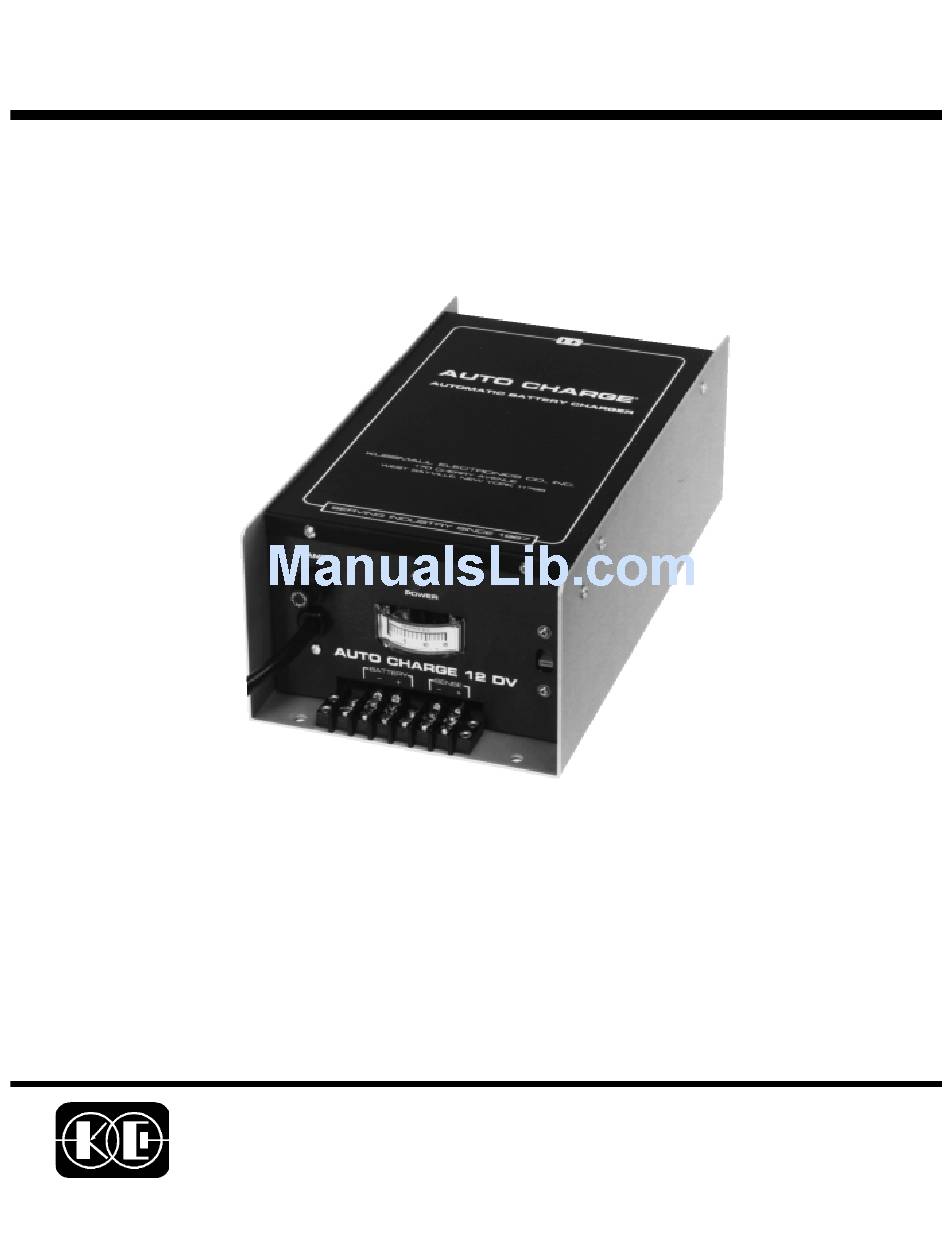

AUTO CHARGE 12HO DV
AUTOMATIC BATTERY CHARGER
MODEL #091-12HO DV
NOTE :
This charger is designed for
vehicles with a single
battery system
INPUT :120/230 volt, 50/60 Hz
3 YEAR WARRANTY
.
KUSSMAUL ELECTRONICS CO., INC
170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796-1221
TEL: in NY 631-567-0314
TOLL FREE: 800-346-0857
FAX: 631-567-5826
Advertisement
Related Manuals for KUSSMAUL 091-12HO-DV
Summary of Contents for KUSSMAUL 091-12HO-DV
- Page 1 NOTE : This charger is designed for vehicles with a single battery system INPUT :120/230 volt, 50/60 Hz 3 YEAR WARRANTY KUSSMAUL ELECTRONICS CO., INC 170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796-1221 TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: 631-567-5826...
- Page 2 1.0 INTRODUCTION This manual describes the installation and wiring for the Auto-Charge 12HO DV Automatic Battery Charger. It is suggested that the installer read the entire instructions to become famil- iar with the tasks involved before starting. 2.0 VEHICLE WIRING INSTALLATION The installation of the vehicle wiring provides a direct connection between the battery and the Auto-Charge 12HO DV Automatic Battery Charger.
-
Page 3: Specifications
4.0 SPECIFICATIONS Input: 230 volts/115 volts, 50/60 Hz, switch selectable Output Volts: Adjustable, 13.25 volts nominal Output Current: 0 - 20 Amps, D.C., Current Limited Charge Indicator: 0 - 25 Amps. Weight: 13 pounds Size: 12.75 x 6.73 x 4.25 inches SPARE PARTS LIST PART NUMBER DESCRIPTION... -
Page 4: Installation Wiring Diagram
INSTALLATION WIRING DIAGRAM IMPORTANT: Wire size is for a WIRE SIZE CHART maximum length of 20 feet. If wiring CONNECTION ITEM DEFINITION WIRE is to be longer, larger wiring is re- SIZE quired. Additional information is BATTERY NEGATIVE CHARGING LEAD BAT- available on request. -
Page 5: Specification & Outline
