INSTRUCTION MANUAL

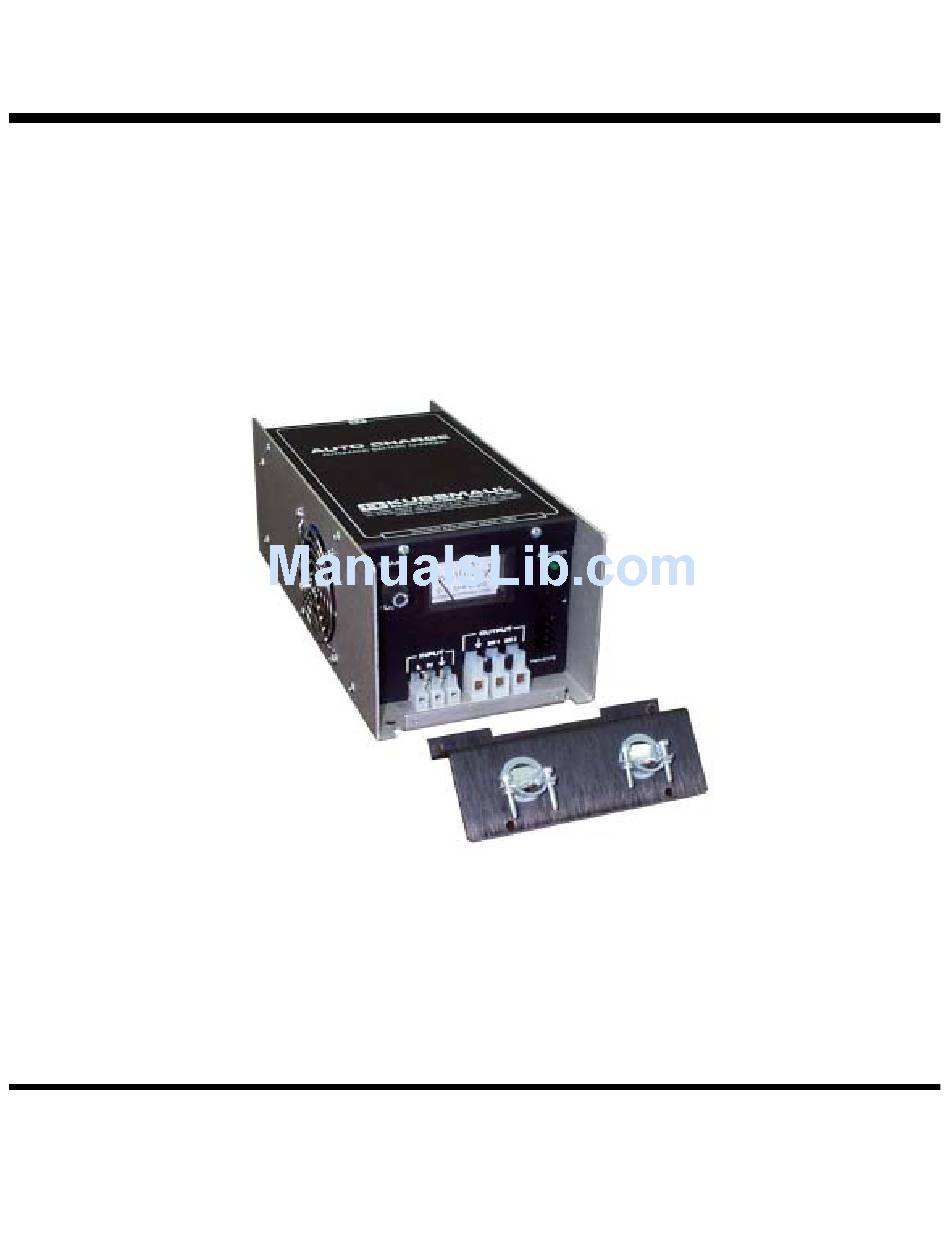

AUTO CHARGE 11
AUTOMATIC BATTERY CHARGER
U.L. Configuration
MODEL #091-11-XX
NOTE :
This charger is designed for vehicles with
dual batteries and negative ground.
CAUTION
This unit should not be exposed to water spray or rain
3 YEAR WARRANTY
.
KUSSMAUL ELECTRONICS CO., INC
170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796
1
TEL: in NY 631-567-0314
TOLL FREE: 800-346-0857
FAX: 631-567-5826
Advertisement
Table of Contents
Related Manuals for KUSSMAUL 091-11 Series
Summary of Contents for KUSSMAUL 091-11 Series
- Page 1 CAUTION This unit should not be exposed to water spray or rain 3 YEAR WARRANTY KUSSMAUL ELECTRONICS CO., INC 170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796 TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: 631-567-5826...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTION – This manual contains important safety and operat- ing instructions for battery charger Model 091-11-xx 2. Do not expose charger to rain or snow. 3. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons. -
Page 3: Personal Precautions
10. Warning – RISK OF EXPLOSIVE GASES a) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BAT- TERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPOR- TANCE THAT EACH TIME BEFORE USING THE CHARGER, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY. -
Page 4: Preparing To Charge
12. PREPARING TO CHARGE a) If necessary to remove battery from vehicle to charge, always remove grounded terminal from battery first. Make sure all accessories in the vehicle are off, so as not to cause an arc. b) Be sure area around battery is well ventilated while battery is being charged. Gas can be forcefully blown away by using a piece of cardboard or other nonmetallic material as a fan. - Page 5 SPARK NEAR BATTERY MAY CAUSE BATTERY EXPLOSION. TO REDUCE RISK OF A SPARK NEAR BATTERY: a) Position ac and dc cords to reduce risk of damage by hood, door, or moving engine part. b) Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to persons.
-
Page 6: Grounding And Ac Power Cord Connection Instructions
c) Connect POSITIVE (RED) charger wire to POSITIVE (POS, P, +) post of battery. d) Position yourself and free end of cable as far away from battery as possible – then connect NEGATIVE (BLACK) charger wire to free end of cable. e) Do not face battery when making final connection. - Page 7 DANGER – Before using adapter as illustrated, be certain that center screw of outlet plate is grounded. The green-colored rigid ear or lug extending from adapter must be connected to a properly grounded outlet – make certain it is grounded. If necessary, replace original outlet cover plate screw with a longer screw that will secure adapter ear or lug to outlet cover plate and make ground connection to grounded outlet.
-
Page 8: Installation
INTRODUCTION The Auto Charge 11 Battery Charger is a compact completely automatic charger designed for installation on vehicles with two batteries. Two individual chargers are provided to charge the two batteries. Voltage is sensed separately for each battery so that each battery is charged according to its requirements. -
Page 9: Installation Wiring Diagram
INSTALLATION WIRING DIAGRAM Optional Bar-Graph Indicator 091-11-127 5 A M P P O W E R F U S E O U T P U T BAT 1 BAT 2 I N P U T Optional Economy R E M O T E Indicator A.C. -
Page 10: Specification & Outline
Output Current: see chart Charge Indicator: 0-15 amps 5% Weight: 12 lbs Model # Output Current Output Voltage Input Voltage Input Current Input Fuse 091-11-6 10 Amps 120, 50/60 Hz 2.5 Amps 3 Amp 091-11-12 10 Amps 120, 50/60 Hz 2.5 Amps... -
Page 11: Warranty
Vehicle Identification Vehicle Owner WARRANTY All products of Kussmaul Electronics Company Inc. are warranted to be free of defects of material or workmanship. Liability is limited to repairing or replacing at our factory, without charge, any material or defects which become apparent in normal use within 3 years from the date the equipment was shipped.
