BOOK# 091-12HO-1
INSTRUCTION MANUAL

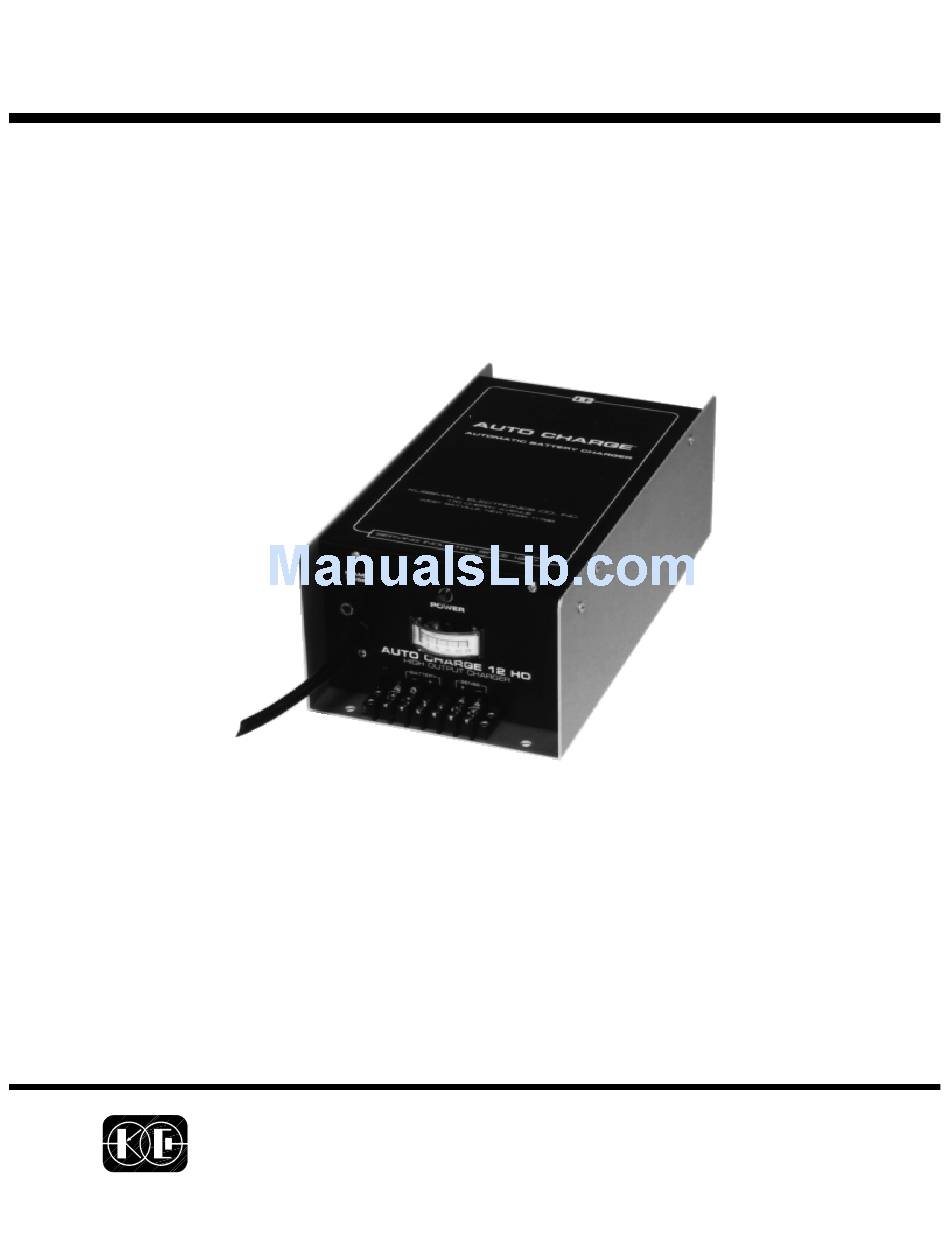

AUTO CHARGE 12HO
AUTOMATIC BATTERY CHARGER
MODEL #091-12HO-XX
NOTE :
This charger is designed for
vehicles with a single
battery system
3 YEAR WARRANTY
.
KUSSMAUL ELECTRONICS CO., INC
170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796
TEL: in NY 631-567-0314
TOLL FREE: 800-346-0857
FAX: 631-567-5826
Advertisement
Related Manuals for KUSSMAUL 091-12HO
Summary of Contents for KUSSMAUL 091-12HO
- Page 1 AUTOMATIC BATTERY CHARGER MODEL #091-12HO-XX NOTE : This charger is designed for vehicles with a single battery system 3 YEAR WARRANTY KUSSMAUL ELECTRONICS CO., INC 170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796 TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: 631-567-5826...
-
Page 2: Installation
INTRODUCTION The Auto Charge 12HO is Battery Charger is a compact completely automatic charger designed for installation on vehicles with a single battery system. Remote sensing permits long lines between the charger and the batteries by compensating for the voltage drop in the charging wires. -
Page 3: Installation Wiring Diagram
INSTALLATION WIRING DIAGRAM IMPORTANT: Wire size is for a WIRE SIZE CHART maximum length of 20 feet. If wiring is to be longer, larger wiring is CONNECTION ITEM DEFINITION WIRE SIZE required. Additional information is BAT- BATTERY NEGATIVE CHARGING LEAD available on request. -
Page 4: Specification & Outline
SPECIFICATION & OUTLINE SPECIFICATION CHART SPECIFICATIONS: Input: 115V 50/60Hz, 4 amps MODEL # AMPS VOLTAGE Output: see chart 091-12HO-6 Output Current: see chart 091-12HO-12 Charge Indicator: 0-25 amps 5% 091-11HO-24 Weight: 22 lbs 091-12HO-32 091-12HO-36 091-12HO-48 6.75 AUTO CHARGE 12.00 12.75... -
Page 5: Warranty
Vehicle Identification Vehicle Owner WARRANTY All product of Kussmaul Electronics Company Inc. are warranted to be free of defects of material or workmanship. Liability is limited to repairing or replacing at our factory, without charge, any material or defects which become apparent in normal use within 3 years from the date the equipment was shipped.
