DirecTV H10 User Manual page 2

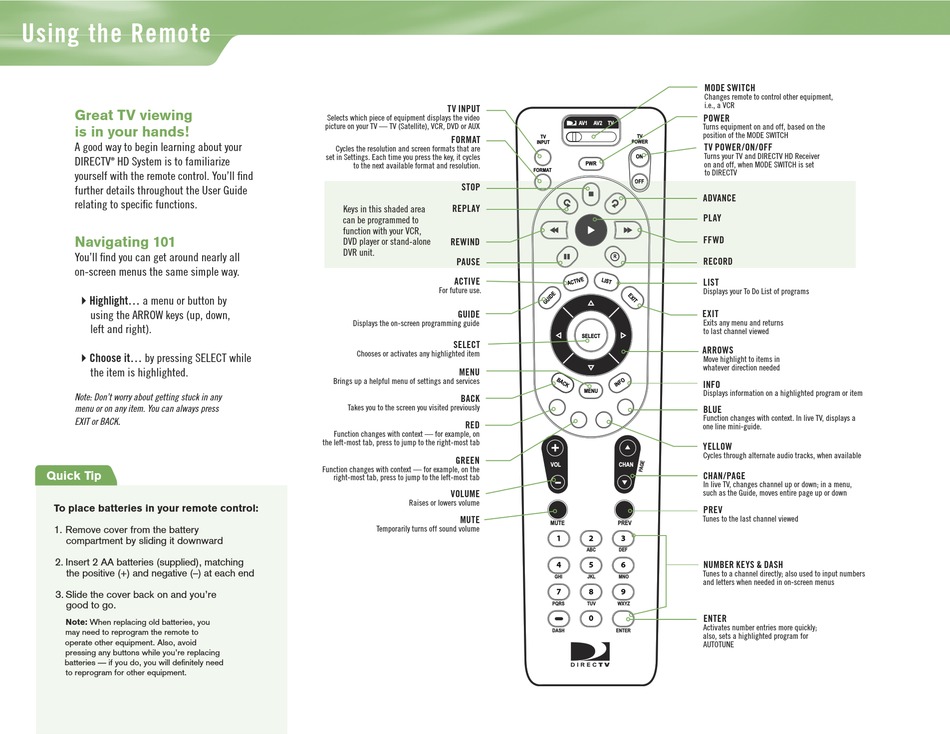

Using the Remote
Great TV viewing
is in your hands!
A good way to begin learning about your
DIRECTV HD System is to familiarize
®
yourself with the remote control. You'll find
further details throughout the User Guide
relating to specific functions.
Navigating 101
You'll find you can get around nearly all
on-screen menus the same simple way.
4Highlight... a menu or button by
using the ARROW keys (up, down,
left and right).
4Choose it... by pressing SELECT while
the item is highlighted.
Note: Don't worry about getting stuck in any
menu or on any item. You can always press
.
EXIT or BACK
Quick Tip
To place batteries in your remote control:
1. Remove cover from the battery
compartment by sliding it downward
2. Insert 2 AA batteries (supplied), matching
the positive (+) and negative (–) at each end
3. Slide the cover back on and you're
good to go.
Note: When replacing old batteries, you
may need to reprogram the remote to
operate other equipment. Also, avoid
pressing any buttons while you're replacing
batteries — if you do, you will defi nitely need
to reprogram for other equipment.
Section Name
TV INPUT
Selects which piece of equipment displays the video
picture on your TV — TV (Satellite), VCR, DVD or AUX
FORMAT
Cycles the resolution and screen formats that are
set in Settings. Each time you press the key, it cycles
to the next available format and resolution.
STOP
REPLAY
Keys in this shaded area
can be programmed to
function with your VCR,
DVD player or stand-alone REWIND
DVR unit.
PAUSE
ACTIVE
For future use.
GUIDE
Displays the on-screen programming guide
SELECT
Chooses or activates any highlighted item
MENU
Brings up a helpful menu of settings and services
BACK
Takes you to the screen you visited previously
RED
Function changes with context — for example, on
the left-most tab, press to jump to the right-most tab
GREEN
Function changes with context — for example, on the
right-most tab, press to jump to the left-most tab
VOLUME
Raises or lowers volume
MUTE
Temporarily turns off sound volume
MODE SWITCH
Changes remote to control other equipment,
i.e., a VCR
POWER
AV1 AV2 TV
Turns equipment on and off, based on the
position of the MODE SWITCH
TV
TV
INPUT POWER
TV POWER/ON/OFF
Turns your TV and DIRECTV HD Receiver
ON
PWR on and off, when MODE SWITCH is set
FORMAT
to DIRECTV
OFF OFF OFF
ADVANCE
PLAY
FFWD
R R R
RECORD
LIST
Displays your To Do List of programs
EXIT
Exits any menu and returns
to last channel viewed
SELECT
ARROWS
Move highlight to items in
whatever direction needed
INFO
MENU Displays information on a highlighted program or item
BLUE
Function changes with context. In live TV, displays a
one line mini-guide.
YELLOW
Cycles through alternate audio tracks, when available
VOL CHAN
CHAN/PAGE
In live TV, changes channel up or down; in a menu,
such as the Guide, moves entire page up or down
PREV
Tunes to the last channel viewed
MUTE PREV
1 2 3
ABC DEF
NUMBER KEYS & DASH
4 5 6
Tunes to a channel directly; also used to input numbers
GHI JKL MNO
and letters when needed in on-screen menus
7 8 9
PQRS TUV WXYZ
ENTER
0
Activates number entries more quickly;
DASH ENTER
also, sets a highlighted program for
AUTOTUNE
