Maytag MBF2556KEQ - 25.1 cu. Ft. Bottom-Freezer Refrigerator Repair Parts List Manual

Parts list
Hide thumbs Also See for MBF2556KEQ - 25.1 cu. Ft. Bottom-Freezer Refrigerator:
Table of Contents

Advertisement

Quick Links

Download this manual
Repair
Parts
List

MODEL NUMBER

MBF2556KEQ
©2005 Maytag Services
REFRIGERATOR
When requesting service or ordering parts, always
provide the following information:
- Product Type
- Model Number
- Part Number
- Part Description

Advertisement

Table of Contents
loading

Related Manuals for Maytag MBF2556KEQ - 25.1 cu. Ft. Bottom-Freezer Refrigerator

Summary of Contents for Maytag MBF2556KEQ - 25.1 cu. Ft. Bottom-Freezer Refrigerator

  • Page 1: Model Number

    REFRIGERATOR Repair Parts List MODEL NUMBER MBF2556KEQ When requesting service or ordering parts, always provide the following information: - Product Type - Part Number - Model Number - Part Description ©2005 Maytag Services...
  • Page 2 Section: REFRIGERATOR DOOR Model: MBF2556KEQ AA44-205...

  • Page 3: Refrigerator Door

    Section: REFRIGERATOR DOOR Part No. Description Series Qty 67004977 BUSHING, DOOR (WHT) 67004505 DOOR ASSY., REF. FOAM (BSQ) 67006287 SCREW, SM Note: SCREW, DOOR STOP 67003556 GASKET, REF DOOR (WHT) 67003638 CLOSURE, DOOR (WHT) 67004040 BUCKET, REF DR (MED) 67001011 HINGE, TOP (BLK) 67001013 COVER, TOP HINGE (BSQ)
  • Page 4 Section: FREEZER DOOR Model: MBF2556KEQ AA49-62...

  • Page 5: Freezer Door

    Section: FREEZER DOOR Part No. Description Series Qty 67006808 DOOR ASSY., FRZ. FOAM (BSQ) 10712401 PLUG, VENT (WHT) 67003558 GASKET, FZ DOOR (WHT) 67006867 HANDLE ASSY., DOOR (BSQ) Note: HANDLE ASSY., FRZ. DOOR (BSQ) 67006282 SCREW Note: SCREW, HANDLE 67006408 SCREW, SM *Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available...

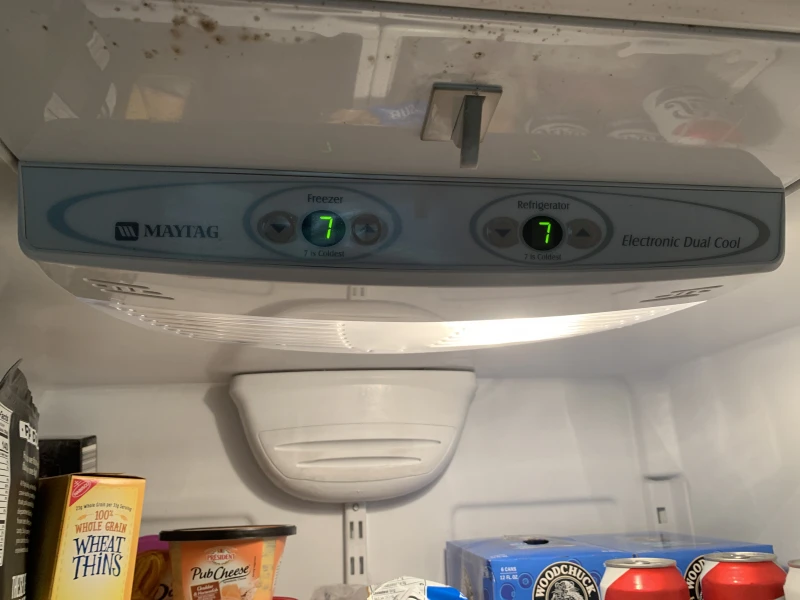

  • Page 6 Section: CONTROLS Model: MBF2556KEQ AA40-18...
  • Page 7 Section: CONTROLS Part No. Description Series Qty C3680310 SWITCH, LIGHT Note: SWITCH, LIGHT Y67003896 MODULE, LIGHT 67003897 COVER, REF LIGHT 67003898 MODULE, REF CONTROL 67006740 BOARD, CONTROL Note: (INCL. INSTR. SHEET) 67003899 COVER, DAMPER 67003900 INSERT, DAMPER COVER 67006602 SCREW Note: SCREW, DAMPER BASE 67003901 HOUSING, LIGHT 12570701...
  • Page 8 Section: REFRIGERATOR SHELVES Model: MBF2556KEQ AA46-127...

  • Page 9: Refrigerator Shelves

    Section: REFRIGERATOR SHELVES Part No. Description Series Qty 67004435 SHELF, STATIONARY 67004435 SHELF, STATIONARY Note: SHELF, DELI 67006626 SCREW Note: SCREW, GLIDE 67001053 GLIDE (RT) Note: GLIDE, DELI PAN (RT) 67001054 GLIDE (LT) Note: GLIDE, DELI PAN (LT) 67006626 SCREW Note: SCREW, GLIDE 67004512 PAN, DELI 10448903...
  • Page 10 Section: CRISPER ASSEMBLY Model: MBF2556KEQ AA46-132...
  • Page 11 Section: CRISPER ASSEMBLY Part No. Description Series Qty 67003852 GLASS, CRISPER 67003854 FRAME, CRISPER 67004514 RAIL, CENTER CRISPER 67005864 SLIDE, HUMIDITY CONTROL 67004515 PAN, CRISPER 67002748 BRACE, CRISPER E-CT 67004510 EXTR, FRONT CRISPER 12603701 SUPPORT, CRISPER FRAME *Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available...
  • Page 12 Section: INTERIOR CABINET/FRZ SHELVES/TOE GRILLE Model: MBF2556KEQ AA43-89...
  • Page 13 Section: INTERIOR CABINET/FRZ SHELVES/TOE GRI Part No. Description Series Qty B8381501 GASKET, DRAIN TUBE M0500703 SEAL, O RING D7753903 FUNNEL, DRAIN 67006406 SCREW, SM/HEX HEAD Note: SCREW, ADAPTER 67003486 COVER, CORNER (BSQ) 67001066 TUBE, DRAIN 67001067 CLIP, DRAIN TUBE A3076901 PLUG, BUTTON 67004013 BRACKET, DRAWER SLIDE (RT)
  • Page 14 Section: EVAPORATOR/EVAP MOTOR/FRONT ROLLERS Model: MBF2556KEQ AA43-51...
  • Page 15 Section: EVAPORATOR/EVAP MOTOR/FRONT ROLLE Part No. Description Series Qty 67006609 GRILLE, FZ AIR * 67002490 TRAY, DRIP E-CT 10623002 CLIP, EVAPORATOR 67005873 COVER, EVAPORATOR 67002492 GASKET 12606102 BOLT, ROLLER ADJ 67002227 ROLLER BRACKET ASSY 67006425 SCREW, SM 67006573 SCREW 10547002 CLIP, DRIER B2150504 DRIER...
  • Page 16 Section: COMPRESSOR/COND MOTOR/REAR ROLLERS Model: MBF2556KEQ AA41-60...
  • Page 17 Section: COMPRESSOR/COND MOTOR/REAR ROLLE Part No. Description Series Qty 67006432 SCREW, SHOULDER Note: SCREW, COMPRESSOR MTG. 12002634 KIT, COMPRESSOR Note: COMPRESSOR 67006433 SCREW Note: SCREW, GROUND 67005560 OVERLOAD/RELAY W/CAPACITOR 67004464 PAN, DRAIN 67003493 GROMMET, COMPRESSOR 61003210 SEAL Note: SEAL, CONDENSER SHROUD 67004432 MOTOR, CONDENSER FAN 67006425...
  • Page 18 Section: CABINET BACK Model: MBF2556KEQ AA41-61...

  • Page 19: Cabinet Back

    Section: CABINET BACK Part No. Description Series Qty 67006101 COVER, MC BACK 12479803 COVER, WATER VALVE 67006425 SCREW, SM Note: SCREW, COVER 67006662 SCREW Note: SCREW, WATER VALVE B5759649 GASKET, MC BACK 67003729 TUBE, PLASTIC 67003796 FIBER, ACOUSTIC 67003753 VALVE, WATER M0104106 CLIP M0114003...
  • Page 20 Section: ICE MAKER Model: MBF2556KEQ AA45-12...

  • Page 21: Ice Maker

    Section: ICE MAKER Part No. Description Series Qty 67002823 BRKT, ICE MAKER 61005508 ICE MAKER ASSY. 67006287 SCREW, SM Note: SCREW, ICE MAKER 67004710 COVER, ICE MAKER 95101-1 EJECTOR, ICE 95102-1 STRIPPER, ICE 95100-1 INLET, WATER 67004028 ARM, IM SHUTOFF 67006614 HARNESS, ICE MAKER 10463201...

  • Page 22: Supplemental Information

    Section: SUPPLEMENTAL INFORMATION Part No. Description Series Qty 12828151 MANUAL, USE & CARE 16025629 SVC MAN, BTM MT 16026956 TECH SHT, BTM MT 12918133 TAG, ENERGY *Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available...
  • Page 23 Section: WIRING INFORMATION Model: MBF2556KEQ 15003918...
