- Page 1 CABINET PARTS REFRIGERATOR For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 (White) (Black) (Bisque) 4−09 Litho In U.S.A. (mat)(bay) Part No. W10268086 Rev.A...
-
Page 2: Cabinet Parts

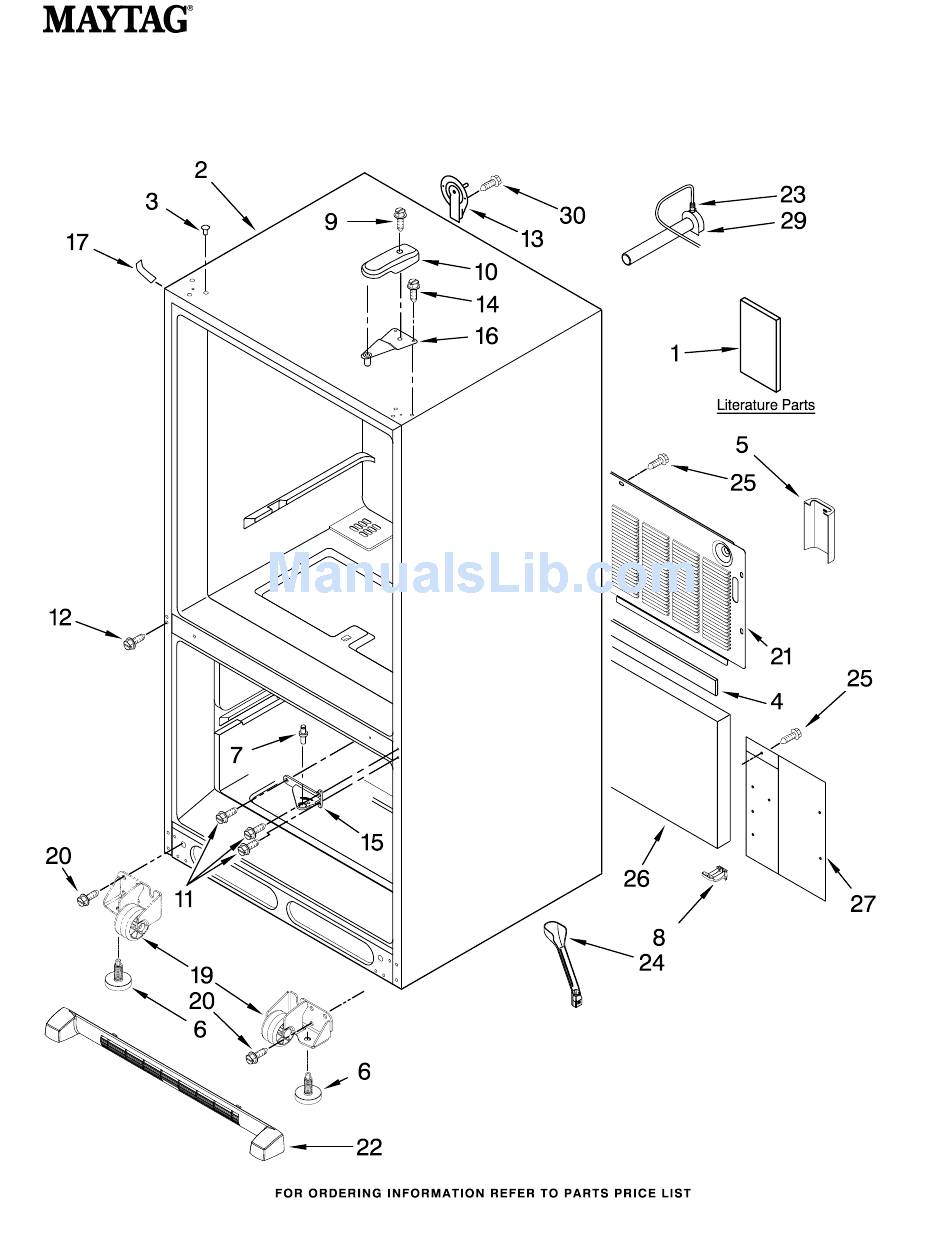

For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 Illus. Part DESCRIPTION Literature Parts W10175446 Use & Care Guide W10183257 Energy Guide W10238840 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) M0310729 White M0310731 Black M0310738 Bisque B5759655 Gasket 5 W10208592 Guard, Water Valve... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 (White) (Black) (Bisque) W10268086... - Page 4 FREEZER LINER PARTS For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 (White) (Black) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam (2) 12002497 Gear (2) (Includes RH & LH) 12804901 Cover, Light 5 12812902WD Shaft 12570701V Socket, Light 12990521 Screw (8) 9 W10194422V Bulb, Light 12476401V Housing, Frz.
-
Page 5: Freezer Door Parts
For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 Illus. Part DESCRIPTION Door, Freezer 13092202WQ White 13092202BQ Black 13092202QQ Bisque W10268086 FREEZER DOOR PARTS (White) (Black) Illus. Part DESCRIPTION Handle, Door W10119651N White W10119653N Black W10119652N Bisque (Bisque) Illus. Part DESCRIPTION Gasket, Door W10164036 White... -
Page 6: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 12806301 Bracket, Control and Lights 12816502N Overlay 12806406 Housing, Electronic Control 12868513 Board, Control 6 C3680310V Switch, Light (White) (Black) Illus. Part DESCRIPTION 12806501 Cover, Light... -
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 (White) (Black) (Bisque) W10268086... - Page 8 REFRIGERATOR DOOR PARTS For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 (White) (Black) Illus. Part DESCRIPTION Door, Refrigerator 12658530WQ White 12658530BQ Black 12658530CQ Bisque Screw (4) 12992802 White 12992803 Black M1261616 Bisque 3 12804701SP Door, Dairy 4 12369502SP Tray, Dairy 12801902 Bucket, Medium (4)
-
Page 9: Unit Parts
UNIT PARTS For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 (White) (Black) (Bisque) W10268086... - Page 10 For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 Illus. Part DESCRIPTION 12992301 Screw 12825803 Blade, Fan 3 W10210983 Basepan 12990511 Screw 6 W10217745 Tube, Discharge 7 W10224241 Harness, Evap Heater 8 W10189185 Pan, Drain 9 W10216919 Screw, Shoulder 12729128 Evaporator Heater 11 W10174384 Strap, Bale...
-
Page 11: Shelf Parts
SHELF PARTS For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 (White) (Black) (Bisque) W10268086... - Page 12 SHELF PARTS For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 (White) (Black) Illus. Part DESCRIPTION 12530701 Rail, Center Crisper 2 W10231343 Trim, Crisper 12990601N Screw 12896402 Basket, Freezer (Upper) 5 W10143561 Basket, Freezer (Lower) 12463509 Shelf (4) 12990515 Screw 12530805 Slide, Humidity Control...
-
Page 13: Icemaker Parts
ICEMAKER PARTS For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 (White) (Black) (Bisque) W10268086... - Page 14 ICEMAKER PARTS For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 (White) (Black) Illus. Part DESCRIPTION 2256086 Bracket, Ice Maker 2 B5705333SP Tube, Plastic 10526702 Clamp 489276 Screw 5 W10219716 Valve−Inlet 12868001 Arm−Shut Off 12582501 Cover, Front 8 A3223101SP Insert, Tube 9 W10122527 Mold & Heater...
-
Page 15: Optional Parts
For Models: MBF2256KEW2, MBF2256KEB2, MBF2256KEQ2 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392901 Biscuit PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350930 White 350939 Black 4392901 Biscuit Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
