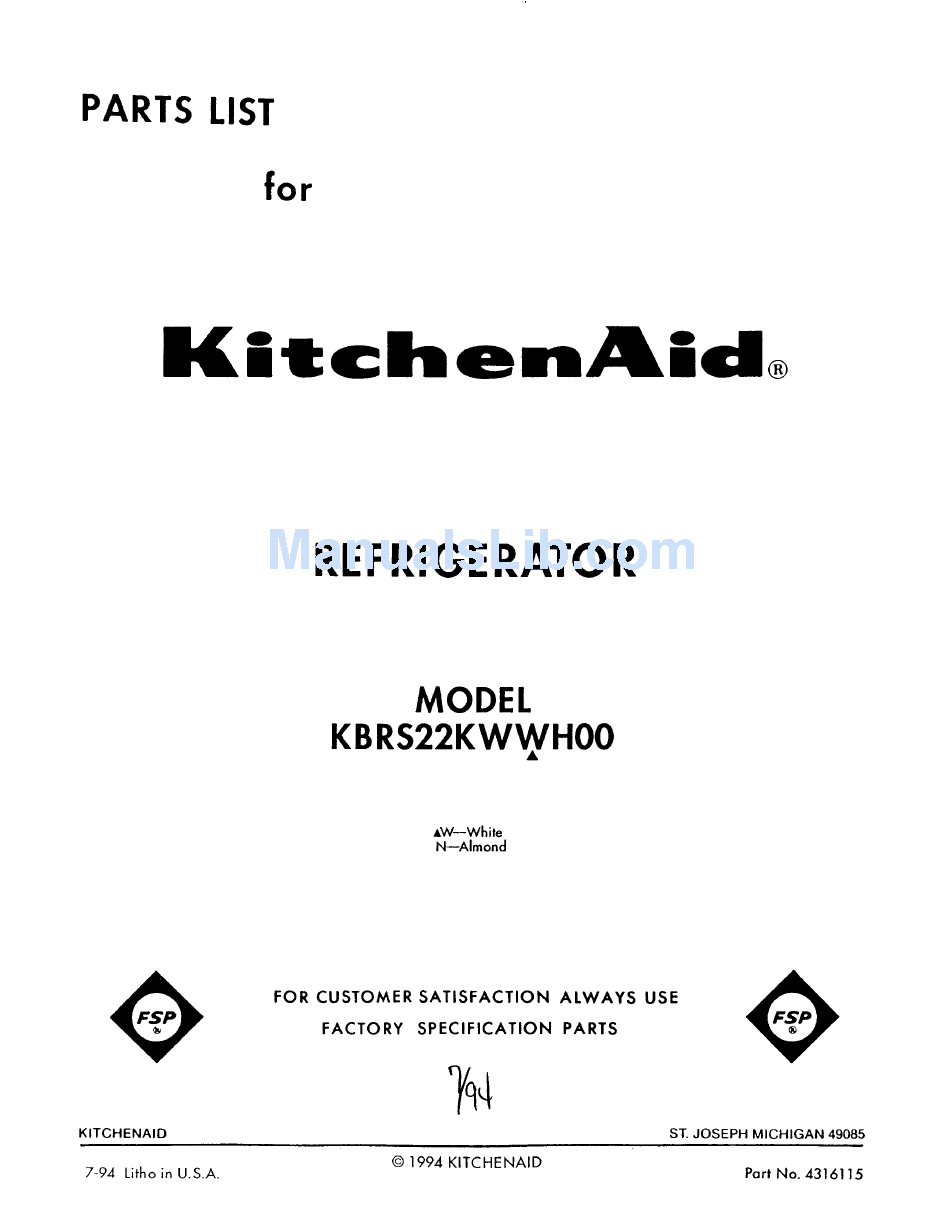

Summary of Contents for KitchenAid KBRS22KWWHOO
-
Page 3: Table Of Contents
Cabinet (Not A Serviceable Part) 2152011 Roller, Front 488681 Screw, 5/16-24 x 1-1/4 2147324 Roller, Rear (2) 489339 Screw, 1/4-28 x 1/2 (6) 489333 Screw 942768 Drain Fitting 489337 Screw (10) 1105433 Heater, Mullion 2149060 Clip, Mullion (4) 1115105 Spacer (3) Center Rail 1127242 White... -
Page 5: Screw, 5/16-24
Liner (Not A Serviceable Part) Slide, Basket 986382 Right Side 986383 Left Side 487042 Screw Shelf Track, 1114679 Right Side 1114680 Left Side 1106612 Stud (2) 1108112 Rocker Arm Switch 1127396 Electrical Shield Extension 488500 Screw, 8-32 x 3/8 2149169 Scroll, Fan 1127434 Wiring Assembly, Fan Motor... -
Page 7: Screw
1126098 Compartment Separator Assembly (Includes Center Rail and Heater Assembly) 1121213 Front, Compartment Seperator 2149098 Defrost Timer 488678 Screw, 8 x 1-3/8 (2) 946059 Light Bulb 983910 Light Lens 851067 Light Socket 1105166 Switch, Toggle 2149889 Wiring Assembly, Control Box 1102000 Cable Tie 1115076... - Page 9 1127413 Shelf, Ladder (2) 1127414 Shelf, Ladder Center 520965 Screw, Support (4) 520959 Screw, Support Center (2) 489345 Screw, 8-32 x 1-1/4 (3) 488163 Screw, 8 x 1-1/4 (3) 1126140 Shelf, Cantilever (2) 1125782 Gasket (Front) 1125897 Pan Cover Assembly 1125528 Gasket, Pan Cover (Front) 1125531...
- Page 10 Customer Touch Up Material 350942 *Primer, White (13 Oz. Spray Can) 350941 *Leveler, Enamel (13 Oz. Spray Can) 350939 *Enamel, Black (13 Oz. Spray Can) 350930 *Enamel, White (13 Oz. Spray Can) 350956 *Enamel, Almond (13 Oz. Spray Can) 72017 Brush Touch-Up Kit (White) 72107 Brush Touch-Up Kit (Almond)
-
Page 12: Tube Clamp
486692 Speed Nut 989524 Fan, Blade 1105640 Condenser Assembly 489050 Screw 548745 Clip, Wire (2) 489019 Screw, 8-32 x 3/8 1115006 Heat Shield Evaporator 510716 Tube Clamp 510769 Dampener 943322 Spring, Relay Case 1105055 Case, Relay 2147065 Overload 943320 Overload Spring 1101014 Relay 1118850... - Page 13 978027 Valve, Access (3/8") 978028 Valve, Access (1/2") 978029 Valve, Access (5/8") 978030 Valve, Access (3/4") 876764 Valve, Access (3/16")
-
Page 15: White
Panel, Refrigerator Door 1126103 White 1126106 Almond (Also Order Item 27) 534927 Hole Plug (2) 943185 Plate, Tap (4) 944035 Bracket, Door Stop 488921 Screw, 8 x 1/2 489028 Screw, 8-15 x 1/2 Hole Plug 844478 White 989196 Almond 1125925... - Page 16 4318414 Black Grill Kit...
- Page 18 Panel, Freezer Door (Also Order Item 21) 1110312 White 1110314 Almond Hole Plug (2) 534927 White 989197 Almond 943185 Plate, Tap (4) 944036 Bracket, Door Stop 488921 Screw, 8 x 1/2 489028 Screw, 8-15 x 1/2 Hole Plug 844478 White 989196 Almond 1125924...
