NOVAK ATOM AND CYCLONE ESC Manual page 6

STEP 1: Changing the Input Harness (continued)
• If you have an Airtronics/Sanwa Z-style receiver, you will
need to change the input signal harness of the Novak
speed control to the JR plug plastic. Refer to Figure 5

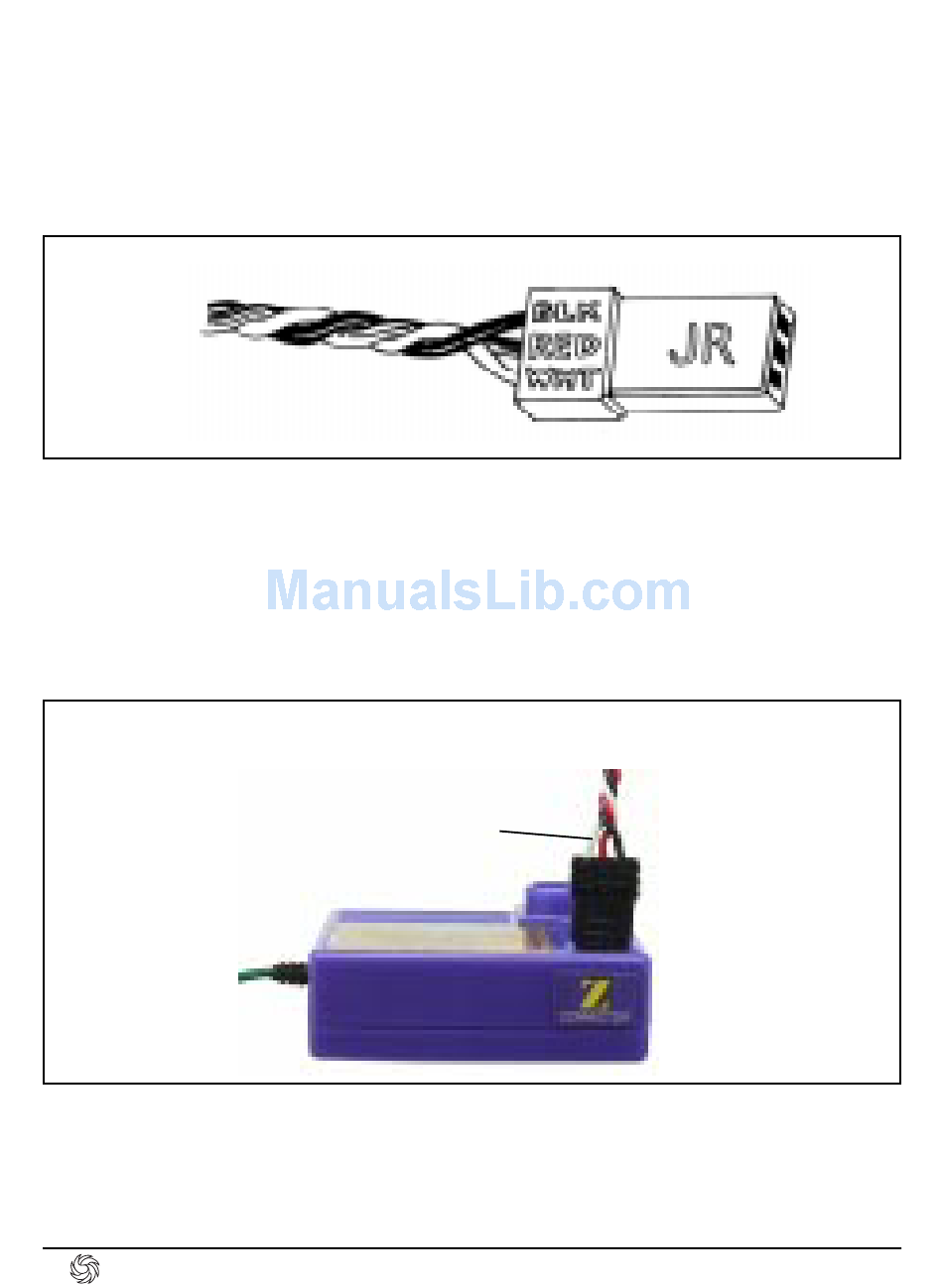

FIGURE 5 JR plug plastic
• To plug the speed control harness into the Z-style receiver,
make sure that the white (signal) wire side of of the
connector is toward the middle of the receiver.
Refer to Figure 6
FIGURE 6 JR plug plastic wired into Z-style receiver
6 CYCLONE & ATOM INSTRUCTION MANUAL
White wire towards
middle of receiver.
