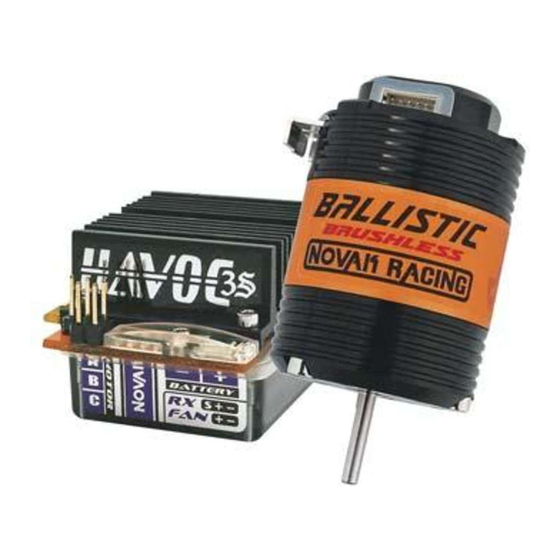

NOVAK HAVOC 3S - GEARING AND ADJUSTABLE PARAMETERS 4-2010 V2 Manual

H av o c 3 s G E a R I N G & a d j u s ta b l E pa R a m E t E R s
#55-1733P-1 Ver. 2
ATTENTION: Correct gearing is essential to getting proper performance from your brushless motor system!
P R O P E R G E A R S E L E C T I O N
motor operating temperature is the oNlY
way to properly set the vehicle gearing
the motor should be 160-175°F maX at end of run!
change the gearing to avoid overheating.
do Not FREE REv oR opERatE wItHout load!
General Gearing for 2 & 3-cell li-po or 6 & 9-cell Ni-mH use:
These recommendations are for sport or entry level setups. Stock radio equipment
and sport "stick-type" battery packs should work safely. These gearing range
recommendations are intended to provide initial safe operation.
BrUSHLESS MOTOrS
Ballistic 8.5 SS8.5 Pro
(#3608) / (#3408)
Ballistic 10.5 SS10.5 Pro
(#3610) / (#3410)
Ballistic 13.5 SS13.5 Pro
(#3613) / (#3413)
Ballistic 17.5 SS17.5 Pro
(#3617) / (#3417)
Ballistic 21.5 SS21.5 Pro
(#3621) / (#3421)
The Havoc 3S's included fan is required when using a 3S Li-Po battery pack.
Decrease the pinion tooth number by 2-3 for motors without sintered rotors.
If you do not change gearing after switching to brushless, you will be
over-geared and will have slow acceleration & excessive temperatures!
With the broad brushless power band, you can go 1-2 teeth higher pinion than listed
above for more top speed, but remember going higher will produce excessive ESC & motor
heating. Check the motor's operating temperature after making any gearing adjustments-
-motors are designed to operate from 160ºF-175ºF. If you do overheat your ESC and
motor, be sure to allow it to cool for several hours and install a smaller pinion gear.
FOr rTr kITS:
Most car kits include a pinion gear that is generally sized for mild motors and is
fairly large. To be safe, replace the installed pinion gear with one that is about 3
to 5-teeth smaller. Most stock spur gears are safe to use.
FOr TrAXXAS® SLASH™:
With a Novak 8.5-turn brushless motor installed, the RTR kit's included 18-tooth
and 23-tooth pinion gears will provide speeds above 40 mph with various
battery packs. For more specific speed run information and tips to reaching
higher speeds, please visit the Novak Web site.
T H R O T T L E P R O F I L E S
The Havoc 3S has the ability to run on either two or three-cell Li-Po
NOTE:
batteries via Novak's auto detect software. When Li-Po circuitry is active
(see programming on reverse side to turn ON/OFF), it automatically switches
to the proper Li-Po cut-off voltage for the battery packs you connect.
BrUSHLESS PrOFILE
w/reverse
reverse%
Programmable
Minimum Brake%
Drag Brake
Dead Band%
Minimum Drive%
Throttle Curve
Brake Frequency
Motor rotation
Li-Po Cut-Off
The Havoc 3S ESC reverts back to default settings when One-Touch set-up is performed.
the Havoc 3s Esc is fully programmable, refer to page 6 for fine-tuning options.
PINION GEAr PINION GEAr
w/ 2S w/ 3S
15 – 20-tooth 10 – 15-tooth
17 – 22-tooth 12 – 17-tooth
20 – 27-tooth 15 – 22-tooth
25 – 30-tooth 20 – 25-tooth
28 – 33-tooth 23 – 28-tooth
BrUSH-MODE
1 2
on on
100% 100%
yes yes
0% 0%
off off
6% 6%
1% 1%
expo linear
4 kHz 3 kHz fixed
CCW Q N/A
on on
T H R O T T L E C U R v E S E L E C T I O N
100%
Linear
0
Trigger Position
L I - P O D E T E C T & C U T- O F F
This ESC is compatible with 2-3S Li-Po or 4-9 Ni-MH cells. Novak's exclusive
Smart-Stop Li-Po Cut-Off Circuitry is built-in and when active (see program-
ming on reverse side to turn ON/OFF), it automatically switches to the proper
Li-Po cut-off voltage for the battery packs you connect.
ESC's factory default is ON for Li-Po Cut-Off Circuitry
This circuitry lets you safely use 2S or 3S Lithium Polymer battery packs by
cutting off the speed control's throttle output when a critical safety voltage
is reached (6.25V for 2S and 9.375V for 3S).
The circuitry constantly monitors the pack voltage. When it gets close to
the critical safety voltage it begins interrupting, or "blipping," the throttle
output as an early warning that the battery's voltage is getting low and the
throttle output will soon be completely shut off.
When the critical voltage is reached, the throttle output to the motor gets
completely shut down to keep the voltage from dropping further (Red & Green
LEDs will alternately flash & you still have steering control).
Re-charge battery after smart-stop circuitry shuts off throttle.
Even though the pack's voltage will rise (after a short resting period) to a level
high enough to run the motor again, this is not good for Li-Po batteries.
Reaching the critical safety voltage too many times can damage the cells.
do Not coNtINuE to RuN vEHIclE aFtER tHE lI-po cut-oFF
Has sHut dowN tHE tHRottlE output FoR tHE FIRst tImE.
During power-up when the ESC is switched ON, the Amber & Red LEDs will flash
together 2 times for 2S or 3 times for 3S packs to indicate Li-Po Cut-Off is ACTIVE.
With the Li-Po Cut-Off turned ON & using Ni-Cd or Ni-MH cells, the circuitry will shut off the ESC's
throttle output, due to the different characteristics of these batteries. To deactivate software, see page 6.
M O T O R R O TAT I O N S E L E C T I O N
The Havoc 3S software lets you reverse a brushless motor's rotation
direction (see reverse side of this sheet to select rotation). This allows installation
in vehicles with counter-rotating drive trains (or opposed transmissions),
without compromising performance. Because the ESC will be operating
in its normal forward & reverse modes, features like Smart Braking
continue to operate normally.
www.teamnovak.com
*At the time of printing, the Traxxas® Slash™ RTR kit included an 18-tooth and a
23-tooth pinion gear.
Slash™ is a registered trademark of Traxxas®.
P5
Novak's Throttle Curve adjustment
allows drivers to tailor the throttle
response of a vehicle, creating either
a quick burst of power with the
Linear Curve setting, or a smoother,
controlled low-end power delivery
with the Expo Curve setting.
Expo
Setting is fixed at "Linear" in
Brush Mode. The Throttle Curve
is selectable in Brushless Mode.
100%
4-2010
